FLAME / Dualkey

Outputs two AD/AR type envelopes. Loop and trigger delay are possible.

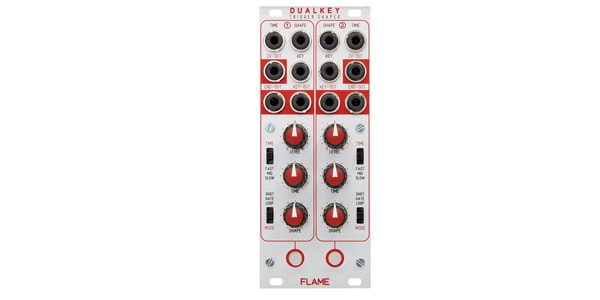

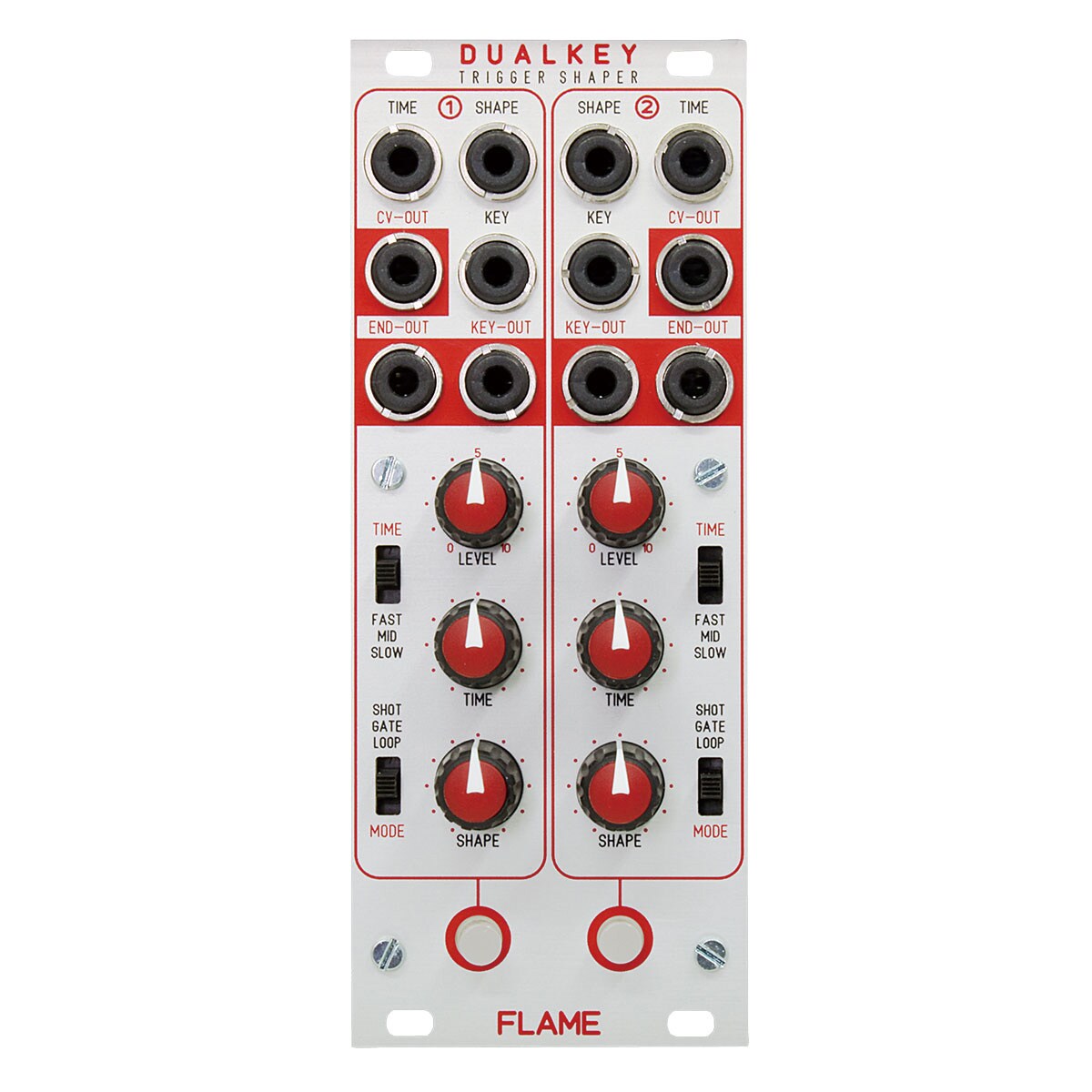

DUALKEY is a small dual-pingable trigger envelope module. It can use two different functions simultaneously, such as A(H)D envelope, A(S)R envelope, function generator that outputs periodic CV like an LFO, and trigger delay. It is triggered by an external trigger/gate input or by pressing the KEY button on the bottom of the unit.

Functions of each parameter
SHAPE: Control of AR envelope by external CV (Release phase is Log curve on channel 1, linear curve on channel 2)
TIME: Time control of AR envelope by external CV
LEVEL: Control of AR envelope output level
END-OUT: Output trigger at the end of envelope cycle (can be used like trigger delay)
KEY-OUT: Key trigger/gate output
KEY-IN: Trigger input for pingable envelope
Play mode
SHOT: Plays one cycle of envelope
GATE: Holds while gate is input, plays release phase when released
LOOP: Loops envelope while gate is input (can be used like LFO)
Width: 10HP
Depth: 50.5mm
Current consumption:
+12V: 40mA
-12V: 5mA
