FLAME / Automix

A mixer that records and plays back 60 seconds of knob movements that set the amount of three audio/CV channels.

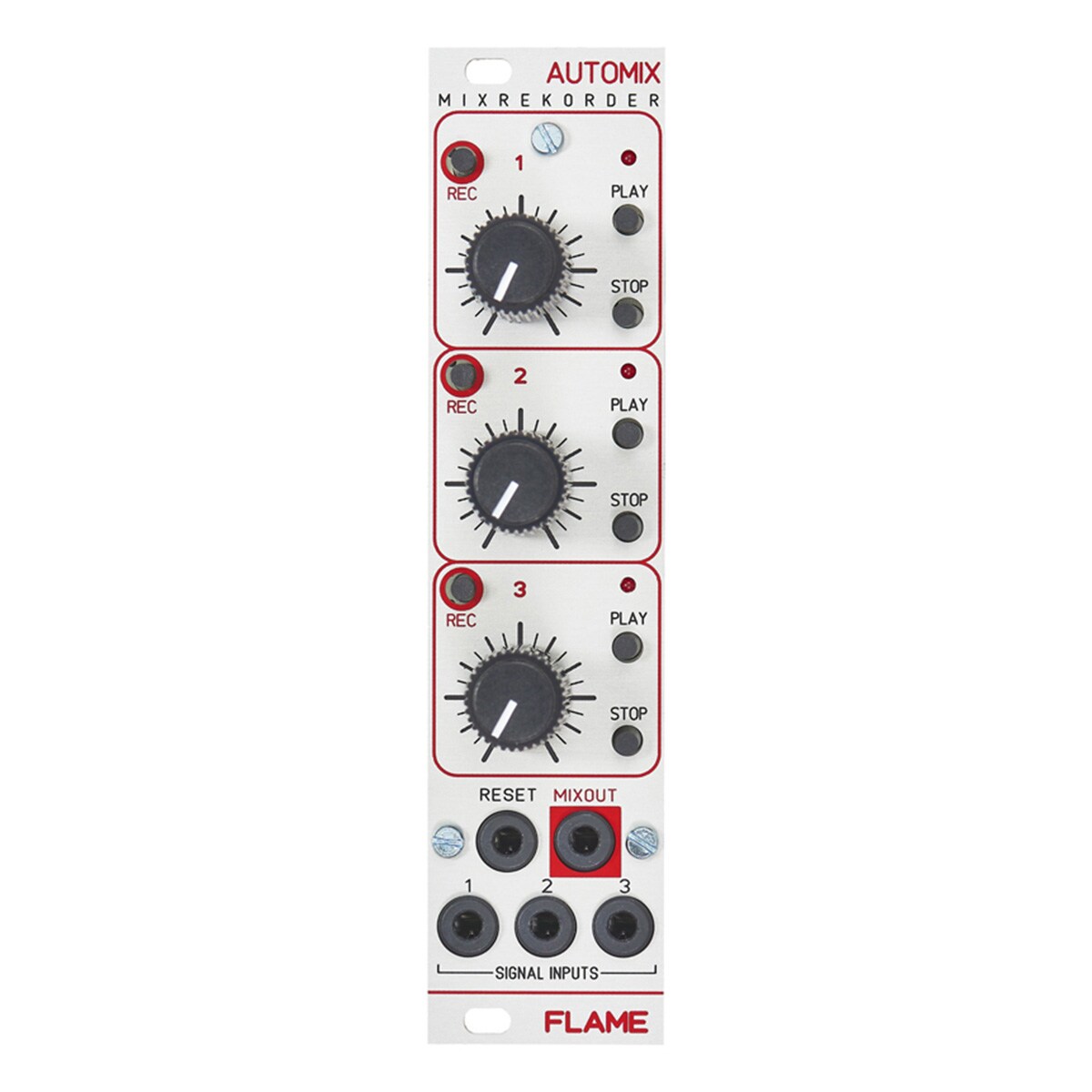

AUTOMIX is a 3-channel mixer with record/playback knob movements.

It can handle audio and CV, and the input voltage range is up to +-5V. The mix level of each track is adjusted using the knobs. Press the REC button on each track to record knob movements for at least one minute each. Recorded knob movements can be played back as one shot by pressing the PLAY button, or looped by holding down the PLAY button.

The three inputs can be individually switched to +6dB audio levels using the slide switches on the back of the module.

A RESET input is provided to reset the playback position of all three tracks.

Recorded knob movements can be permanently stored even when the power is turned off by inserting the included CR2032 button cell battery into the socket on the back of the unit.

Width: 6HP
Depth: 40mm
Current consumption +12V:
40mA
-12V: 10mA
Notes: Includes CR2032 button battery for memory backup
