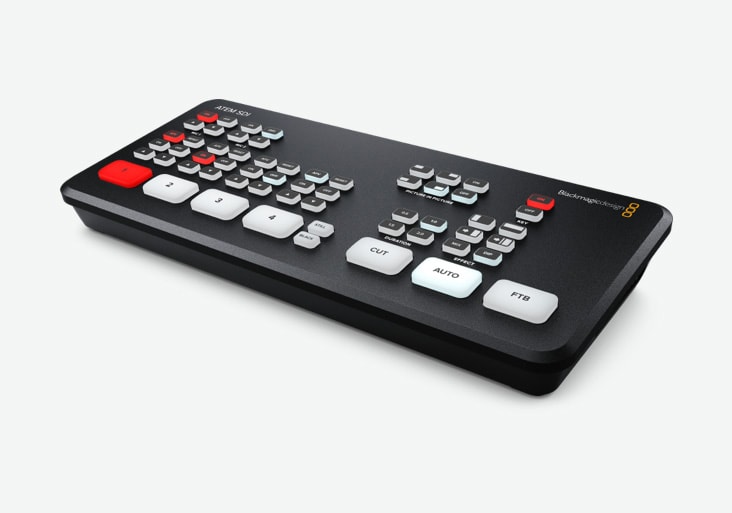

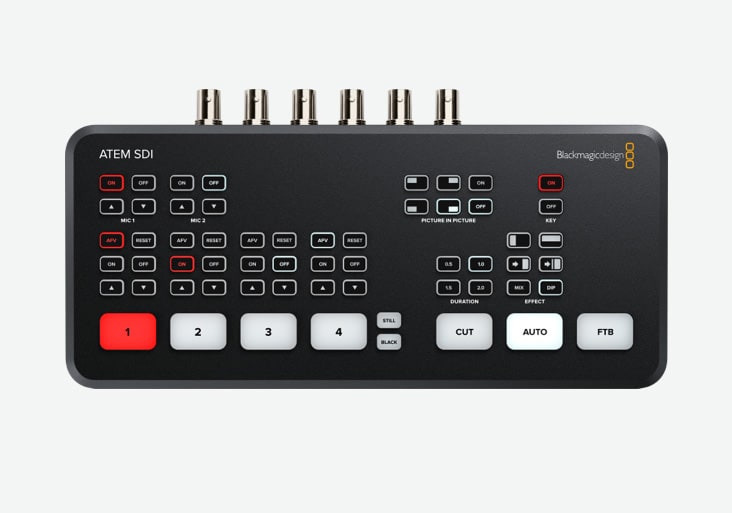

Blackmagic Design / ATEM SDI

[Domestic regular product] A live production switcher equipped with 4 SDI inputs, USB webcam output, and 2 SDI outputs that support format conversion functions.

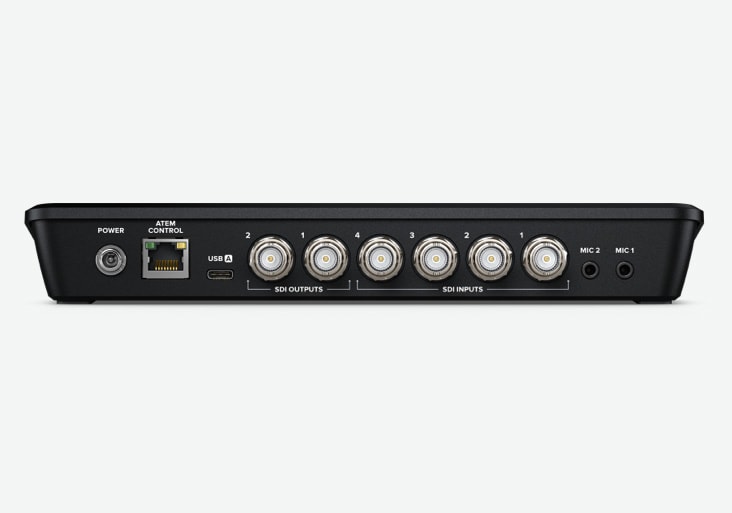

【connection】
■ Video input total: 4
■ Output total: 3
■ Aux output total: 2
■ Audio input total:
3.5mm stereo minijack x2
■ Audio output total:
Not supported, embedded audio only
■ Time code connection:
Not compatible
■ SDI video input:
3G-SDIx4 (10-bit HD switchable)
2ch embedded audio
■ Video input resynchronization:
Supports all 4 SDI inputs
■Frame rate/format converter:
Supports all 4 SDI inputs
■ SDI program output: 2
■Ethernet:
Ethernet supports 10/100 BASE-T
* Software control, software update, direct/network panel connection
■ Computer interface:
USB Type C 2.0x1
* For webcam output, software control, software update, panel connection

【format】
■ HD video input format:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25
1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50
1080i59.94, 1080i60
■ HD video output format:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50
1080p59.94, 1080p60
■ Video distribution format:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
■ Ultra HD video format:
Not compatible
■ Video sampling: 4:2:2 YUV
■ Color accuracy: 10-bit
■ Color space: Rec.709
■ Color space conversion:
hardware-based real-time
【audio】
■ Audio mixer:
2-channel mixer x6 inputs.
Select On/Off/Audio-Follow-Video per channel, adjust gain control per channel
Measures levels and peaks, plus new Fairlight audio enhancer
*Compressor, gate, limiter, 6-band parametric EQ), master gain control
■Analog input: unbalanced stereo
■ Analog input delay: Maximum 8 frames
■ Input impedance: 1.8k
■ Maximum input level: +6dBV
■ Plug-in power microphone:
Compatible with both 3.5mm mini jacks
[Media player]
■ Media player: 1
■ Channel:
Fill & Key for each media player
■ Still image capacity of the media pool:
20
* With Phil & Key
■ Still image format of the media pool:
PNG, TGA, BMP, GIF, JPEG, TIFF
■SIZE: 237.5(W)x35(H)x118.8(D)680g
