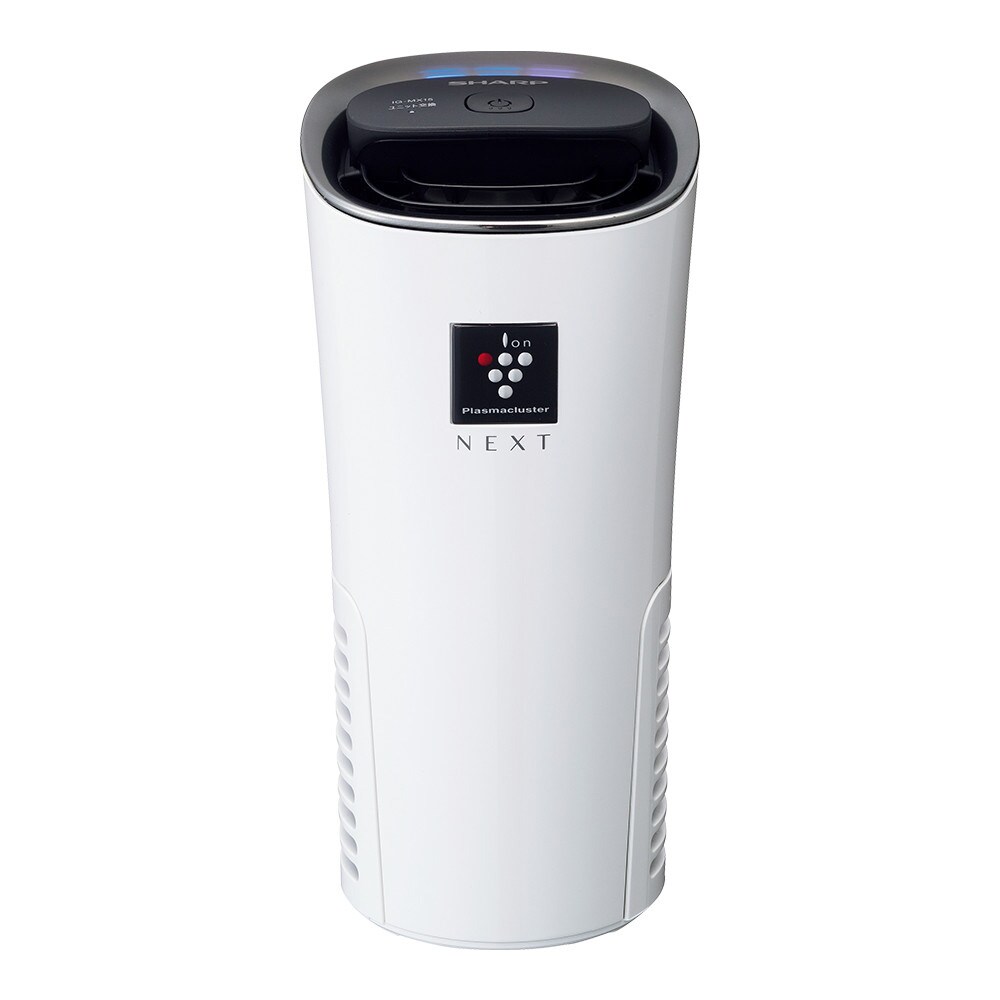

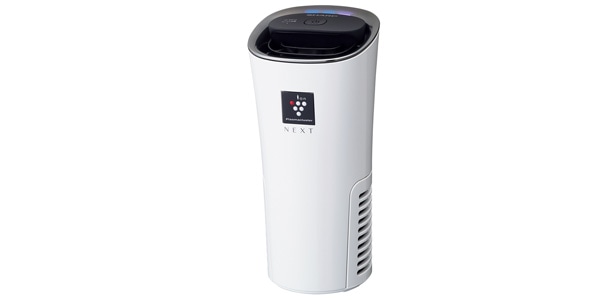

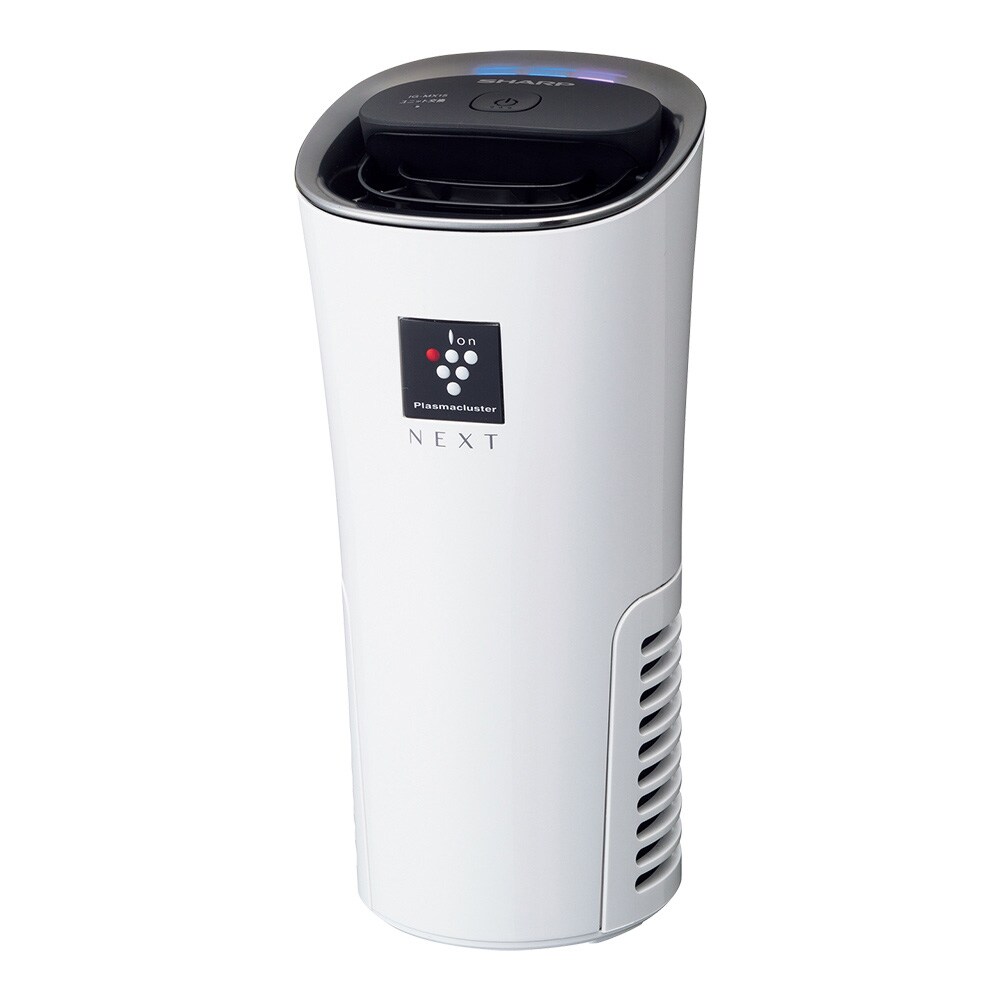

SHARP / IG-MX15W Plasmacluster ion generator

An ion generator that is convenient for creating a comfortable environment using Sharp's proprietary technology. The battery-powered compact body can be easily installed in your own room, in the car, or in the office.

■ Plasmacluster ion generator

Ion generator's first model with 1 Plasmacluster NEXT
*1 For products equipped with our Plasmacluster.

Equipped with plasma cluster NEXT
By increasing the ion concentration by approximately 20%*1 compared to conventional models, we have demonstrated new effects in addition to improved deodorizing effects.
*1 Comparison of the ion concentration of the air volume "Turbo Plus" and the ion concentration of the 2019 ion generator air volume "Turbo" (75,000 / cm?).

Speedy deodorization with "Omakase operation"
Eliminates odors by intensively emitting Plasmacluster ions for about 25 minutes. After that, keep the inside of the car in a comfortable space with "Medium" driving.

Equipped with a USB power supply, you can use it at home or in the office
Power can be supplied to this unit with the included USB cable, so if you use a commercially available mobile battery*13, you can use it even in places without an outlet. Also, if you use it on your desk at home or in the office, you can expect a moisturizing effect*14 on your skin.

*13 When the mobile battery has a capacity of 5,000mAh (rated: 5V 2.4A), it can be used for about 12 hours with "Turbo Plus" operation (The operating time may vary depending on the usage of the mobile battery and the usage environment of the product. it's different). ●Use a mobile battery with the PSE mark. ●Refer to the user's manual for the mobile battery, and use it in a safe place and environment. ●Do not use the mobile battery in extremely hot places such as in a car, or in dusty environments such as outdoors. ●Do not place combustible items such as clothing near the mobile battery. ●Even PC/USB ⇔ AC conversion adapter is available.

2-port USB car adapter included*15
You can charge your smartphone or other device at the same time while using this unit.

Collects even pollen and fine dust
Equipped with a pollen catch filter, approximately 80%*16 of pollen and fine dust (approximately 10 m or more) are collected.

Low noise and low power consumption design
Low noise design considering use in a quiet car. It can be used comfortably even in a quiet car such as a hybrid car. Operation noise and power consumption at maximum air volume are reduced by approximately 10% compared to our conventional models. *17*18

*14 ●Test institute: Institute of Medical Science, Inc. ●Subjects: 24 people (women aged 27 to 64) ●Temperature: approx. 25°C ●Humidity: approx. Measure the amount of skin moisture around the eyes of the subject. ■Test results: Moisturizing effect confirmed after about 30 minutes of operation.
*15 When Plasmacluster ion generator is connected to the car adapter, you can connect a device with 1.5A or less to the other connection port.
*16A filter that collects about 80% (according to our research) of "pollen" and "dust" larger than about 10?m (cedar pollen size: about 30?m). It differs from the Japan Electrical Manufacturers' Association standard (JEM1467).
*17Comparison of the new product 33 dB (during "Turbo Plus" operation) and our previous model (2019 model ) 36 dB (during "Turbo" operation).
*18Comparison of the new product 1.4W (at "Turbo Plus" operation) and our conventional machine (2019 model ) 1.6W (at "Turbo" operation).
*19 The deodorizing effect varies depending on the type and strength of the odor and the material of the object.

■ Basic specifications
Power supply Car adapter (DC12V)*1
Plasmacluster applicable volume (approximate)*2 Approx. 3.6m?
Operation mode Air volume "Turbo Plus" Air volume "Medium" Air volume "Silent"
Power consumption*3 1.4W 0.8W 0.6W
Driving sound 33dB 25dB 18dB
Filter pollen catch filter

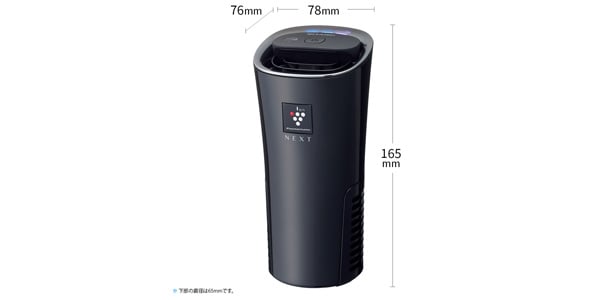

External dimensions Upper part 78 x 76 mm Lower part diameter 65 mm x Height 165 mm
Weight Approx. 295g (excluding accessories)
Power cord length about 1.5m
*1 This unit is compatible with general passenger cars using DC12V battery. Cannot be used with vehicles using DC24V batteries (buses, trucks, etc.). In addition, it may not be installed depending on the car model.
*1 This unit is compatible with general passenger cars using DC12V battery. Cannot be used with vehicles using DC24V batteries (buses, trucks, etc.). In addition, it may not be installed depending on the car model.
*2 This is a guideline for the applicable volume where the product can be placed in the cup holder next to the driver's seat and the effect* of Plasmacluster NEXT can be expected during "Turbo Plus" operation. *See above for details.
*3 Power consumption when using a car adapter.
This product requires periodic replacement of the Plasmacluster Ion generating unit in order to stably emit high-concentration Plasmacluster ions. Total operating time is approximately 17,500 hours regardless of the operating mode used. All operations will stop after about 19,000 hours.
