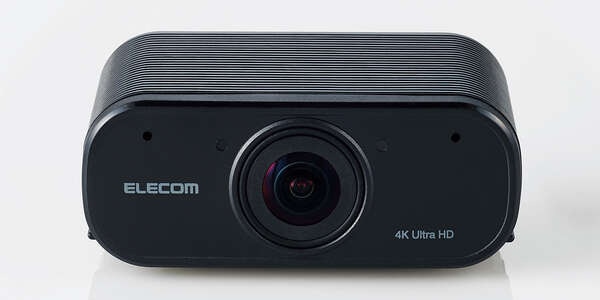

ELECOM / UCAM-CX80FBBK

This is a high-grade web camera that supports 4K, and is equipped with functions that are useful in meetings and business negotiations, such as high image quality of 8.3 million pixels and DOL-HDR technology that optimally adjusts light and dark.

■ Compatible models:
Windows OS, macOS equipped with USB 3.0 port
■ Compatible OS (Windows): Windows 11/10/8.1
■ Compatible OS (mac): macOS 11.4 BigSur
*Updating to the latest version of each OS or installing a service pack may be required.
*Compatibility information is based on the time of operation confirmation in our verification environment.
We do not guarantee complete compatibility with all devices, OS versions, applications, etc.
■ Operating environment:
CPU: Intel(R)Core(TM)i3 1.2GHz or higher, Main memory: 1GB or more, HDD free space: 1GB or more
*In addition to the above, the required environment for various software used simultaneously must be met.
■Image sensor: 1/2.8-inch stacked CMOS sensor
■Effective pixels: Approx. 8.3 million pixels
■Colors: Approx. 16.77 million colors (24-bit)
■Still image recording pixels: Max. 33.2 million pixels (supported by software processing)
■Video recording pixels: Max. 3840x2160 pixels
■Maximum frame rate:
60FPS (up to 1920x1080 pixels) 30FPS (up to 3840x2160)
*Limited to 30FPS when connected to a computer via USB-A.
■Shooting angle: When distortion correction is disabled: 130 degrees diagonal, when distortion correction is enabled: 100 degrees diagonal
■Lens configuration: 5 groups, 6 elements
■Lens F value: F2.8
■Focus method: Fixed focus
■Shooting distance: 30 cm to infinity (from the tip of the lens)
■Stand angle adjustment: Up and down
■Operation indicator lamp: Yes (lights up when shooting)
■Camera body interface:
USB3.0-A or USB3.1 USB Type-C(TM)
■Camera body cable length: 2.2 m
■Built-in microphone method:
Digital silicon MEMS method (stereo)
■Built-in microphone directivity: Omnidirectional
■Camera body color: Black
■SIZE: Approx. 72.0 mm (W) x 30.5 (H) x 50.1 (D) mm *Cable not included
■Camera body weight: Approx. 125 g *Cable not included
■Accessories:
Cable [USB Type-C(TM) to USB Type-C(TM) (2.2 m)]
Cable [USB Type-C(TM) to USB-A (2.2m) 】
Privacy shutter
