TEENAGE ENGINEERING / TX-6 mixer

The TX-6 Field Mixer is an ultra-portable mixer and audio interface.

“Elegant” multitrack functionality
The TX-6 is a 6-channel stereo mixer, or 12-channel mono, with built-in equalizers, filters, compressors, aux sends, cues, and digital effects. This ultra-portable mixer can also be used as a versatile USB audio interface.

Many functions in a small housing
The first portable professional mixer that can be used as a 32bit/48kHz multifunctional audio interface. You can use the built-in synthesizer and sequencer, or control it with an external MIDI device.

With an instrument tuner and built-in sound sources (4 waveforms, 4 drum machine sounds), it's packed with fun features to help you make music on the go.

smallest possible size
The TX-6 is encased in durable aluminum and features custom-made encoders and faders. A rechargeable battery lets you take the TX-6 anywhere from home to the studio.

【feature】
6 stereo inputs
3 stereo outputs

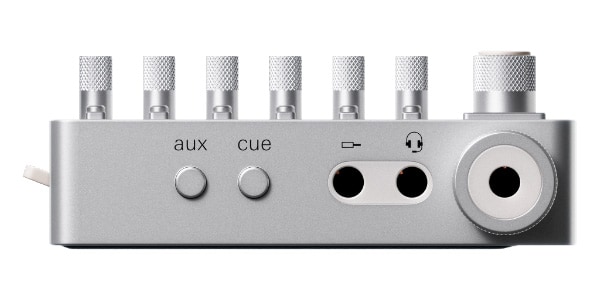

[Input/output terminals]
32bit/48kHz USB interface
3.5mm mini jack to 6.3mm jack
headset mic input
AUX output
Connect with iPhoneR with Lightning cable
Each input is stereo or mono
Headset Mic Support - USB Audio/Midi
Built-in effects
Bluetooth low energy - OLED display
rechargeable battery

[Input/output terminal]
32bit/48kHz USB interface
3.5mm mini jack to 6.3mm jack
headset mic input
AUX output
Connect with iPhoneR with Lightning cable
Each input is stereo or mono

[Dimensions/Weight]
90 mm (102 mm with adapter) x 62 mm x 23 mm
160g / 5.6oz

【Characteristic】
audio input
Impedance 10kOhm
Analog gain 0-42 dB
Maximum level 8dBu, 2Vrms
TLV320ADC3140 burr-brown
SNR?102dBA
Audio output (Main and Aux)
Maximum level 8 dBu, 2 Vrms
Cirrus logic masterhifi CS43131
SNR>120dBA
Audio output (CUE)
Maximum level 2dBu, 1Vrms
Cirrus Logic CS47L35
SNR>110dBA

[Maintenance items]
Ambient operating temperature: 0-50°C (32-122°F)
Storage Ambient Temperature: 0-30°C (32-86°F)
Use pressurized air to remove dust adhering to the faders.
To keep the battery healthy, the device should be charged at least every 6 months.
