Critter & Guitari / EYESY

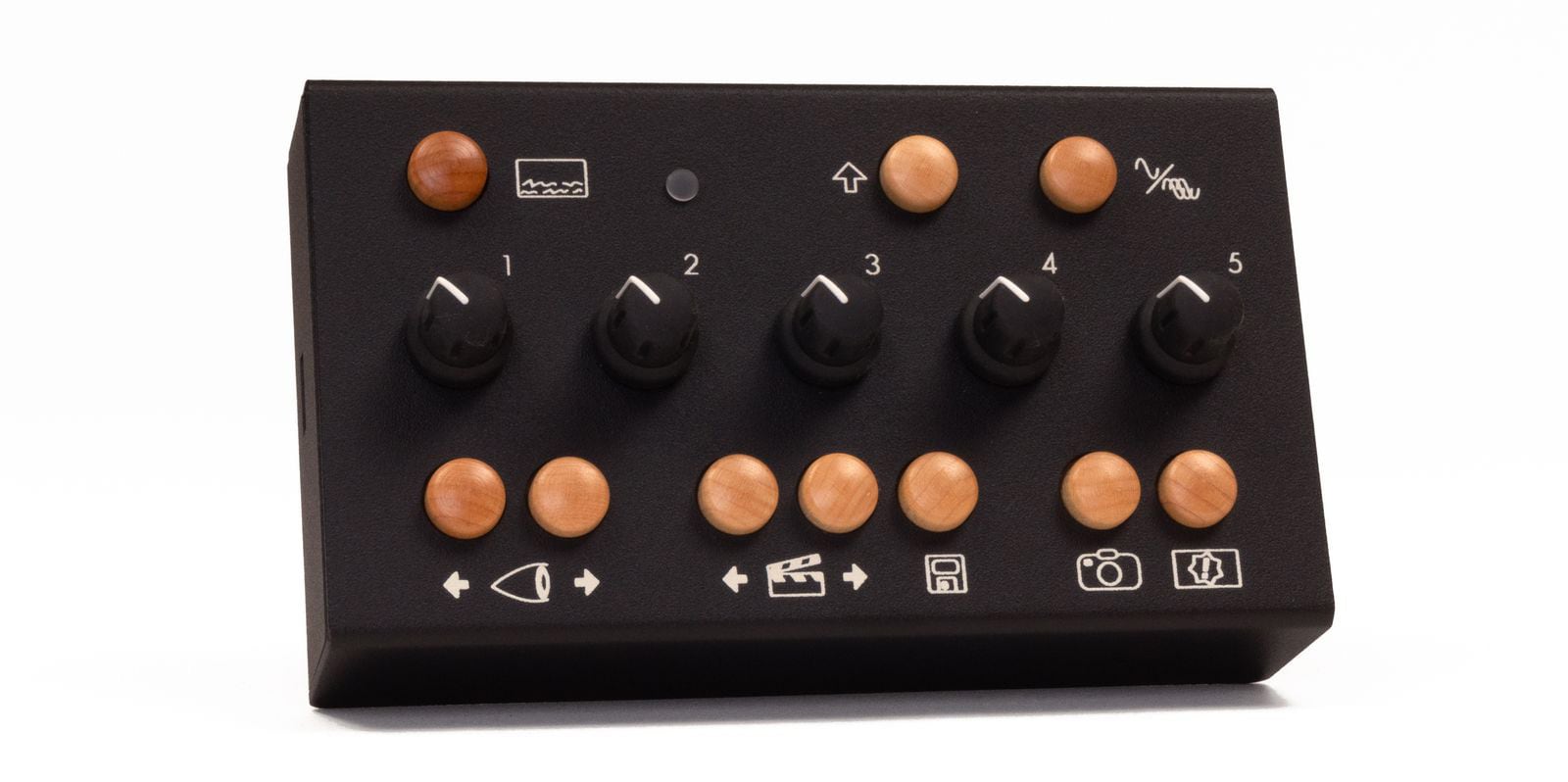

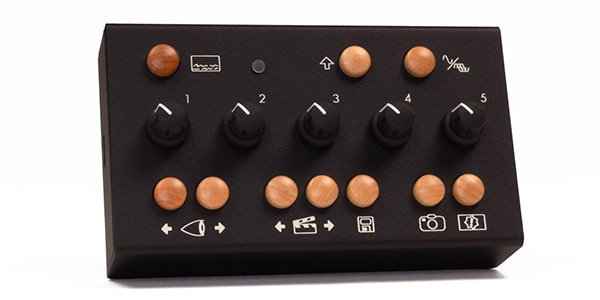

Critter&Guitari EYESY is a video synthesizer with creative expandability.

Critter&Guitari EYESY is a compact video synthesizer that can create visuals synchronized with music!

EYESY has a number of pattern generators called modes that you can create any visual pattern by simply navigating, adjusting and collaging them. Modes can be made to respond to audio devices in various ways, and images synchronized to music can be output from HDMI or RCA (composite) terminals.

EYESY comes with a variety of modes already installed, but since it is a Python-based open source design, you can easily add new modes or modify/develop your own modes. Also, many modes developed by the user community are available for download.

In addition, it is equipped with various functions such as scene capture and saving, MIDI support, web editor and coding, WiFi connection, etc.

EYESY is a video computer with infinite possibilities that connects music and images.

DESIGN / SPECS

Video Output:
NTSC (Composite (RCA) video output)
PAL (Composite (RCA) video output)
720p (HDMI video output)
1080p (HDMI video output)
Input:
1/4" Stereo audio input
MIDI Input: 1/8” TRS-MIDI Jack
MIDI Input: USB-MIDI (class compliant device)
Processing:
Raspberry Pi (Module 3) computer
1.2GHz processor
1GB RAM

Physical Characteristics:
Size: 15.24 x 8.9 x 5.6 cm (body size including knobs)
Aluminum (powder coated) housing
rubber foot
Included Items:
Included Power Supply: Input: 100-240VAC @ 50/60Hz. Output: 9VDC, 1.3A, Polarity: Center positive (TIP=+). Included USB-WiFi adapter (Ralink 5370 Chipset, 2.4GHz)
Included Storage:
A microSD card stores the operating system and modes. A maximum of 4GB is available for mode storage.
