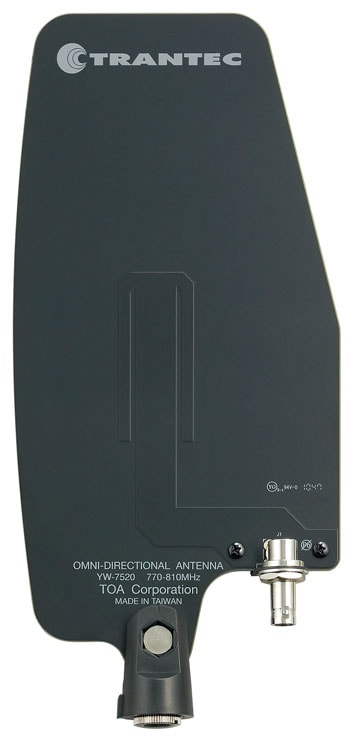

TOA / YW-7520

This is an omnidirectional mobile antenna for 800 MHz wireless. It can be attached to a microphone stand (sold separately) and used. *Please use a low-loss coaxial cable for high frequencies.

■Reception frequency range: 770-810 MHz
■Type: Dipole antenna
■Output impedance: 50 Ω
■Gain: 2.14 dBi
■VSWR: 2.0 or less
■Output connector: BNC jack
■Compatible plug: BNC plug (YA-641 or YA-642)
■Finish: FR-4 glass epoxy printed circuit board, t=2 mm, black
■Mounting screw: NS5/8 (with conversion adapter to W3/8)
■Dimensions: 125 (W) x 272 (H) x 31.7 (D) mm
■Weight: 165 g
