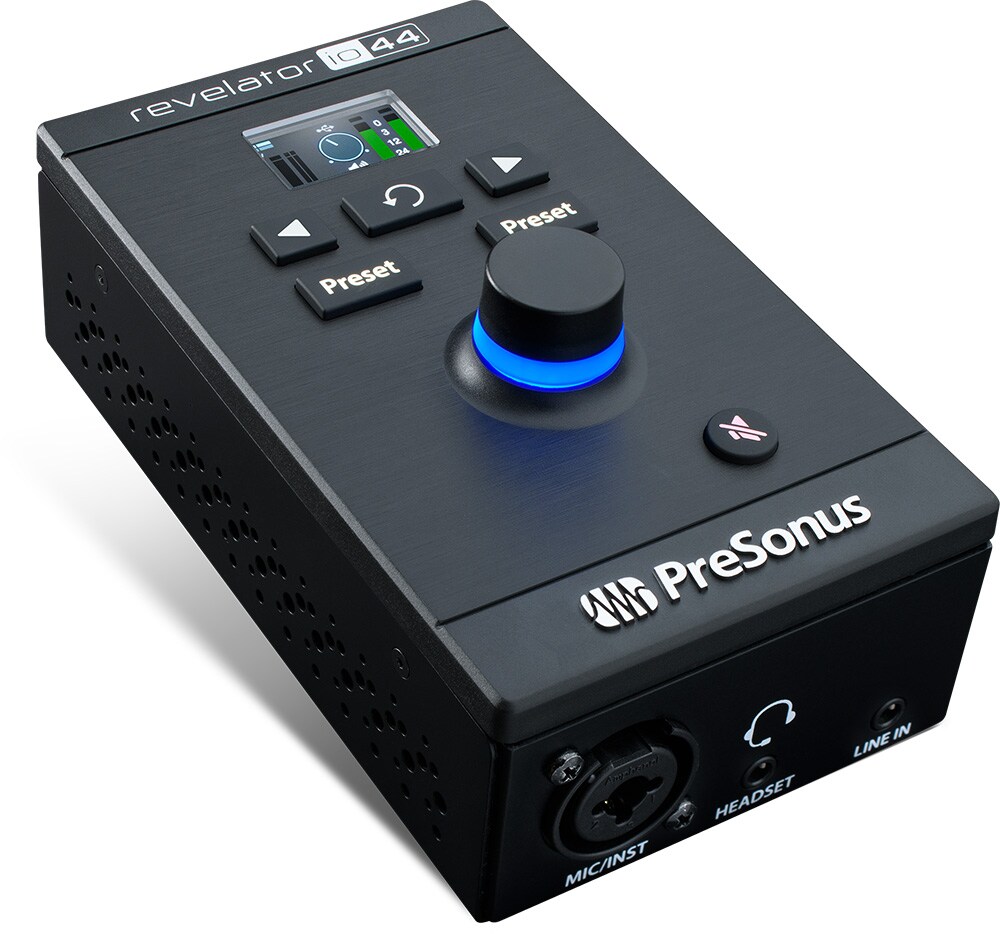

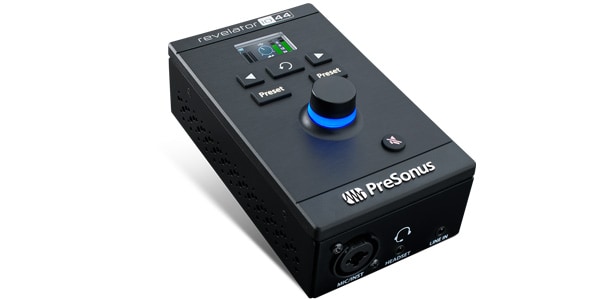

PRESONUS / Revelator io44 Audio Interface

エフェクト、ミキサー、ループバックを統合した新世代のUSBオーディオ・インターフェースPRESONUS / Revelator io44。　安心のサウンドハウス3年保証付き！

■Audio interface
■USB

■Main features
- A new generation USB-C compatible audio interface with bus power, ideal for podcasts, distribution, Vlogs, gameplay commentary, home recording, meetings, YouTube, Zoom, Skype,
Google Meet, OBS, etc.
- Built-in Fat Channel DSP allows for professional quality EQ, compressor, gate, limiter, and voice effect processing
- Eight factory presets (broadcast, radio, robot, monster, echo, etc.) and six user presets can be created
- USB audio interface with 8ch input/6ch output

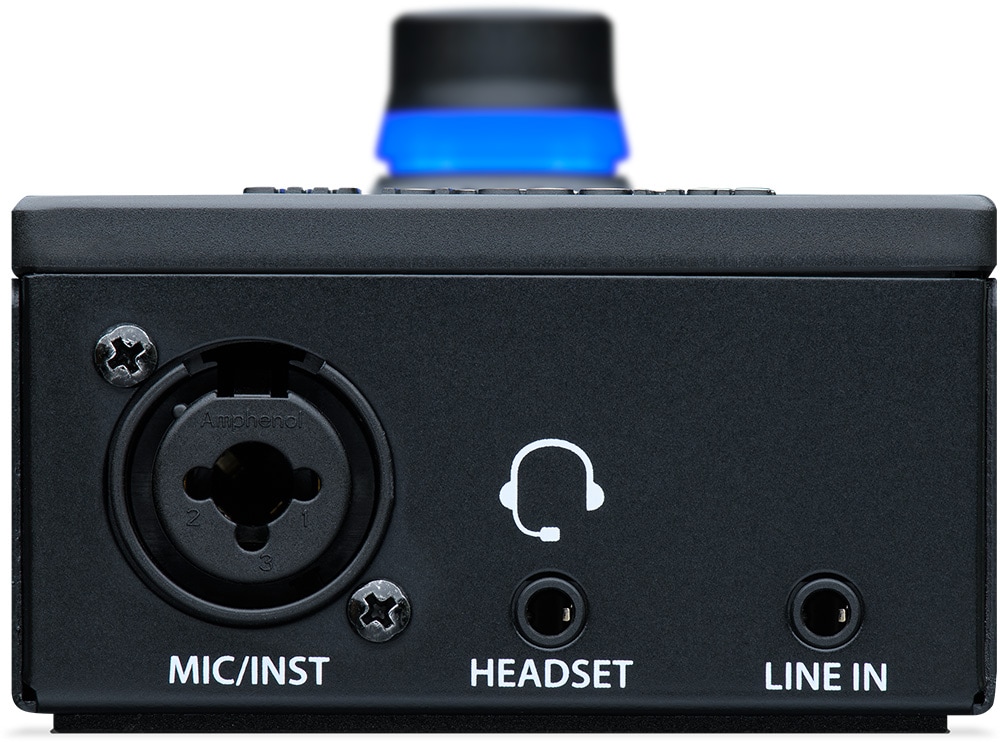

- 1ch microphone/instrument input (equipped with one XMAX-L preamp with phantom power)
- 1/8""TRRS stereo headset/headphone jack (1ch microphone input, 2ch headphone output)
- 2ch 1/8""TRS stereo mini line inputs

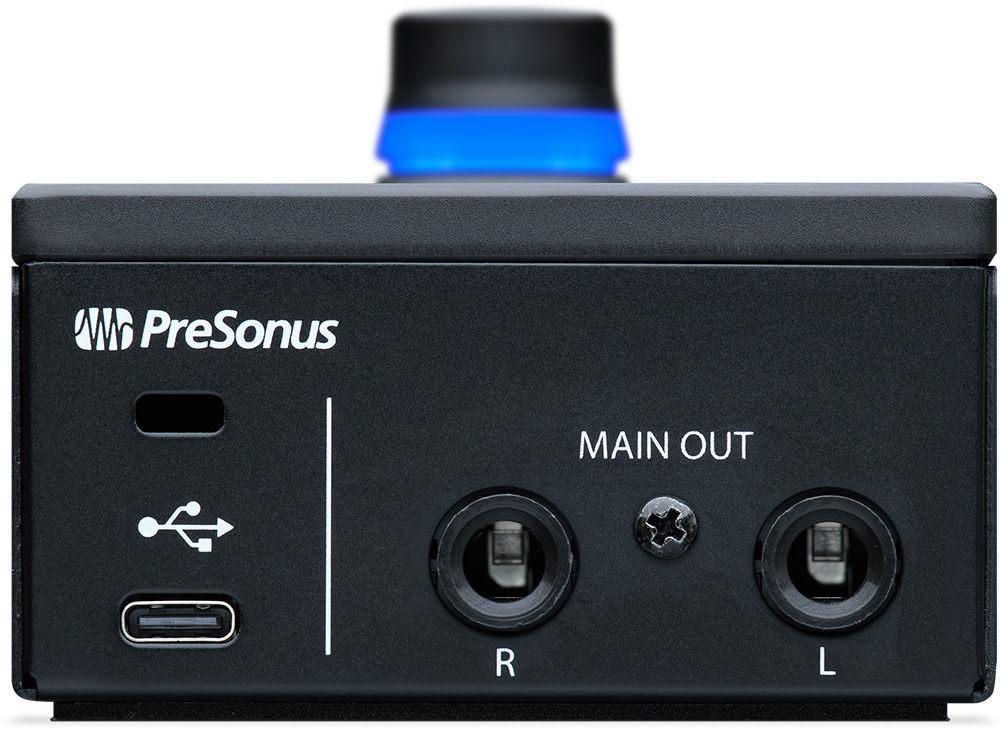

- 2ch 1/4""TRS line outputs
- The 4ch virtual loopback function allows you to send and receive audio between software, making it easy to record Zoom meetings and live gameplay.

- Analog input, effects, and stereo mixes with loopback can be output directly to streaming software such as OBS.

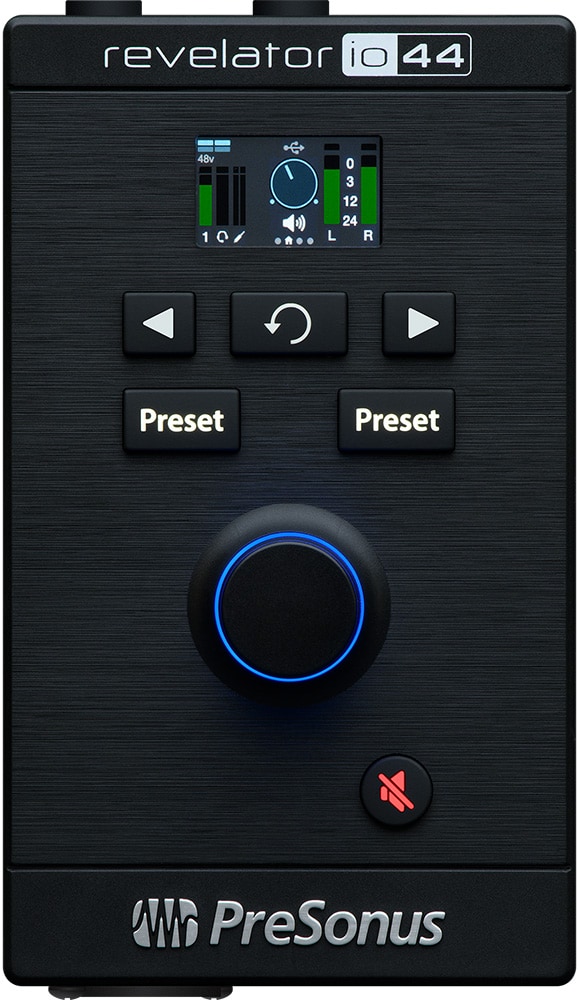

- Large multi-purpose encoder that allows you to control volume and various parameters.

- High-definition display that shows level meters and status.

- Dedicated preset switching button for CH1/2.

- Zero latency monitoring.

- Equipped with a high-resolution converter that supports up to 24-bit/96kHz high resolution for high-quality recording/playback.

- Compatible with macOS, Windows, iOS, and Android.

■ For detailed operating environment and compatible OS status, please be sure to check the information on the agency website.

The new generation of USB I/O is Revelator
Introducing the new generation USB I/O, Revelator io44, perfect for guitarists/singers/DJs, YouTube broadcasts, Zoom meetings, gaming and live commentary on OBS!

High-resolution 24-bit converters, mic/instrument inputs and stereo line inputs with XMAX-L preamps, an ideal headset for gaming, professional quality sound with Fat Channel DSP, special effects for voice, a USB audio interface with loopback and mixer, and even a luxurious software suite. Revelator io44 is a unique audio interface for macOS, Windows, iOS, and Android that covers everything from music production to studio quality streaming.

Super easy loopback
Recording and streaming gameplay is hard... That's not the case anymore! The Revelator io44's loopback function allows you to mix audio between multiple software without any complicated operations. Revelator The io44's powerful mixer has mic/instrument/line inputs, plus two loopback inputs (4ch), allowing you to mix sounds from two software programs. In addition, it also has two line outputs, headphone outputs, and loopback outputs (4ch), allowing for advanced routing. You can also combine inputs into 2MIX and output directly to streaming software.

Easy live stream mixing
The Revelator io44 is both an audio interface and a streaming mixer. It's a great-sounding audio interface with powerful onboard DSP (digital signal processing) right out of the box. When you're ready to stream, just create a mix using one of the dedicated stream mix outputs and select it as a source in your favorite streaming software, such as OBS. Analog inputs, loopback channels, reverb, and effects are routed directly to the stream, no complex routing or additional hardware required.

Studio quality anytime
The Revelator io44 is equipped with the Fat 1000 MHz ... It also has a part of the channel processor built in.

It has a high pass filter that cuts out unnecessary low frequencies and increases clarity, a gate that reduces noise, a compressor (standard, vacuum tube, FET) that makes the volume uniform, an equalizer (standard, passive, vintage) that corrects the sound quality, a limiter that prevents distortion at high volume, and a voice FX processor for special effects for voice. These are processed by the DSP built into the Revelator io44, and two types can be called up as presets for each channel from a dedicated button on the main unit, and settings can be edited and presets can be created freely. The Revelator io44, which also has effect processing, always delivers recording studio quality sound.

Equipped with special effects for voice
Revelator The io44 is equipped with a voice FX processor that transforms your voice into a special sound. It comes with six types of effects: a ""doubler"" that produces a doubling effect, a ""detuner"" that changes the pitch of your voice, a ""vocoder"" that acts as a singing synthesizer, a ""ring modulator"" that provides a robotic voice, a ""filter"" that produces otherworldly effects, and a ""delay"" that produces an echo effect. You can also edit and create your own original presets using the Universal Control software. Various effects will be added in future updates.

■Package Contents
- Revelator io44 Audio Interface
- Japanese Quick Start Guide (Printed Version)
- USB-C -> USB-A Cable (1 meter)
- Universal Control Software (Mixer Control, Effect Management/Editing, Hardware Control)
- Award-winning DAW Software Studio One Artist
- Studio Magic Software Bundle offering over 100,000 yen worth of plug-ins and software

■Technical Specifications
Microphone Preamp
Type
XLR, Female, Balanced
Frequency Response (+0.1dB/-0.3dB, unity gain)
20Hz-20kHz[CR][LF]Input Impedance (Balanced)
1.4kΩ[CR][LF]THD+N (1kHz, -1dBFS, min gain)
