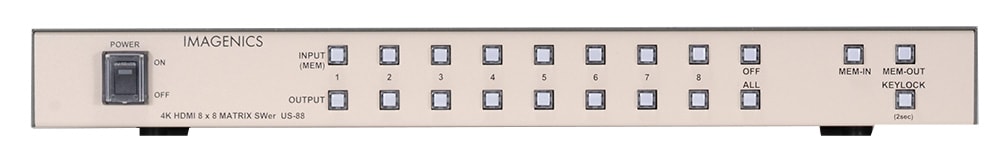

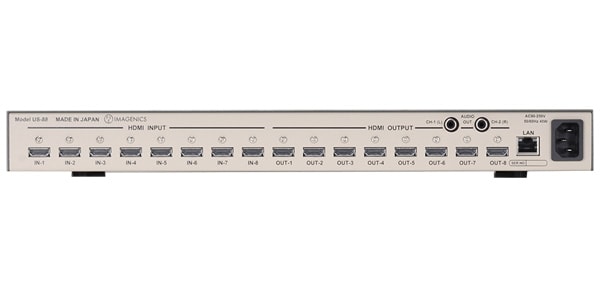

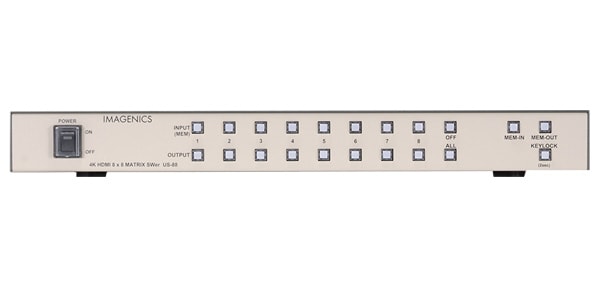

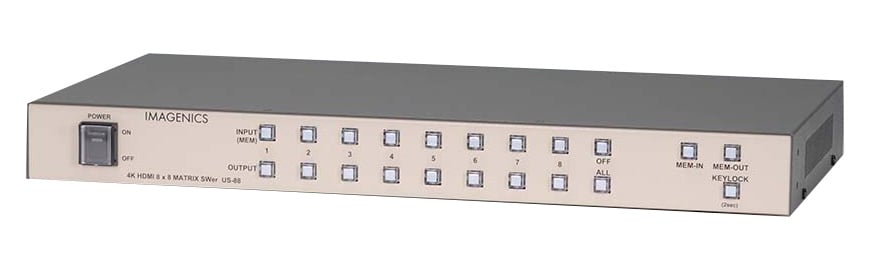

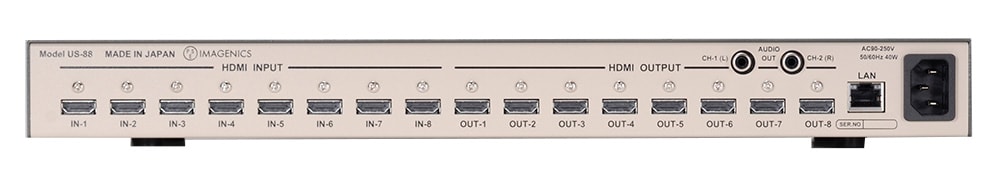

IMAGENICS / US-88

4x2 matrix selector for HDMI signals compliant with HDMI 2.0/1.4 and HDCP 2.2/1.4 standards. It also supports down-conversion function from 4K video to FHD video for each output terminal and analog audio embedding / de-embedding function.

■ 4K HDMI selector
■ 4K signal system:
TMDS Clock: 25MHz to 340MHz
Pixel clock: 25 MHz to 600 MHz
Data rate: 0.75 to 18Gbps
HDCP: 1.4/2.2
Supported resolutions: 4K60p 4:4:4 24bit, 4K60p 4:2:2 36bit, 4K30p 4:4:4 36bit, etc.
■ Video signal system:
TMDS signal (digital RGB/YPbPr) pixel clock 25 MHz to 600 MHz (TMDS clock 25 MHz to 40 MHz)
Automatically supports HDMI signals equivalent to 4K, D1 to D5 and PC signals from 640x480 to 4,096x2,160
Supports up to 36-bit deep-color HDMI signals or 24-bit full-color standards-compliant signals
■ HDMI input:
HDMI-A 19-pin connector 4 systems (HDCP 1.4, 2.2 compatible, DVI signal input possible)
Input cable compensation range (in the case of our specified product output signal)
PC (VESA), D5, etc. Video up to 6 Gbps ~ 30 m Using our HDMI long cable
Video up to 10.2 Gbps such as 4K30, 60(420) ~ 20 m with our HDMI long cable
Video up to 18 Gbps such as 4K60 (422,444) ~ 10 m with our HDMI long cable
■ HDMI output:
HDMI-A 19-pin connector 2 systems (HDCP 1.4, 2.2 compatible, color space conversion and DVI signal output possible)
Output cable length range (it may be shorter due to the reception sensitivity of the display device)
PC (VESA), D5, etc. Video up to 6 Gbps ~ 10 m with our HDMI cable
Video up to 10.2 Gbps such as 4K30, 60(420) ~ 5 m with our HDMI cable
Video up to 18 Gbps such as 4K60 (422,444) ~ 3 m with our HDMI cable
■ EDID emulation function:
Main resolution of CEA, VESA is selected by menu and used (initial value is real-time repeat from OUT-1 terminal)
EDID data from OUT-1 and OUT-2 terminals can be copied and backed up for use
■ Analog voice function:
Audio input terminal: -10 dBu about 50 kΩ unbalanced 2 channels 4 systems (φ3.5 stereo jack x4)
Audio output terminal: -10 dBu (with a load of 10 kΩ or more) Low impedance unbalanced 2 channels 1 system (RCA pin jack x 2)
Audio frequency response: -1 dB to +1 dB at 20 Hz to 20 kHz
Audio S/N ratio: 80 dB or more (at 1 kHz A-weighting, standard -10 dBu output)
Audio crosstalk: >80 dB
Audio distortion: 0.03% or less (at load of 10kΩ or more)
Maximum audio input level: +10 dBu (at 0 dBFS for HDMI embedded audio)
Maximum audio output level: +10 dBu (at 0 dBFS for HDMI embedded audio)
■External control function:
LAN RJ45 1 system (100BASE-TX, 10BASE-T automatic detection TCP/IP, UDP/IP switching
Parallel remote 1 system D-SUB25 (female inch screw)
■Others:
Various setting functions (EDID selection on the input side, color conversion between input and output,
Automatic input detection and sequential switcher operation settings, audio embedding/de-embedding settings,
De-embedded audio optional selection function and arbitrary delay setting function, etc.)
Front/parallel remote independent key lock function, final state backup function (semi-permanent), etc.
Power supply: AC 90 V to AC 250 V 18 W (maximum)
■SIZE: 210(W)x44(H)x230(D)mm (excluding protrusions)
