TANNOY / VMS 1

メーカーサイト商品ページ

Variations

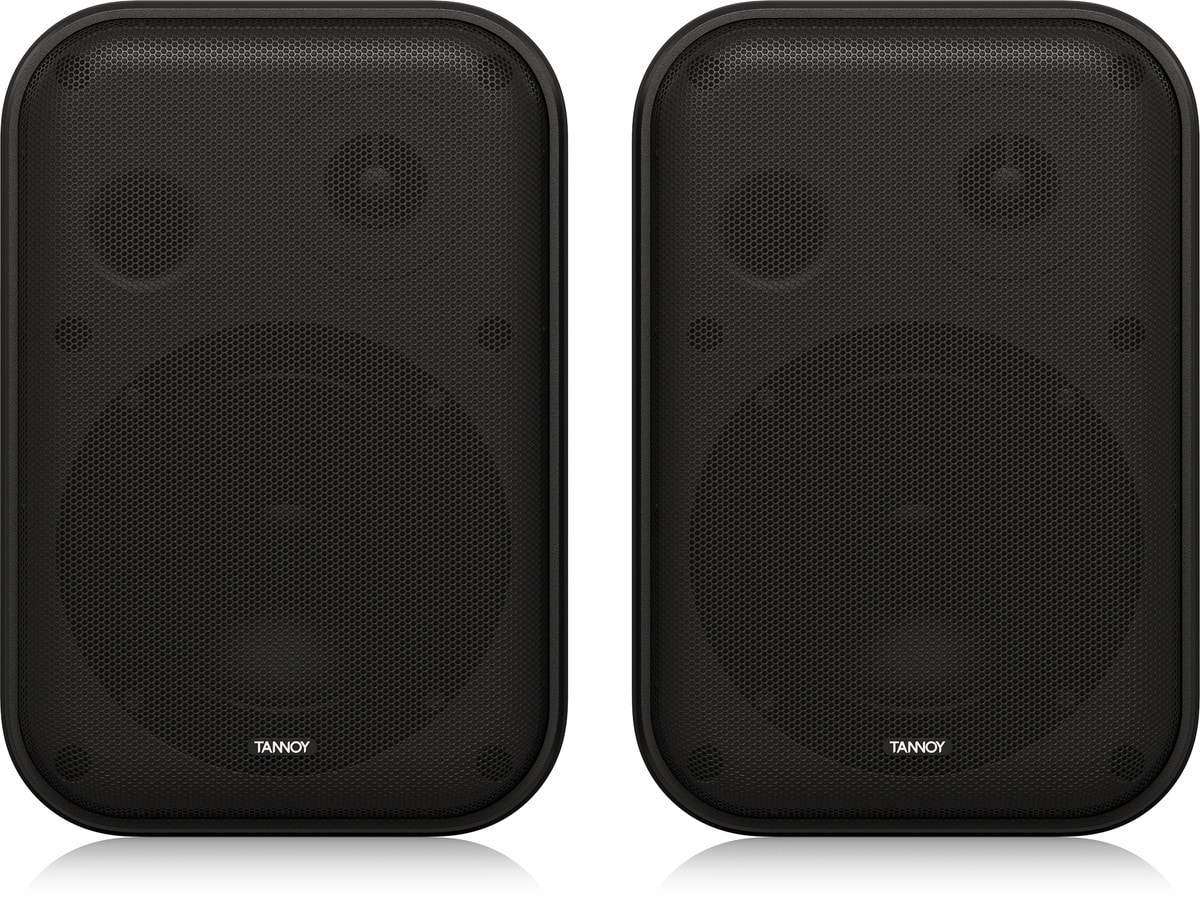

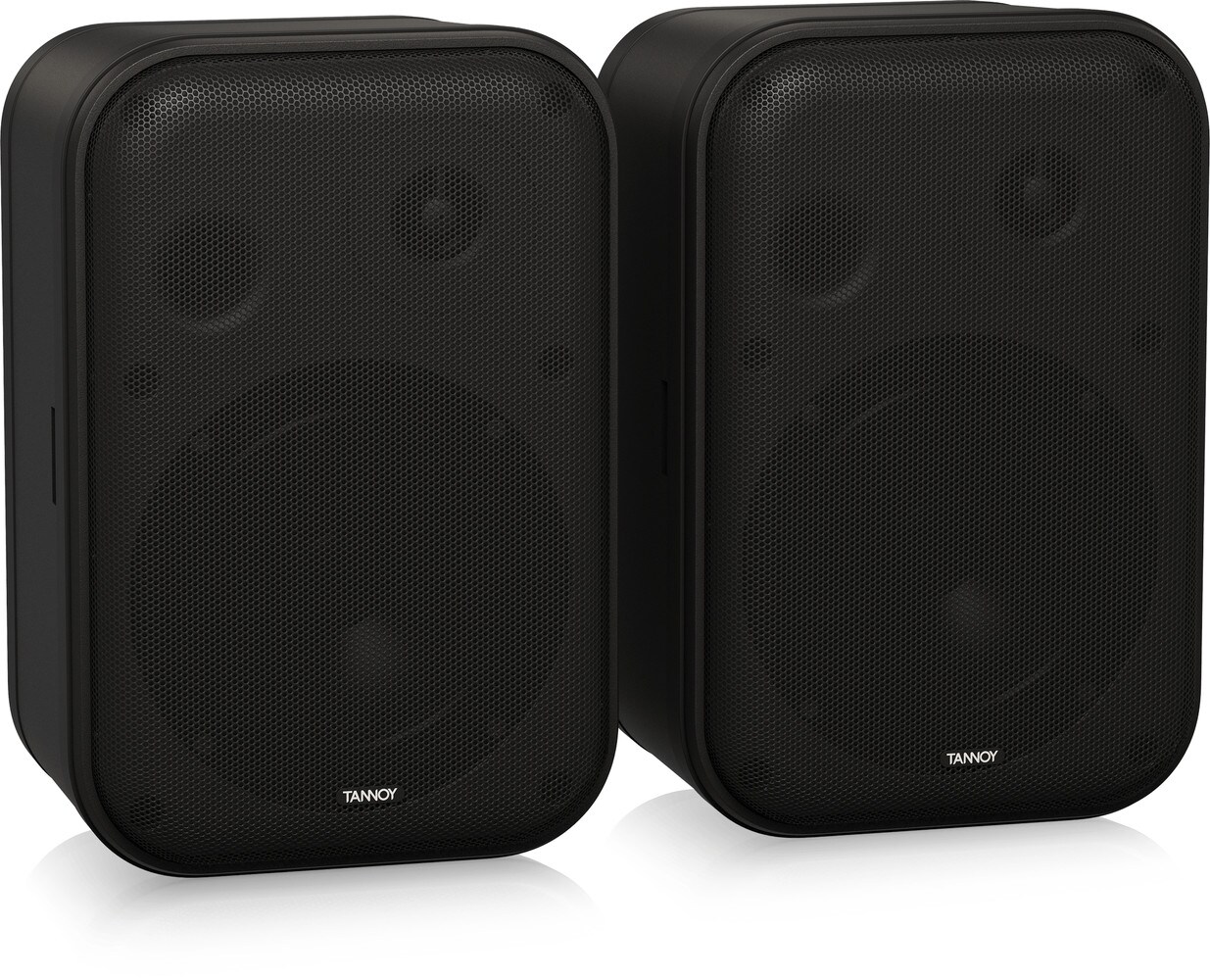

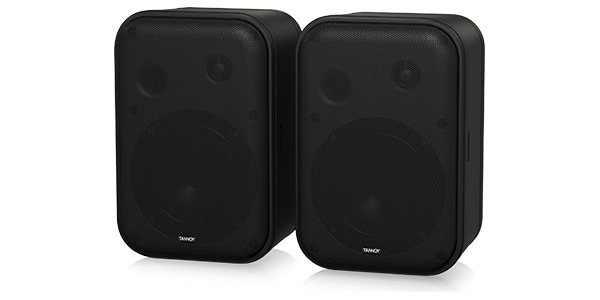

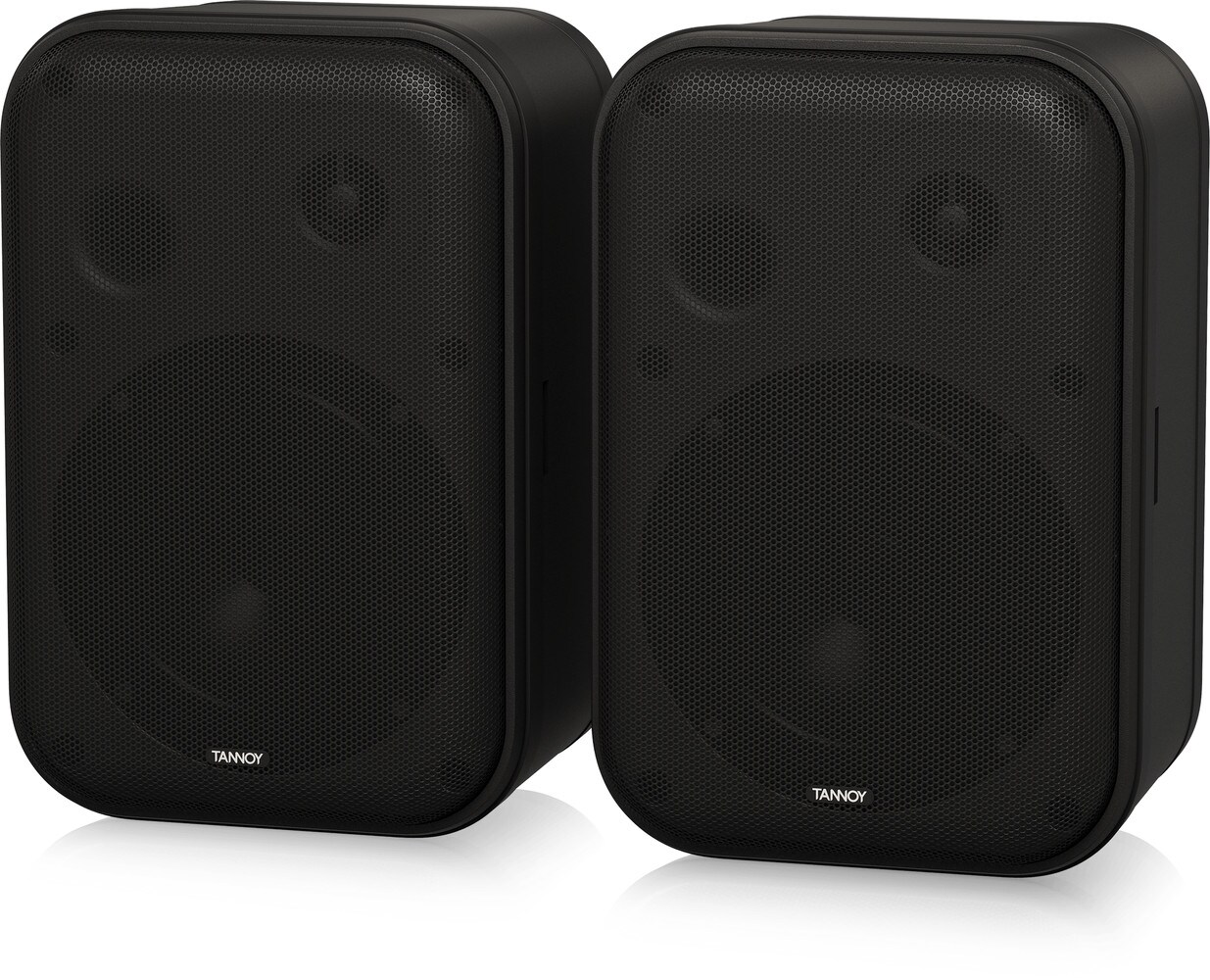

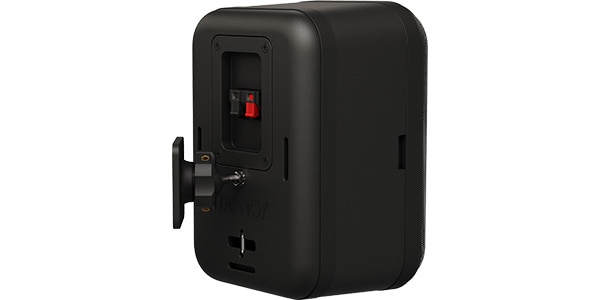

TANNOY 5-inch installation speaker. Compact design. Includes wall mounting bracket. Color: Black

■ Installation Speaker

■ 5-inch

■ 50W

■ 4Ω

■ Black

■ Frequency Response: 70 Hz ~ 20 kHz (-10 dB)

■ Sensitivity: 86 dB (1 W @ 1 m)

■ Power Handling (IEC):

Continuous: 25 W

Peak: 100 W

■ Recommended Amplifier Power:

50 W, Nominal Impedance: 4 Ω

■ Maximum SPL: 100 dB (25 W @ 1 M)

■ Crossover Point: 5.2 kHz

■ Nominal Dispersion @ 2 kHz, 117° H x 149 V @ -6 dB Point

■ Transducer

Diameter / Material / Type (LF): 135 mm (5.3""), Black Paper Cone

Diameter / Material / Type (HF): 13 mm (0.5""), Black PE I Dome

■Enclosure

Material: ABS 757

Grille Material: Steel

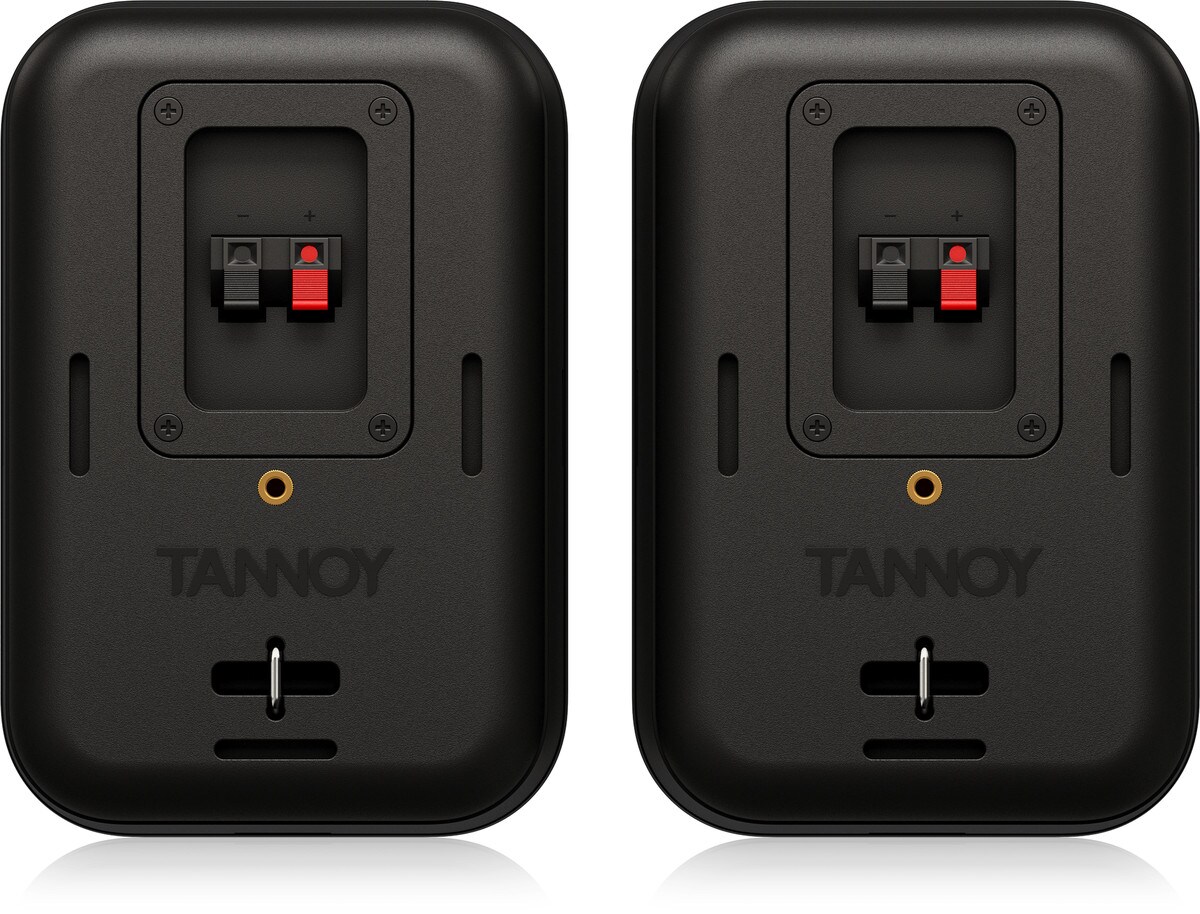

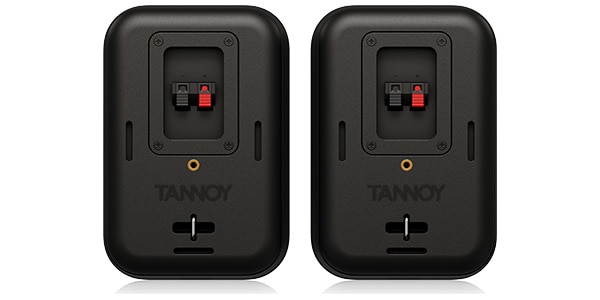

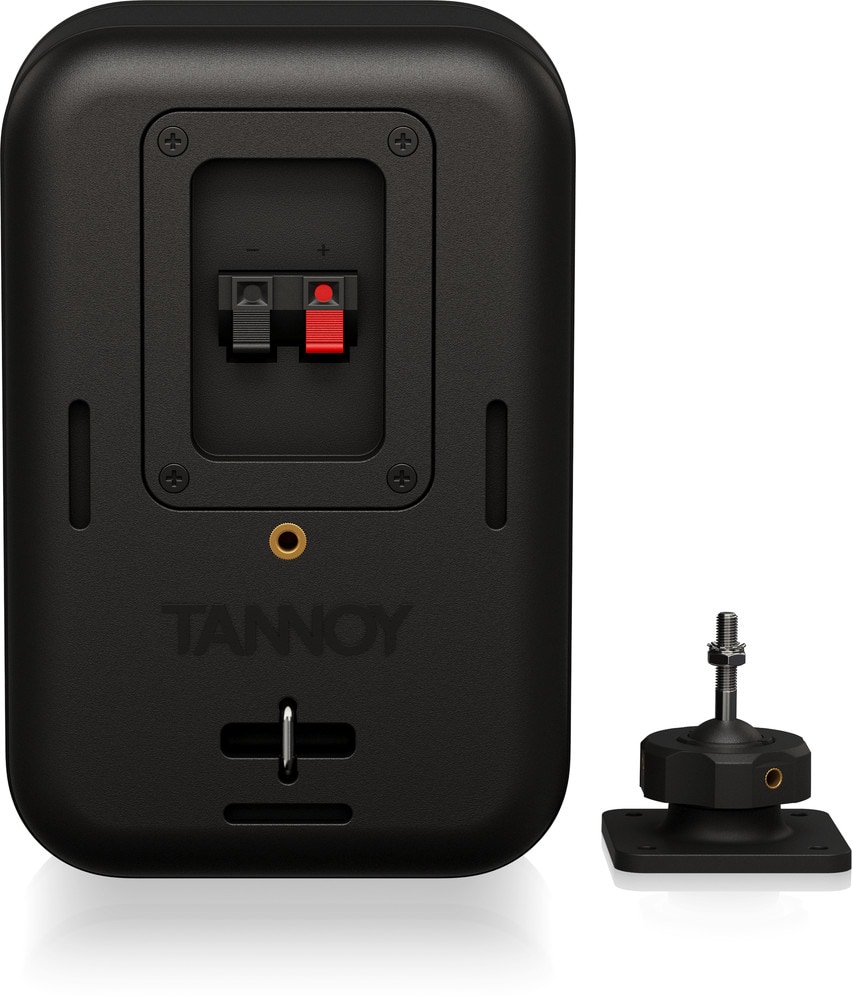

Connector: Bare wire clip terminal

■Dimensions (H x W x D): 235 x 159 x 142 mm (9.25 x 6.25 x 5.6"")

■Net Weight: 1.8 kg (3.96 lbs)

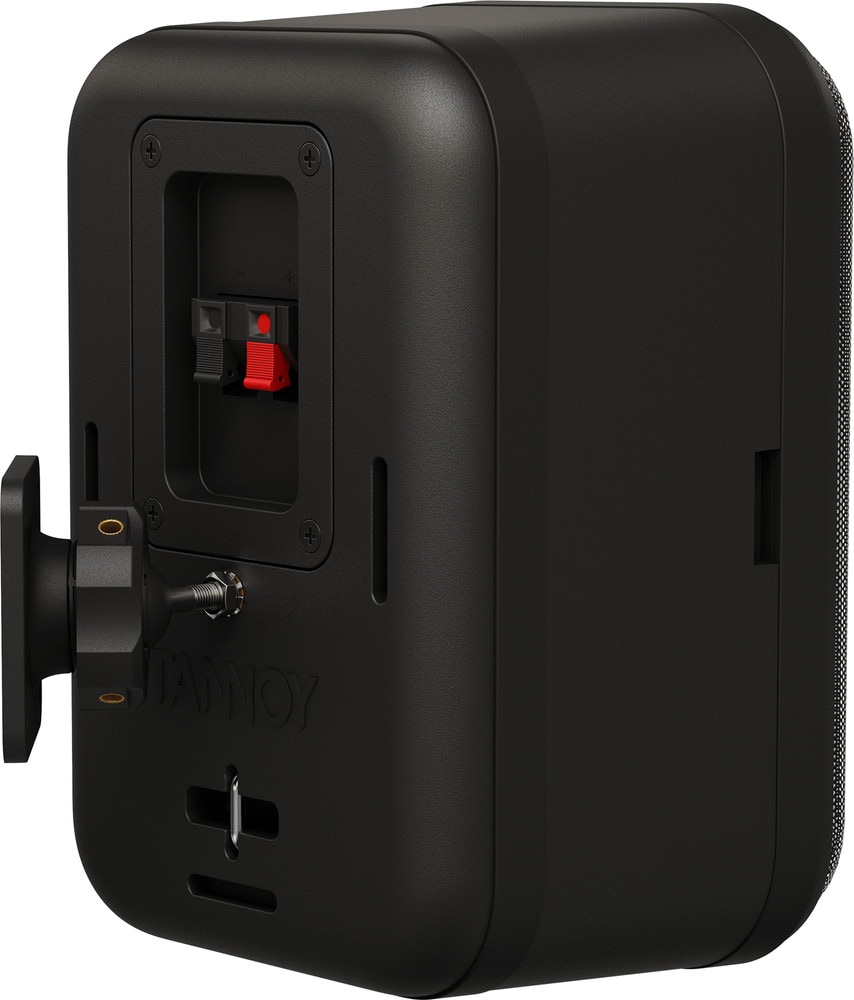

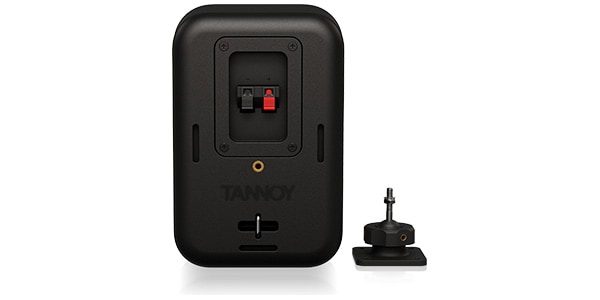

■Accessories: Wall mounting bracket
