BEHRINGER/SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036

BEHRINGER / SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036

メーカーサイト商品ページ

Variations

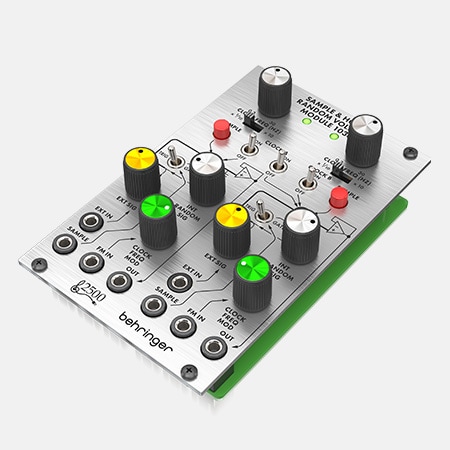

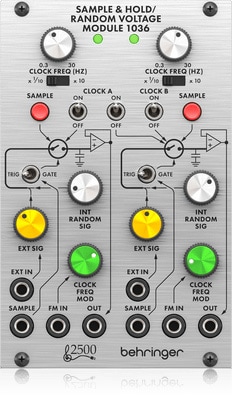

SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036 is a dual Sample&Hold module from the Legendary 2500 series developed for EuroRack.

Features

- '70s classic 1036 analog dual sample & hold module

- Fully reproduces the circuit of the ""2500"" series

- Equipped with two independent sample & hold circuits, two random noise generators, and two VCC (Voltage-Controlled Clock)

- Can generate random tone sequences, scales, and arpeggios

- Equipped with sample command input, it is possible to control the audio signal input and output of each sample and hold circuit and the timing of samples from different sources

- Clock frequency control allows adjustment of the frequency and sampling rate of each clock

- Samples can be controlled manually using push buttons

- Sampling can be controlled using trigger or gate signals from EXT IN

- Internally generated random signals can be used as sampling signals with attenuable level controls for each channel

- Eurorack specifications: 16 HP

Specifications
◆ Analog synthesizer module
■ Power

- Power supply: Eurorack

- Current: 45 mA (+12 V), 40 mA (-12 V)
■Dimensions, etc.
Dimensions: 43x 81x 129mm
Rack unit: 16HP
Weight: 0.18 kg
