BEHRINGER/CLOCKED SEQUENTIAL CONTROL MODULE 1027

BEHRINGER / CLOCKED SEQUENTIAL CONTROL MODULE 1027

メーカーサイト商品ページ

Variations

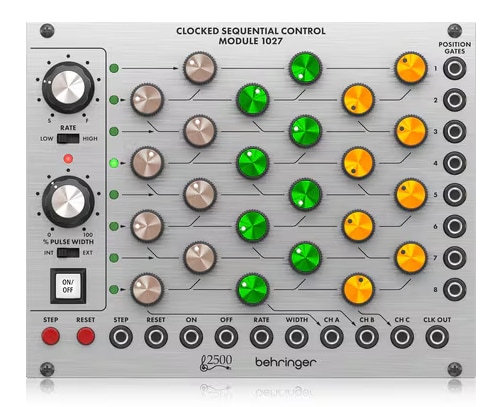

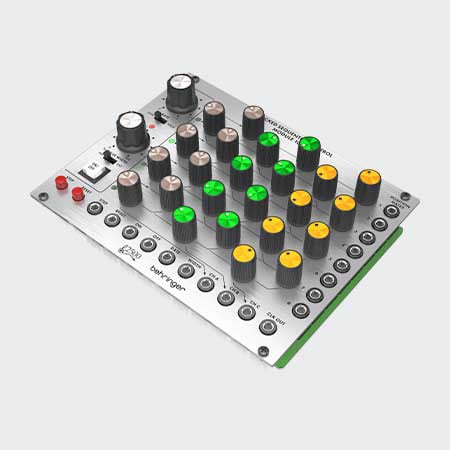

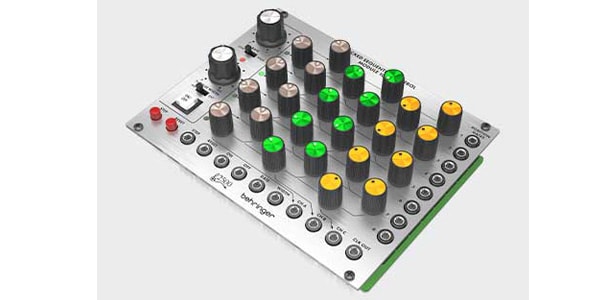

The CLOCKED SEQUENTIAL CONTROL MODULE 1027 is a Legendary 2500 Series 8-Position Step Sequencer Module for EuroRack.

Features
-Faithfully reproduces the legendary 2500 series sequencer module circuit of the 70's
・ Equipped with 8-step counter and 3-channel CV output
-The speed of the internal clock can be adjusted from a step rate of 20 / min to 400 / sec by adjusting the pulse frequency control and EXT rate control signals.
Eight rows of three controls with three independently adjustable CV outputs at each step
・ Steps move automatically by the built-in time generator
-Clock pulse with and step voltage Time can be controlled between 0-100% by pulse with control and EXT control.
-The internal clock can be switched by inputting a pulse wave to each ON / OFF INPUT.
・ The voltage of channels A, B, and C can be controlled in the range of 0 to 10V.
The 1027 can be used to control other 2500 series modules, including the 1026 Preset Voltages or 1050 Mix Sequencer modules.
・ Eurorack specifications: 26 HP, 50 mA + 12 V, 30 mA -12 V

specification
◆ Analog synthesizer module
-Type: Sequencer module
・ Power supply: Eurorack 50 mA + 12 V, 30 mA -12 V
・ Eurorack size: 26 HP
・ Dimensions: 43 x 162 x 129 mm
・ Weight: 0.37 kg
