Sonarworks / SoundID Reference for Multich. w/ Measurement Micropho

SoundID Reference for Multichannelは、シンプルなステレオから9.1.6 Dolby Atmosまでのスピーカーセットアップに対応。正確で信頼性の高いリファレンスサウンドを提供します。また、ヘッドホンにも対応し、ヘッドホンのプロファイルデータベースから480種以上のヘッドホンモデルをキャリブレーションし補正。ヘッドホンとスピーカーとの間で一貫したリファレンスサウンドを実現します。

■Measurement app/plug-in
■Measurement microphone included
■Multi-channel compatible
■Package version: A simple package with a serial number will be delivered to the specified address. The serial number will be registered on the manufacturer's website and the installer will be downloaded.

・Calibration software
・Measurement microphone included
*To use this product, a PC/Mac that meets the operating environment and an audio interface with a phantom power-compatible microphone input are required.

This product is a calibration software that measures the acoustic characteristics of monitor speakers/rooms with the included measurement microphone, corrects the sound of the audio interface output by using dedicated software on a PC/Mac that meets the operating environment, and allows you to monitor sound with extremely flat characteristics from the speakers.

Calibration software for all audio systems
・High-precision SoundID measurement microphone, with individual multi-angle calibration curve.
・Headphone calibration compatible with over 480 models.

Control the sound to your ideal sound field
・Flat target curve used by over 100,000 music creators worldwide.
・Manual adjustment of calibration frequency range limits and target curves is possible. Achieve customized sound fields.

High functionality and flexibility
- Zero latency plug-in DSP for multi-channel
- Inter-channel phase adjustment function enables high-precision time delay correction
- Native support for Apple Silicon Platform/M1 chip

Correction profiles can be exported to compatible hardware
- AVID MTRX with SPQ DSP
- AVID MTRX Studio
- DAD AX32 with SPQ DSP
- Dolby Atmos Renderer Mastering suite
- Jones-Scanlon Studio Monitors
- Expansion of compatible hardware is planned for 2022.

■ Included products
- Product license activation key: The product can be used on three machines.

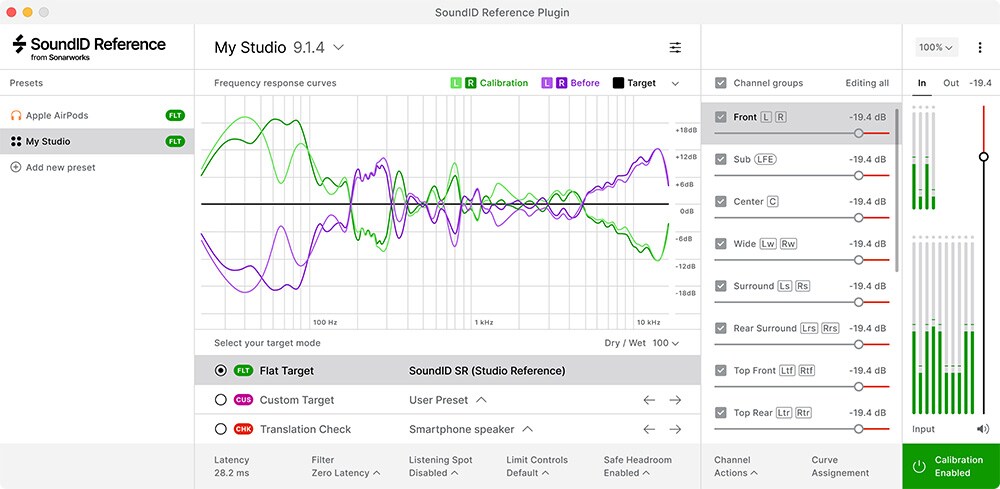

・Multichannel Sound ID Reference DAW plugin (compatible with AAX, AU, VST2, VST3)
・SoundID Reference standalone app for stereo ASIO, WASAPI, APO, HAL

(Included only in the with Measurement Microphone Edition below)

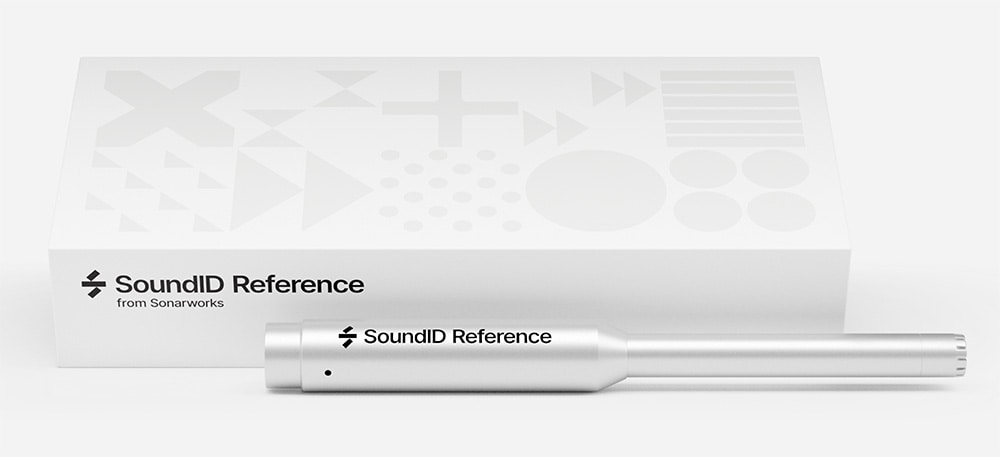

XLR-connected SoundID reference measurement microphone and individual calibration profile
5/8"" threaded microphone clip for 21-26mm microphones

*Please check the specifications and operating environment at the bottom of the agency website below for the operating environment.

Notes on speaker correction measurement
・Please prepare an audio interface that supports 48V phantom power.
・Please use the same audio interface for input and output.

・Please check that your audio interface supports one of the following and confirm the settings.

(44.1kHz / 48kHz / 88kHz / 96kHz / 192kHz (one of the sample rate formats)

- The audio hardware setup must consist of a single external piece of hardware.
