Critter & Guitari / Black & White Video Scope

Black & White Video Scope is a video synthesizer that generates black and white minimalist images.

A video synthesizer that generates beautiful and minimal black and white video patterns

Black & White Video Scope is a video synthesizer that generates black and white minimal video. It can output 16 video patterns synchronized with the beat of the input audio signal. The flashing, rotating, and random movement of pixels of the strobe effect are more beautiful and artistic than you can imagine. In addition, in random mode, you can play various modes randomly.

*This unit does not produce sound.

*The output is RCA analog composite (you may need to connect a converter that matches your monitor)

About power supply and input/output

You can use a 9V (center positive) AC adapter (included) for power supply.

There are two inputs and outputs: a standard 1/4"" phone jack (MONO) for inputting external audio, and an RCA composite (NTSC) for outputting the video generated from the input audio.

To set the rate of the Random mode, set the Mode knob to one of the above modes and hold it there for one second, then set the Mode knob to the Random mode position. The timing (rate) at which the mode randomly switches is the same as the mode number above. For example, if you set the mode to [16-Strobe] for one second and then set it to Random, the mode will switch randomly every time a 16 beat is detected. If you set the mode to [9, Blinds] for one second and then set it to Random, the mode will switch randomly every time a 9 beat is detected.

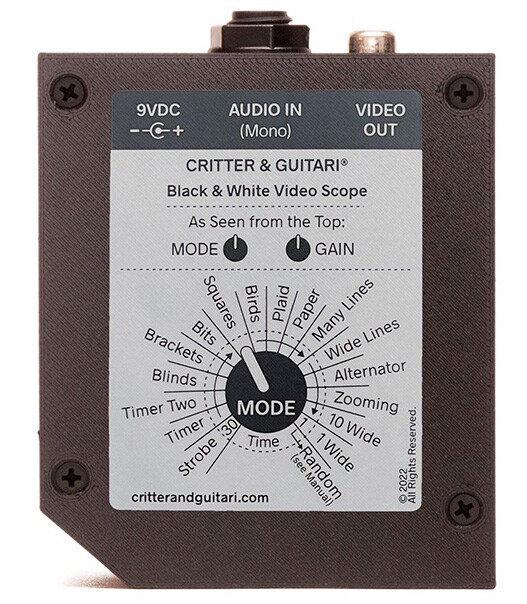

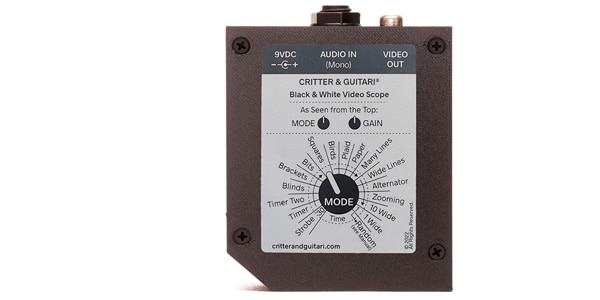

The mode selector on the left allows you to switch between the 16 video modes, and the GAIN knob on the right allows you to adjust the sensitivity at which the audio input triggers a pattern change.

Specifications:

・ Enclosure: Organic aluminum and wood design (approx. 8 x 5.6 x 1.2 x 0.1 inches (8 x 5.6 x 5.6 x 1.2 x 0.1 cm). 2.8cm)

- 1/4"" standard phone input

- RCA composite video output (NTSC)

- 9.47 x 7.49 x 4.6 cm

- 9VDC Power Adapter Included

*AC adapter included as a bonus.

*This unit does not produce sound. It is a machine that outputs video in response to external audio input.
