Critter & Guitari / Video Scope

Video Scope is a video synthesizer that creates colorful video patterns from input sounds.

A video synthesizer that creates colorful video patterns from input sounds

Video Scope is a masterpiece of "Video Synthesizer" that Critter & Guitari first worked on. This work has led to the development of sequels such as Rhythm Scope and B & W Videoscope.

Generate colorful "video patterns" from the input "sound". Creates an 8-bit attitude random and infinite video pattern in response to the beat of the input sound.

Ideal for live performances using projectors, etc.

* No sound is output from this unit.
* Output is RCA analog composite (you may need a converter for your monitor to connect)

About power supply and input / output

A 9V (Center Plus) AC adapter (included) can be used as the power supply.

There are two inputs and outputs: a standard phone 1/4 "jack (MONO) that inputs external audio, and an RCA composite (NTSC) that outputs video generated from the input audio.

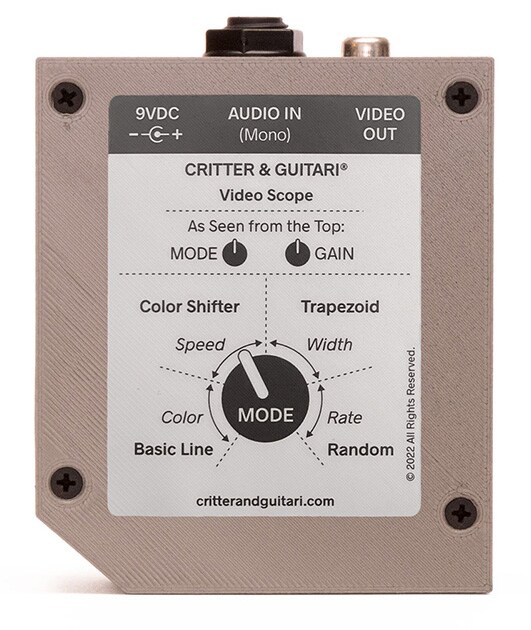

The MODE knob has four modes depending on its position.

1, Line
2, Color Shifter
3, Trapezoid (parallelogram)
4, Randomizer (random generation)

Since each can output a characteristic image, you can try various patterns with rich colors. Especially in "4, Randomizer (random generation)", 1 to 3 modes are randomly selected and output, so it is most suitable for performance. It keeps outputting images that are constantly changing.

Specifications: Specifications:

・ 1/4 ″ standard phone input
· RCA Composite Video Output (NTSC)
・ 9.47 x 7.49 x 4.6 cm
・ 9VDC Power Adapter Included



* AC adapter is included as a bonus.
* There is no sound from the unit itself. It is a machine that outputs video by triggering audio input from the outside.
