IK MULTIMEDIA / iRig Pro Quattro I/O

多数の機能を凝縮したプロ仕様のモバイル・オーディオインターフェイス。コンパクトながら音楽制作や配信、フィールドレコーディング、ミキサーとしての使用など、様々な用途で活躍します。　安心のサウンドハウス3年保証付き！

■Professional mobile studio
Have you ever lost a cable or connector during a shoot? Before, during, or even after, you want to avoid technical issues ruining your recording.

The iRig Pro Quattro I/O is a professional, 4 IN / 2 OUT portable audio MIDI interface that is the answer to such concerns. From field recording and content creation to streaming, podcasting, and other distribution, the iRig Pro Quattro I/O is packed with a wide range of functions, allowing you to handle a wide range of applications without complicated wiring.

■Many functions packed into a compact body
iRig Pro Quattro I/O is a 4 IN / 2 OUT mobile audio / MIDI interface with high-quality microphone preamps and 24-bit / 96 kHz converters.

The package includes everything you need, including cables, stand adapters, and batteries, so you can start recording broadcast quality right away. Also available is the iRig Pro Quattro I/O Deluxe, which includes the original iRig MIC XY, wind screen, power adapter, and carrying case.

■Suitable for all purposes

・As a mobile interface
Connect to desktops, laptops, and mobile devices
Multi-channel interface supporting up to 24-bit / 96 kHz
MIDI IN / OUT to connect MIDI-compatible devices
Full range of input and output terminals
4 IN / 2 OUT interface / mixer
MFi certified for seamless performance with iPhone and iPad

・As a distribution interface
STEREO mode mixes all signals to stereo
MONO mode supports distribution apps that only support mono
Headphone output supports direct monitoring that can be turned on and off
Loopback function
Connect a microphone or line-level instrument to Input 3-4 and route the signal processed by the app to Channel 1-2 (Loopback+ function)

・For field recording
Turn your iOS / Android device into a multi-function field recorder
Record directly to a mobile device or Mac / PC instead of an SD card
DSP-controlled MEMS Recording with built-in microphones is also possible
Powered by 4 AA batteries or USB mobile battery
Deluxe bundle includes iRig MIC XY and windscreen

・As a standalone mixer
XLR combo input terminal with +48V phantom power that can also connect up to 4 condenser microphones
Powered by USB battery, 9V power adapter, or 4 AA batteries
Mix multiple signals with comprehensive inputs and outputs
Input multiple sound sources to a digital single-lens camera
Includes camera-standard UNC 1/4-20 adapter

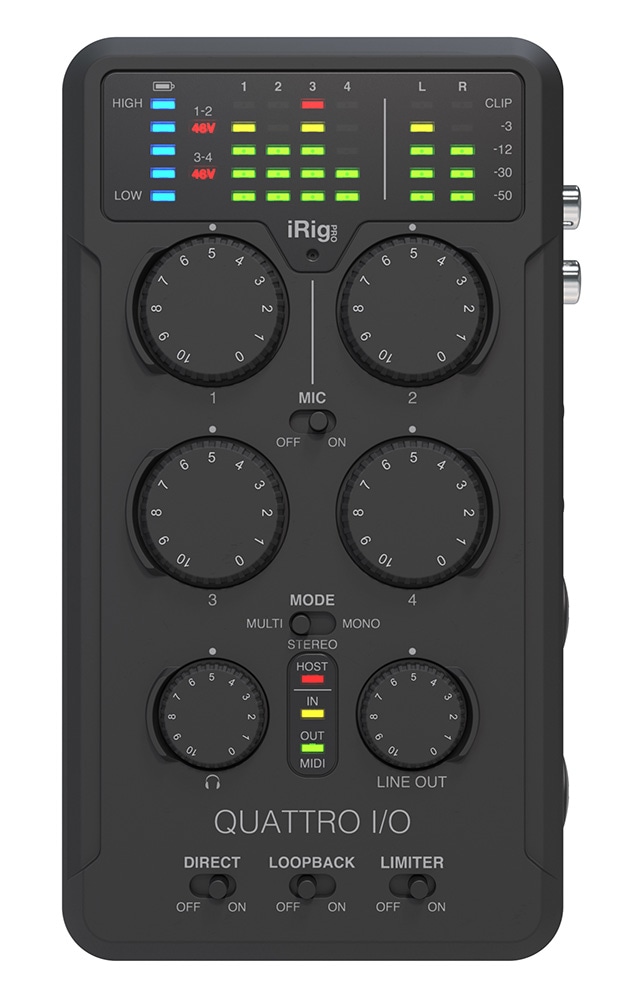

■3 types of modes (MULTI, STEREO, MONO)
iRig Pro Quattro I/O can be switched between 3 types of modes (MULTI, STEREO, MONO) with the MODE switch. In STEREO and MONO modes, all inputs, including the built-in MEMS microphone and loop back, are mixed into stereo (or mono). You can select the optimal mix for your application.

When using a DAW, select MULTI to route the MIC/INST IN 1-2 (for microphone/Hi-Z instrument input) to Input 1-2, the MIC/LINE IN 3-4 (for microphone/line input), the RCA IN 3-4 or the 3.5 mm Stereo IN 3/4 to Input 3-4.

■Genuine XY Microphone
iRig Pro Quattro I/O can be equipped with the optional iRig MIC XY microphone (bundled with iRig Pro Quattro I/O Deluxe). By using a cardioid condenser microphone in the XY format, you can record clear stereo sound.

The 20 Hz to 20 kHz frequency response and 145 dB SPL dynamic range allow for natural and immersive field recording. In addition, the safety channel function provides a backup for unexpectedly loud inputs.

■Safety Channel
In STEREO and MONO modes, Input 3-4 selected for recording function as a safety channel that sends the same mixed signal as Input 1-2 at a 12 dB lower level. You can use Track 1-2 for recording as the main, and Track 3-4 as a backup in case of unexpectedly loud input.

■Loopback+ Function
The Loopback+ function allows you to go beyond normal loopback, such as singing along with a music app. This allows you to connect a microphone or line-level instrument to Input 3-4 of the iRig Pro Quattro I/O and route the signal processed by MixBox, AmpliTube, VocaLive, etc. to Channel 1-2.

This Loopback+ function allows you to stream with professionally processed audio and creative sound using only mobile devices such as iOS and Android.

■No recording media required
iRig Pro Quattro I/O can record digital audio that is faithful to the original sound directly to a mobile device or Mac/PC. This means that no recording media such as SD cards are required, and there is no need to format the audio. The recorded audio is stored on the host device, and can be immediately backed up to the cloud or shared using the network.

■Plenty of bonus software
When you register as a user of iRig Pro Quattro I/O, you will receive Mac/PC software worth approximately 83,000 yen as a bonus. In addition to T-RackS 5 SE, which has 10 types of processors such as EQ, compressor, and reverb, and AmpliTube 5 SE, which has more than 80 gear models necessary for guitar and bass, you can choose two products from MODO BASS SE, MODO DRUM 1.5 SE, Miroslav Philharmonik 2 CE, SampleTank 4 SE, and Syntronik 2 SE.

Additionally, you will receive bonuses worth approximately 12,000 yen in-app purchases that will unlock the full specs of MixBox CS for iPad and iRig Recorder 3 LE.

Combine the multifunctional iRig Pro Quattro I/O with the bonus software that allows for a variety of processing and editing to enjoy creating high-quality audio content.

■Main Features

- Professional mobile audio MIDI interface

- Connects to iPhone, iPad, Android, Mac/PC

- Converter supports resolutions up to 24-bit/96 kHz

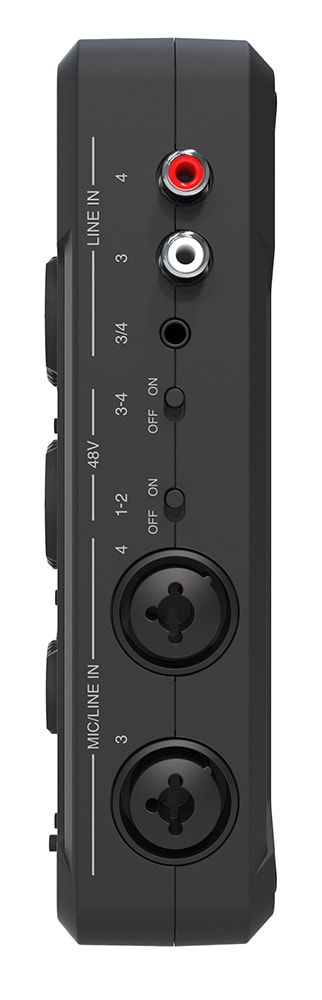

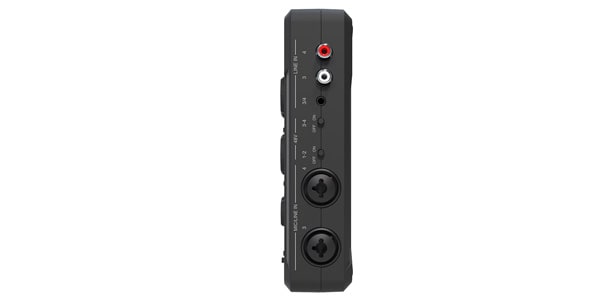

- 2 XLR combo inputs for mic/Hi-Z, 2 XLR combo inputs for mic/line input (both with +48V phantom power)

2 RCA line inputs, 3.5 mm stereo line input

- Built-in MEMS microphone

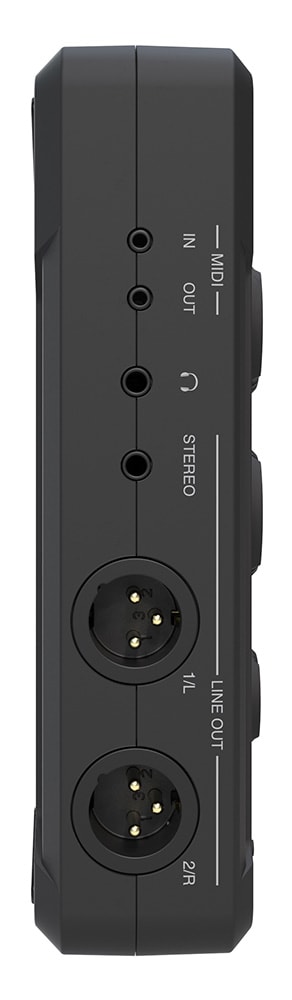

- 2 balanced XLR outputs

- Headphone output (supports direct monitoring)

- 3.5 mm stereo line output

- MULTI, STEREO, MONO modes

- Works as a stand-alone mixer

- Equipped with limiter and -12 dB safety channel functions

- Powered by USB bus power, 4 AA batteries, 9V power adapter (iRig PSU 9175), or USB battery

Bundled with high-quality software

■Accessories
1/4 inch thread adapter, Lightning to Mini-DIN connection cable (60 cm), USB-C to Mini-DIN connection cable (60 cm), USB-A to Mini-DIN connection cable (60 cm), 2.5 mm TRS male to MIDI female adapter (10 cm), 4 AA batteries

*Please be sure to check the information on the agency website for operating environment.
