Polyend / PLAY

Polyend / TRACKER is a groove box with 8x internal sample tracks and 8x polyphonic MIDI tracks.

With an exciting and simple workflow, Polyend Play is far from the mundane sample-based groove box of the past.
Take it out of the box and start playing with over 30 sample kits right away, with endless beat possibilities in your hands.

Polyend Play takes an open sandbox approach that allows you to instantly combine a variety of playback features for production and performance.

With eight internal audio tracks and eight polyphonic MIDI tracks for controlling external devices, Polyend Play can be at the heart of your studio. Polyend Play can be the most fun groove box ever in groove box history.

PLAY.
Pick up and place. Trackmaking begins the moment you find your favorite sound from over 3000 samples and place it on the grid.

select. Adjust. Step parameters can be easily adjusted to give you control over familiar sample-based controls.

With as many as 35 sample play modes, you can make each track unique by making full use of chances, action combos, randomizers, step repeater functions, and more.

Have you run out of ideas? In such cases, you can use the smart fill option to automatically randomly place steps from the entire beat, or fill the pattern with Euclidean spread.

From switching steps, tracks, track pages, variations, and patterns, data selection is easy and data processing such as copy and paste can be performed efficiently.

Musically with scale filtering. The entire sequence is output along the selected scale.

PERFORM.
Perform mode allows you to make non-destructive changes to your track through performance effects such as tuning, filters, overdrive, rear rangers, and space.

You can record real-time automation or change a single step value from an external keyboard or a keyboard on your console. You can do this both monophonically and polyphonically.

Customizable pattern chains allow you to place the entire sequence anywhere on the grid and play it in real time.

Built-in effects include reverb, delay, sound enhancer, limiter, and saturator master effects to spice up your entire mix.

You can save and recall patterns instantly. You can also recover from troubles that occur during live performances.

SEQUENCE
Combine 8 built-in audio tracks and 8 polyphonic MIDI tracks for powerful integration of your equipment.

Each track has a rotary knob that supports flexible MIDI CC mapping for full MIDI control. You can also connect an external MIDI keyboard for MIDI note input. You can also output MIDI messages such as chords, arpeggios, programs / bank changes, pitch bends, and clocks.

Over 30,000 track variations are available! This is a 128 pattern with 16 tracks, each track having a maximum of 16 variations. Control your synthesizer or drum machine with the ability to set individual MIDI messages for each track.

Each track can be set to an independent length (1 to 64 steps), and features such as speed associated with BPM, playback mode, and swing can be used. Great for multi-layered polyrhythm sequences.

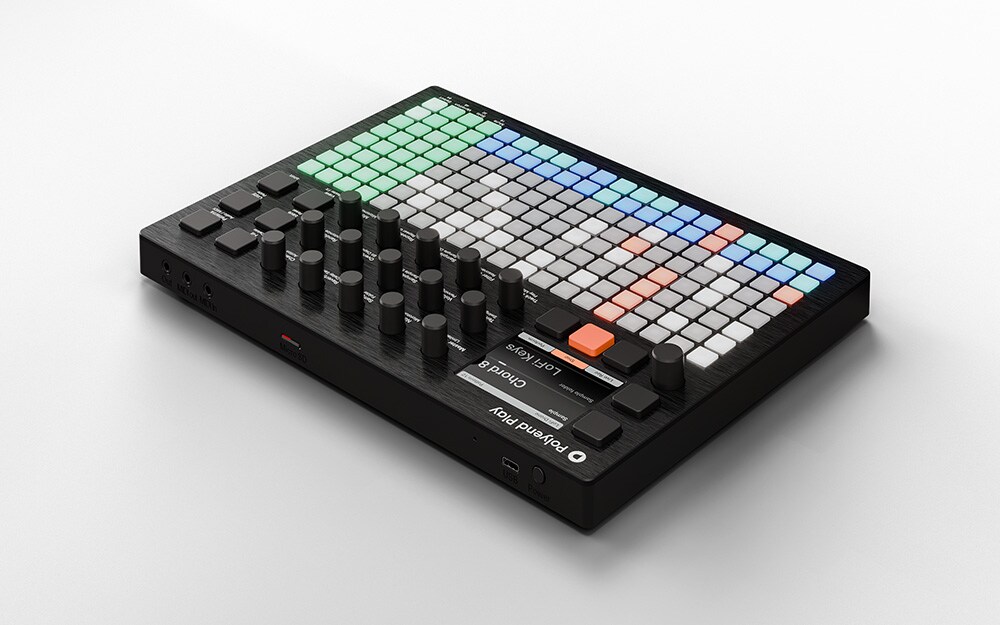

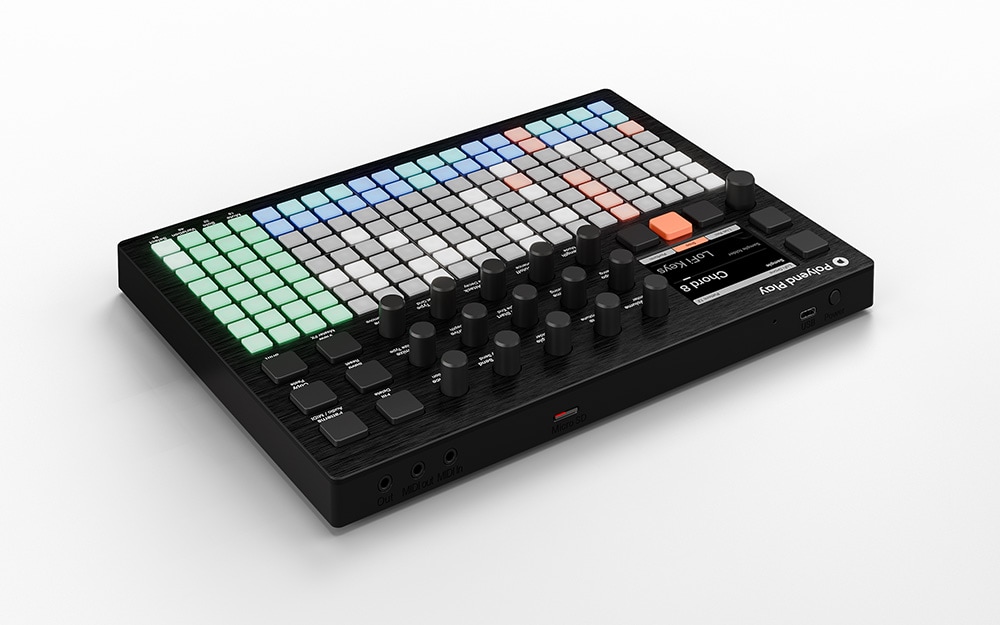

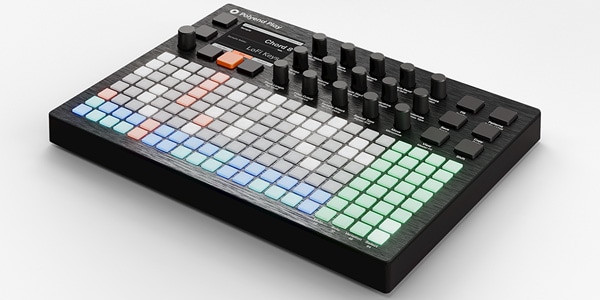

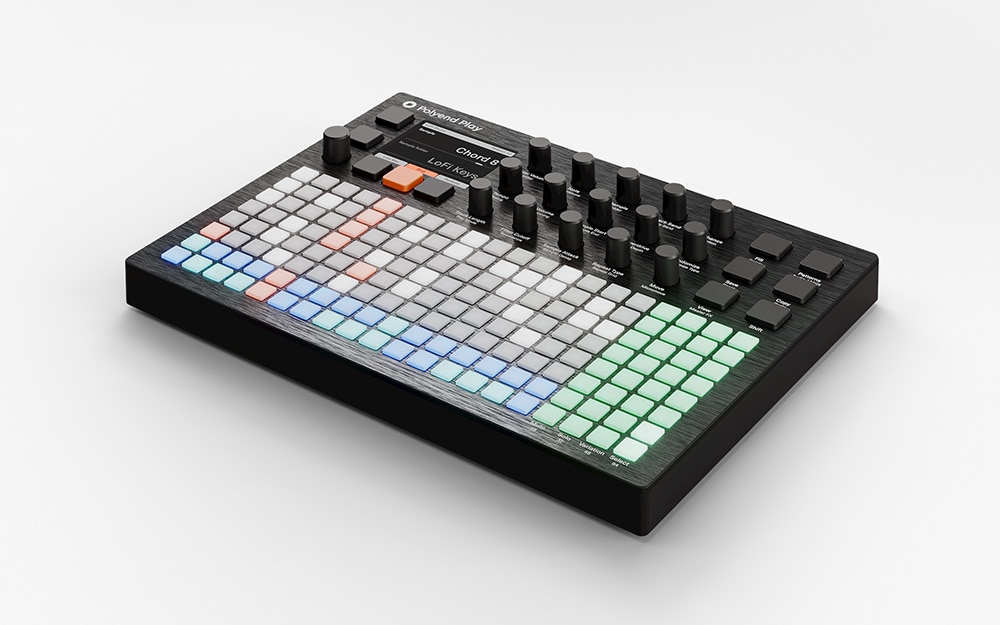

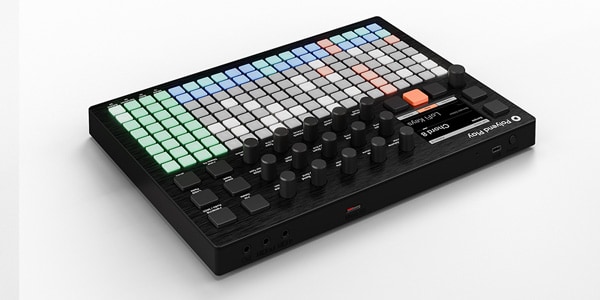

HARDWARE.

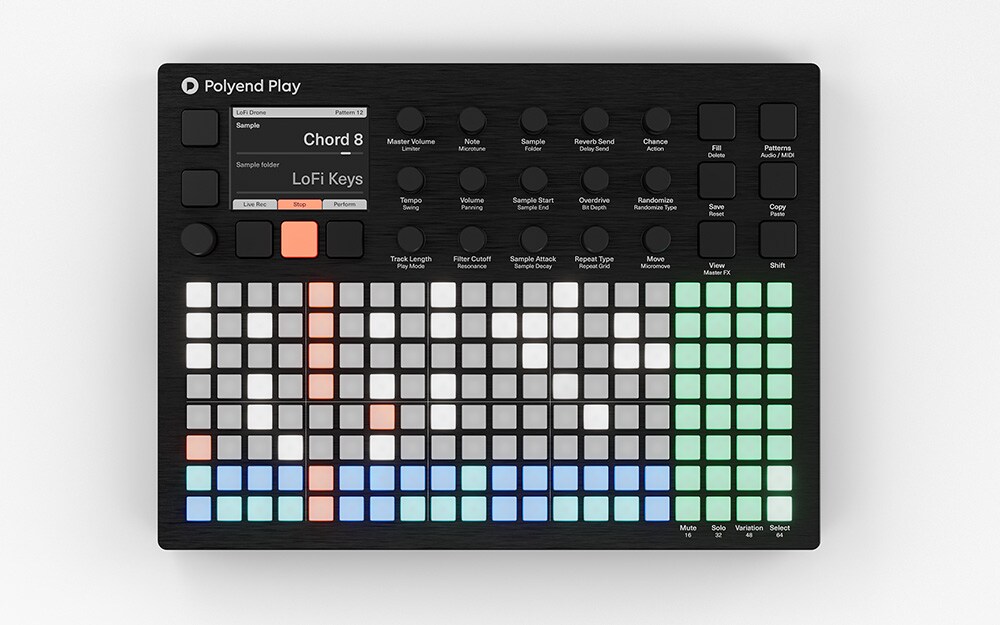

The 15 touch-enabled knobs correspond to a split screen, with taps once to preview parameters and double taps to switch between values ​​above and below the screen.

In addition to the 16 x 8 step sequence grid, there is a 4 x 8 control grid for mute, solo, variation, select, and keyboard note input.

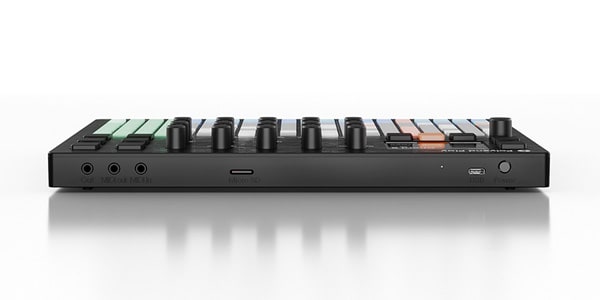

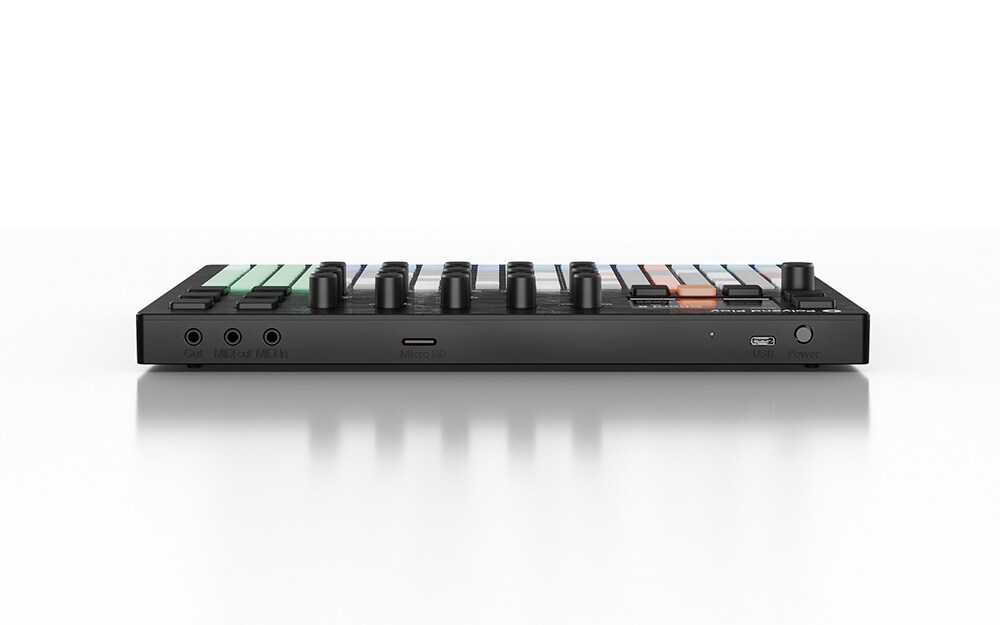

It has a 3.5mm mini jack MIDI input / output (a MIDI DIN adapter is included in the accessories). It has a MicroSD card slot (includes a 16GB card).

It works at 5V / 1A with a USB C port, works with a mobile battery, and can be taken anywhere.

The latest firmware is provided free of charge.

Technical specifications
Input / Output
Stereo out
MIDI input
MIDI output
USB-C

Included items
USB-A power adapter
USB-C cable (2m)
Stereo Mini 3.5mm-2 x Monaural Standard 6.3mm Adapter
Mini Jack-MIDI DIN Adapter (Type B)
16GB Micro SD card
Micro SD-USB-A Adapter

External dimensions and weight
External dimensions: 282 x 207 x 3.3 mm (including protrusions)
Weight: Approximately 1.2kg
