PANASONIC/H-X09 LEICA DG SUMMILUX 9mm / F1.7 ASPH. 超広角単焦点レンズ

PANASONIC / H-X09 LEICA DG SUMMILUX 9mm / F1.7 ASPH. 超広角単焦点レンズ

Leica DG large-aperture, ultra-wide-angle single focus lens that opens up new expressions with ultra-wide-angle and half-macro

■ LUMIX's first ultra-wide-angle half-macro shooting that opens up new expressions Large-diameter, ultra-wide-angle single focus lens "LEICA DG SUMMILUX"
-Dynamic perspective provides immersive photo and video expression and excellent depiction performance from the center to the periphery of the screen.
-Achieves half-macro shooting with a maximum shooting magnification of 0.5x (35mm format equivalent), achieving both blur expression and dynamic expression unique to ultra-wide-angle.

■ Advanced video performance that responds to high-quality video expression
-Adopting inner focus realizes high-speed and high-precision AF focusing, and also supports linear / non-linear switching during MF.
・ Natural image expression is possible by suppressing breathing phenomenon and controlling aperture microsteps.

■ Compact and lightweight, filter mounting compatible, specifications with excellent mobility and robustness
-A compact and lightweight design that you can easily take out, and a design that fits in your hand.
-Adopts a fluorine coating that prevents dirt from adhering to the lens surface, and is dust-proof and drip-proof *, low-temperature resistant specifications that enable full-scale field photography.

■ Mass: Approximately 130g (excluding lens hood, lens cap, and lens rear cap)
■ Maximum diameter x length: 60.8 mm x approx. 52.0 mm (from the tip of the lens to the reference surface of the lens mount)
■ Filter diameter: 55mm
■ Maximum shooting magnification: 0.25x (35mm equivalent: 0.50x)
■ Shooting distance range: 0.095m to ∞ (from the imaging surface)
■ Aperture format: 7-blade circular iris aperture
■ Open aperture / Minimum aperture: F1.7 / F16
■ Focal length: 9mm (35mm equivalent: 18mm)
■ Angle of view: 100 °
■ Mount: Compliant with Micro Four Thirds standard

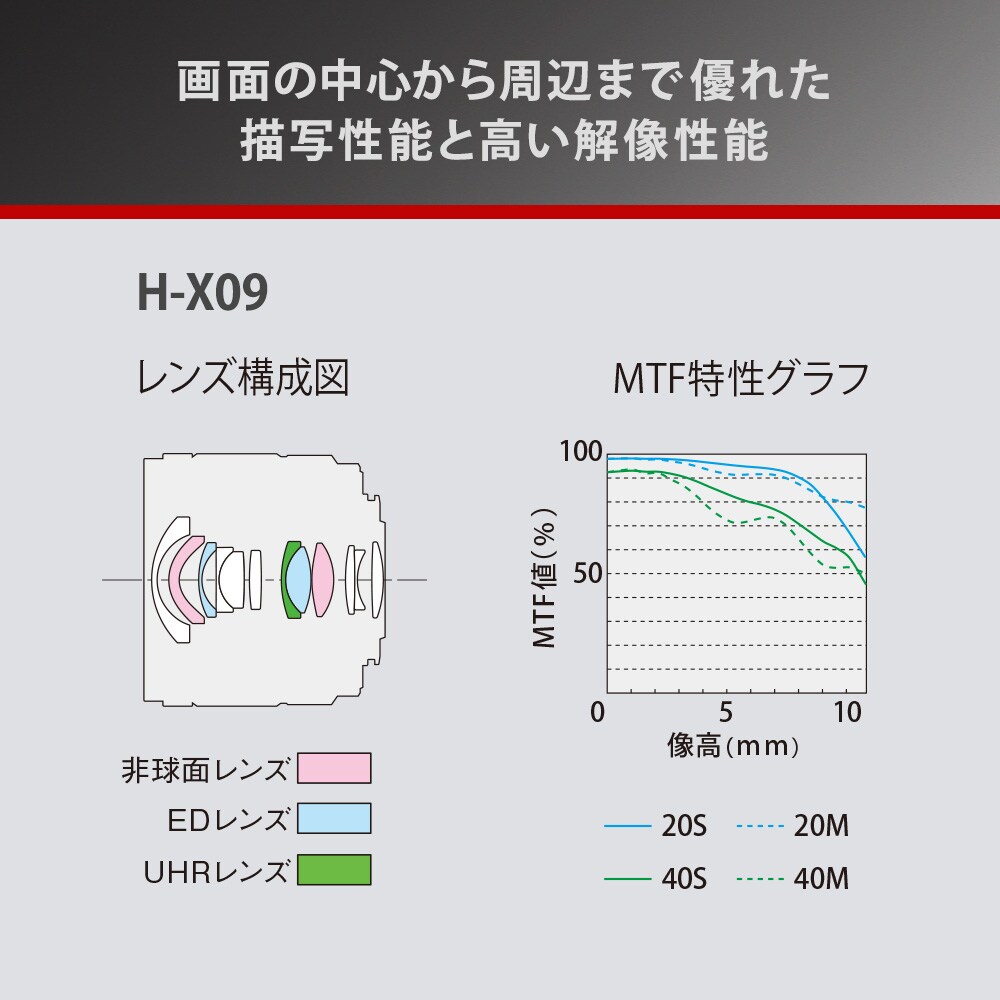

■ Lens configuration: 12 elements in 9 groups (2 aspherical lenses, 2 ED lenses, 1 UHR lens)

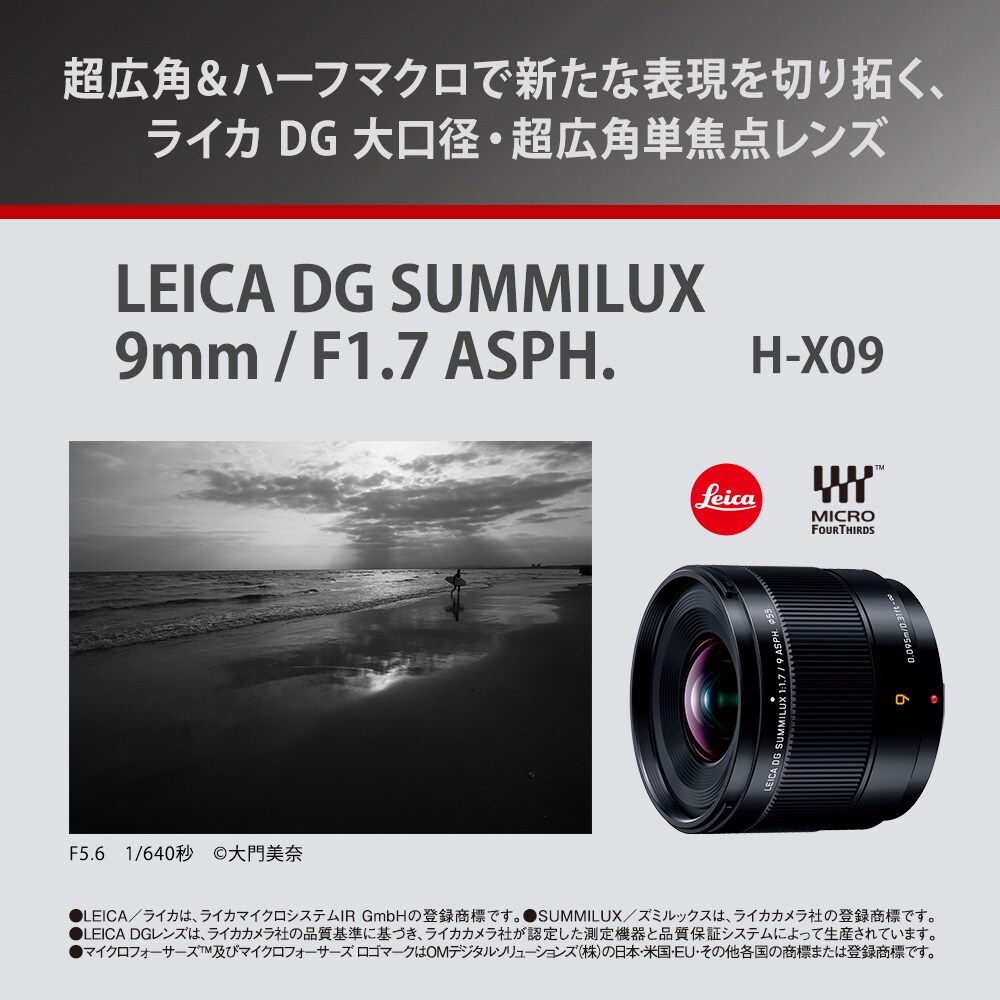

■ Lens name: LEICA DG SUMMILUX 9mm / F1.7 ASPH.
