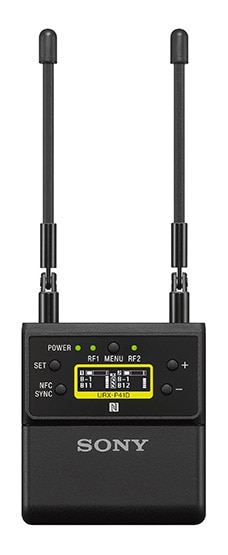

SONY / URX-P41D

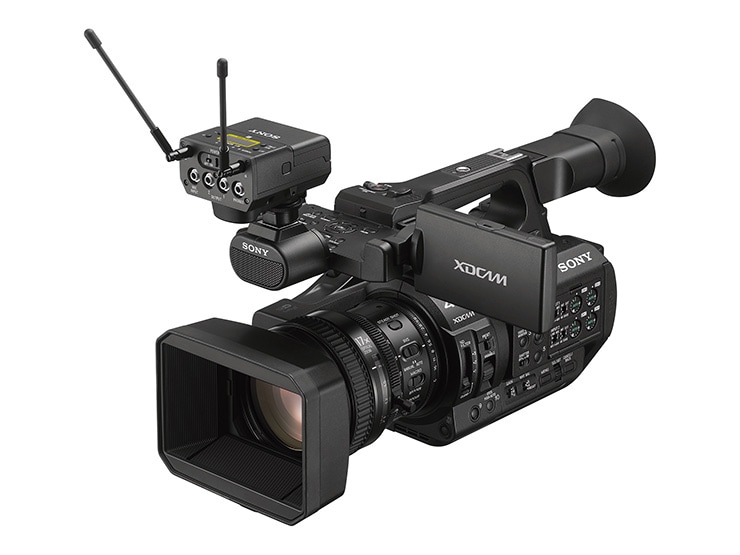

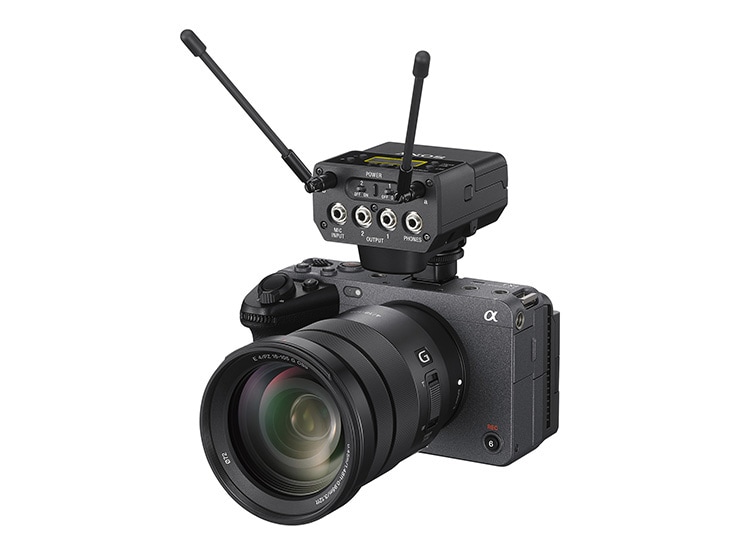

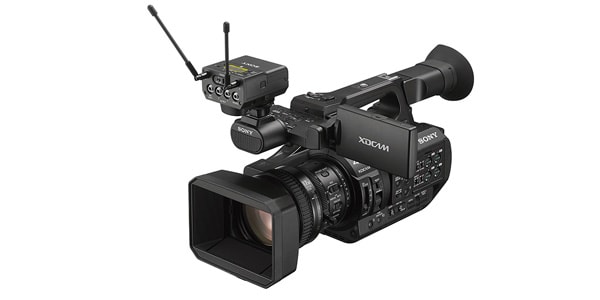

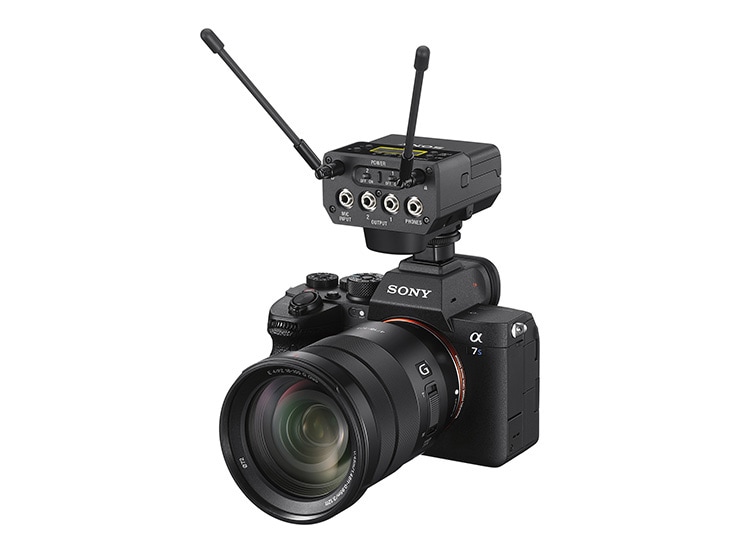

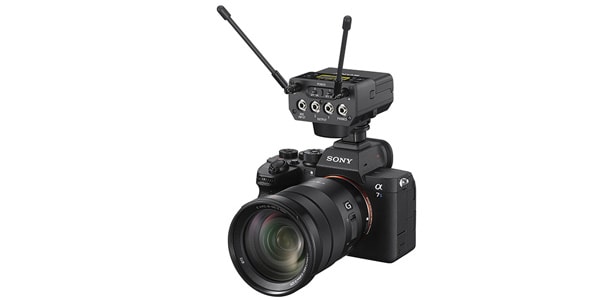

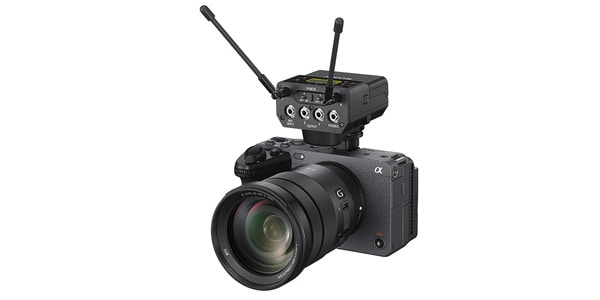

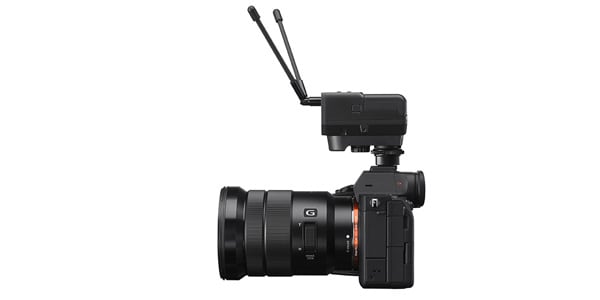

SONY UHF dynamic switching diversity system. Combined with a small camcorder or interchangeable lens digital camera, it can be used for a variety of purposes, such as sporting events and weddings.

■Features
・High-quality sound achieved through Sony digital audio processing technology
・NFC SYNC function for quick, easy and safe channel setting
・Dynamic switching diversity method (when operating in 2 channels)

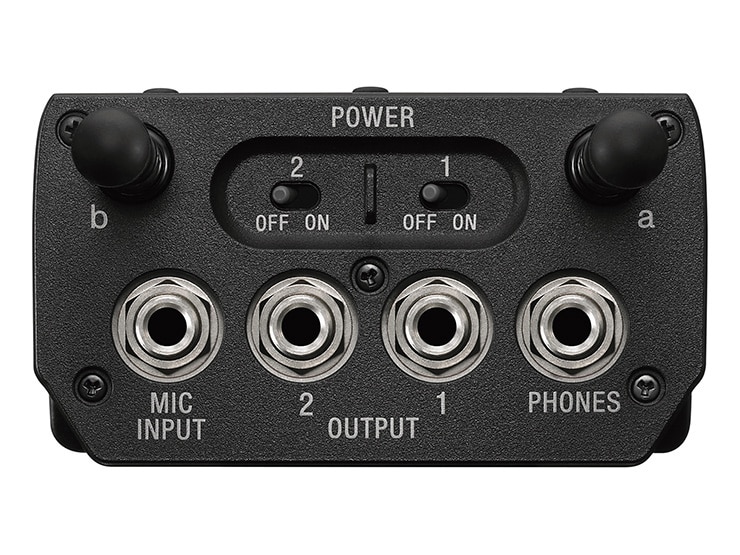

・External microphone input terminal
・Built-in mixing function that allows you to freely mix and output each input signal
・Channel memory function that allows you to quickly switch between two receiver frequencies
・Headphone output terminal for monitoring
・Convenient monitor mode when using the receiver as an ear monitor
・Ensures compatibility with Sony's WL-800 / UWP / UWP-D series
・Channel setting is possible even when combined with the UWP-D series equipped with infrared communication function
・Equipped with receiver output level adjustment function
・Equipped with output mode that allows output level setting over a wide range
・OLED display that is easy to see even outdoors
・USB terminal for external power supply
・Compatible with digital audio interface when combined with the optional multi-interface shoe adapter SMAD-P5

■Main specifications

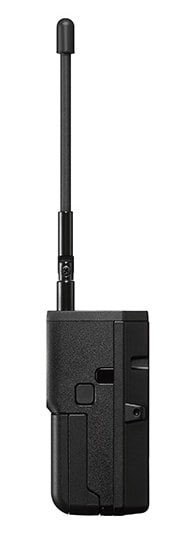

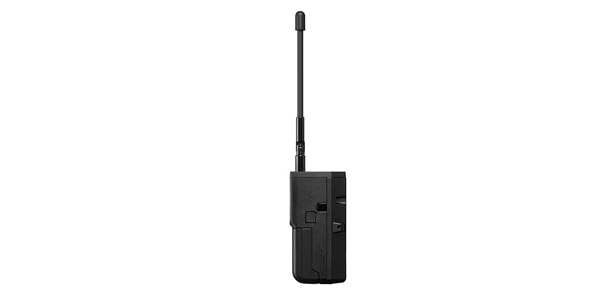

Receiver antenna: 1/4λ wavelength wire antenna (angle adjustable)
Audio output level: -60dBV ( φ3.5mm locking 3-pole mini jack, analog output, audio output level 0dB, OUTPUTMODE set to NORMAL) -20dBFS (external connection terminal, digital output, audio output level 0dB) -50dBV (external connection terminal, analog output, audio output level 0dB)
Audio output level variable range: -12 to +12dB (3dB steps)

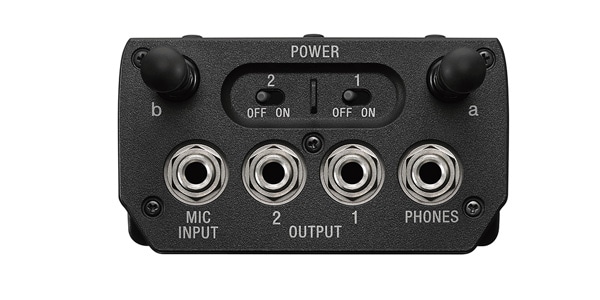

Audio output terminal: φ3.5mm locking 3-pole mini jack, external connection terminal
Headphone output level: Maximum 10mW (16-ohm)
Headphone output terminal: φ3.5mm Mini jack
Audio input level: -50dBV (-60dBV output, input frequency 1kHz, INPUT LEVEL set to 0dB)
Audio input terminal: φ3.5mm locking 3-pole mini jack
Reception method: Space diversity method (true diversity method when operating with 1 channel)
Local oscillator: Crystal-controlled PLL synthesizer
Reception frequency: 806.125-809.750MHz
Signal-to-noise ratio: 60dB (1kHz sine wave, 5kHz modulation), 96dB (1kHz sine wave, maximum)
Audio delay: Approx. 0.35 ms (analog output) Approx. 0.24 Milliseconds (digital output)
De-emphasis: 50μs
Reference frequency deviation: ±5kHz
Frequency response: 40Hz to 15kHz (typical)
Distortion rate: Less than 0.9% (1kHz sine wave, 5kHz modulation)
Tone signal frequency: When compander mode is set to UWP-D... 32.382kHz When compander mode is set to UWP... 32kHz When compander mode is set to WL800... 32.768kHz
Indicators: POWER, RF1/2
Allowable operating temperature: 0 to 50℃
Allowable storage temperature: -20 to +55℃
NFC function: Yes
IR SYNC function: Yes
USB port: USB Type-C
Power supply voltage: DC 3.0 V (2 AA alkaline batteries) DC 5.0 V (supplied from USB port)
Battery life: Approximately 4 hours and 30 minutes (alkaline batteries AA (LR6), 25°C, DISPLAYMODE set to AUTOOFF)
External dimensions (width x height x depth): 63 x 70 x 35 mm (excluding antenna)
Weight: Approximately 159 g (excluding batteries)
Accessories: Shoe mount adapter (1), belt clip (1), XLR-BMP conversion output cable for URX-P40/URX-P41D (2), stereo mini-BMP conversion cable for URX-P41D (1), Before use (1), warranty card (1)
