BOYA / BY-M1LV-U

Variations

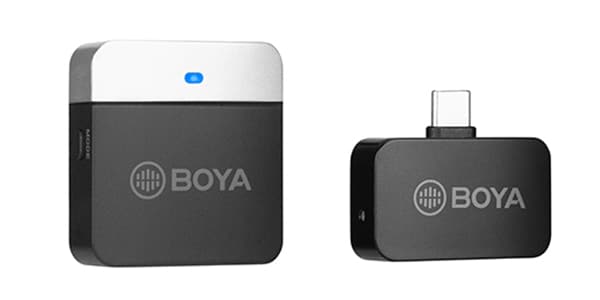

BOYA's wireless microphone for smartphones. The receiver is equipped with a USB Type-C terminal. It can be directly connected to Android smartphones, iPads, etc. Lightweight and small, it is easy to carry. Equipped with three levels of gain control. It also has a noise canceling function, making it easy to achieve clear sound quality. This wireless system is recommended for video shooting and video distribution such as Vlog, YouTube, TikTok, etc.

スマホ用ワイヤレスマイク

2.4GHZのデジタルワイヤレスマイク。
Vlog、YouTube、TikTok等の動画撮影、動画配信等におすすめです。

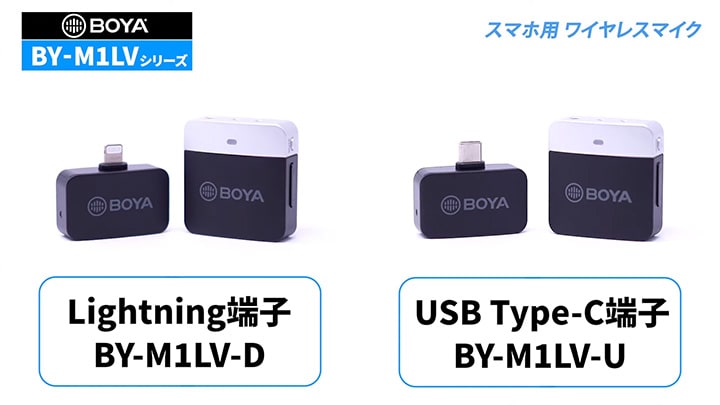

2種類のラインナップ

Lightning端子搭載のBY-M1LV-D
USB TypeC端子搭載のBY-M1LV-U

お手持ちのデバイスにあわせてお選びください。
簡単ペアリング

本体の電源を入れ、青いライトがゆっくり点滅すれば、ペアリング完了。
複雑な作業はせず、手軽にご使用いただけます。
マイクモニターモード

MODEスイッチをダブルクリックするとマイクモニターモードに切り替え可能。
自分の音声をモニタリングしながら撮影することもできます。
パッキングリスト

・ウィンドスクリーン
・ USB TypeC 充電ケーブル
・キャリングポーチ
・ペアリングピン

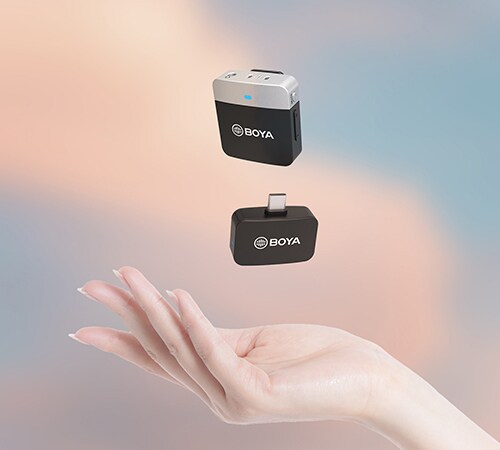

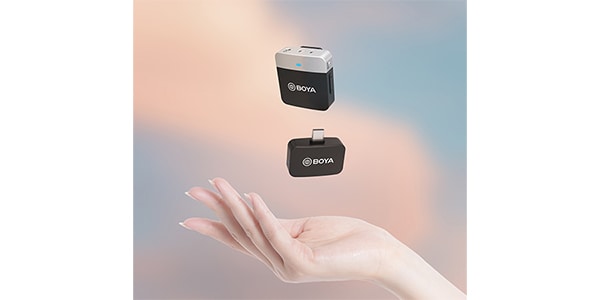

The BOYA BY-M1LV is an ultra-lightweight, ultra-compact, easy-to-use wireless microphone designed for mobile devices, providing detailed, superior sound.

The BY-M1LV-U receiver with USB-C output is compatible with devices with USB-C ports, such as Android smartphones and tablets.

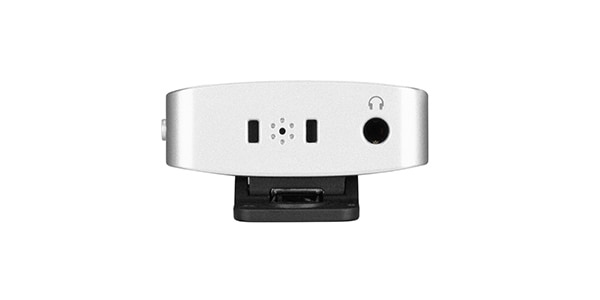

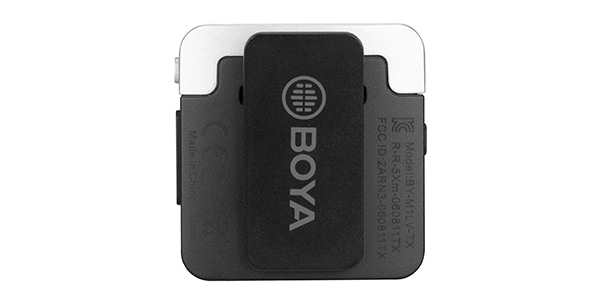

The BY-M1LV-TX clip-on transmitter with a built-in omnidirectional microphone captures sound from all directions clearly. Utilizing groundbreaking two-way audio technology with ear return monitor, you can adjust the volume at any time while recording, as well as adjust tone, speed, and intonation in real time.

Gain control, headphone volume control, and mute functions give you complete control over your own sound. It can be used for 6 hours on a full charge. The BOYA BY-M1LV system is the perfect solution for live streaming, content creation, mobile journalism, and more.

-Ultra-compact and lightweight
-Real-time monitoring
-Working distance up to 100m
-High sound quality
-Plug & play, completely wireless recording
-3-stage gain control settings
-6 hours of continuous operation

BY-M1LV-TX
Transmission method: 2.4GHz
Modulation method: GFSK
Operating range: up to 100m (without obstacles)
RF output power: 3.16mW
Microphone polar pattern Built-in microphone: Omnidirectional
Frequency response: 50Hz to 8.5KHz
SNR >70dB
Maximum SPL Built-in microphone: 110dB SPL
Sensitivity Built-in microphone: -39dB±2dB
(0dB=1V/Pa@1kHz)
Power requirements: Built-in lithium-ion battery or USB< DC 5V
Antenna: PIFA antenna
Battery life: Approximately 6 hours
Audio output: 3.5mm jack
Weight: Approximately 18g
Dimensions: 40×38.2×14mm
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 55

BY-M1LV-U-RX
Transmission method: 2.4GHz
Modulation method: GFSK
Operating range: Up to 100m (without obstacles)
RF output: 3.16mW
Audio output: USB-C connector
Power requirements: Supplied from USB< device
Antenna: PIFA antenna
Noise reduction function: Yes
Weight: Approximately 10g
Dimensions: 23×38.2×14mm
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 55
