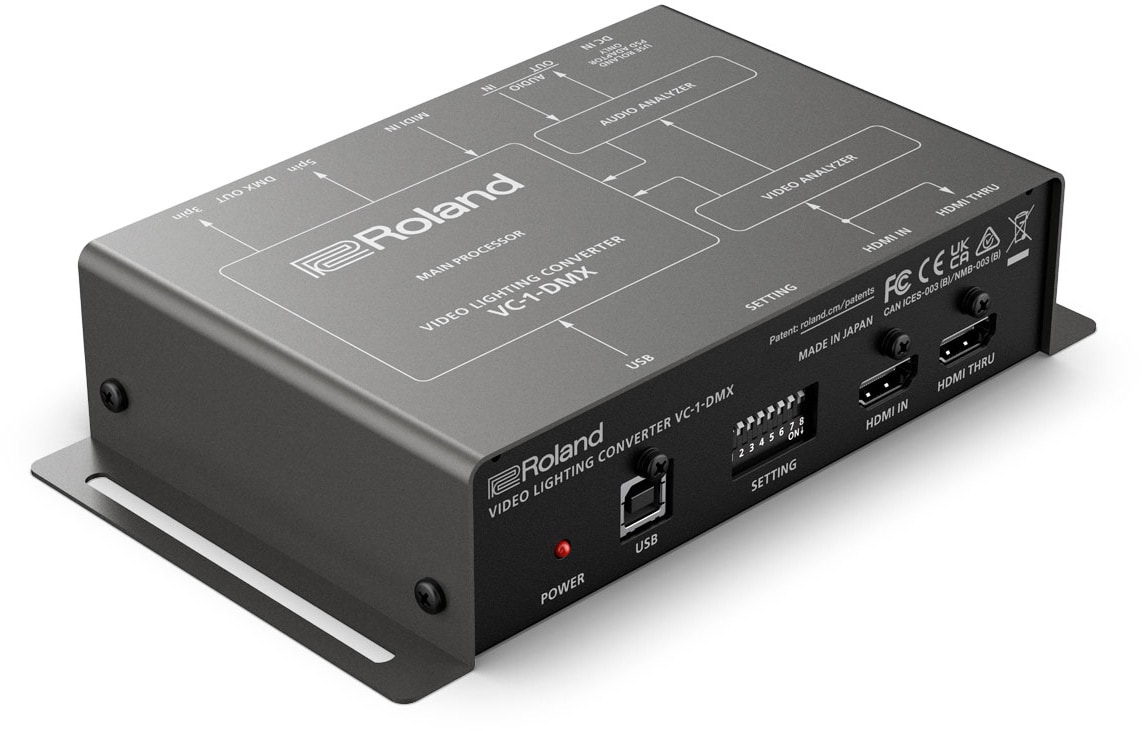

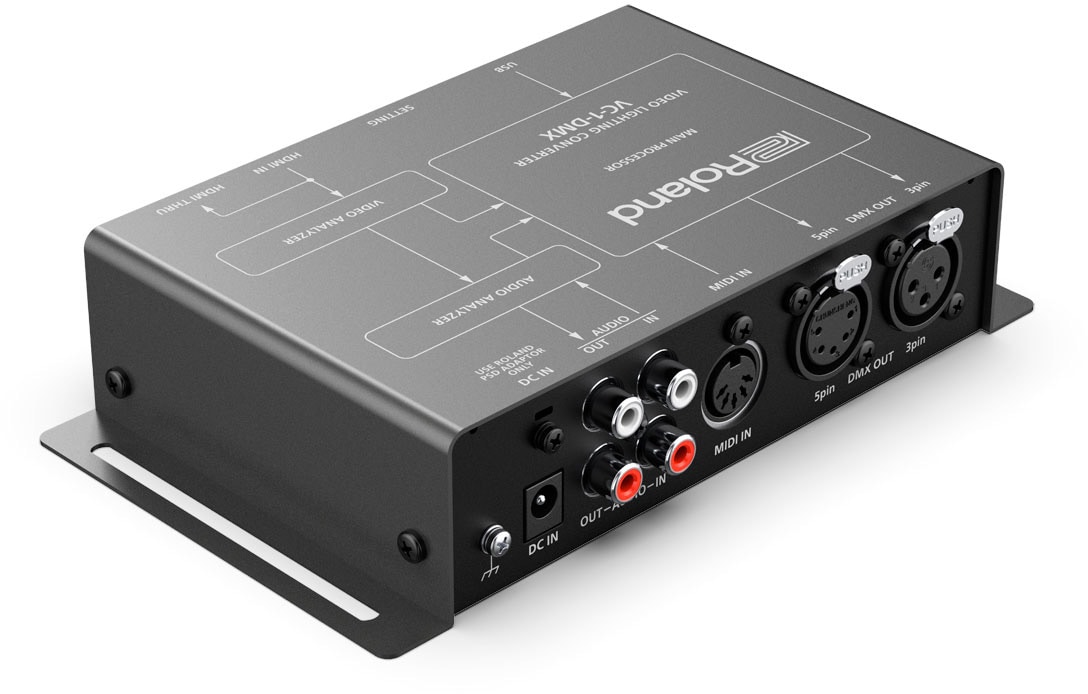

ROLAND / VC-1-DMX

The lighting control signal ""DMX"" is automatically generated based on video and audio signals, allowing you to automatically control lighting equipment and create attractive spatial effects using light, even without a specialized lighting operator.

Video

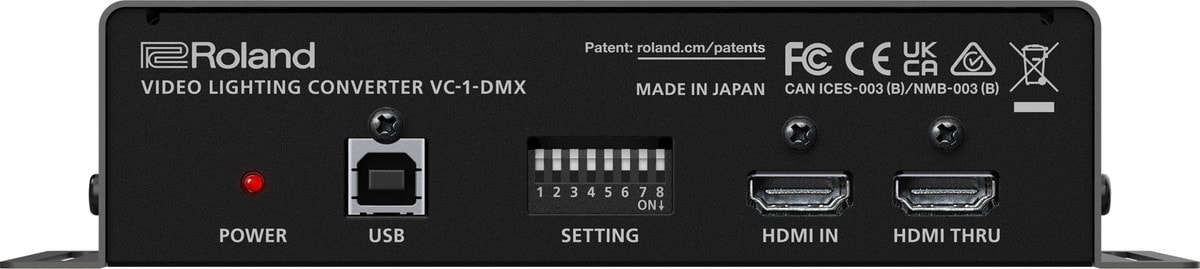

■Input terminal HDMI IN
Terminal: HDMI Type A
*HDCP compatible
*Multi-format compatible
■Output terminal HDMI THRU
Terminal: HDMI Type A
■Input/output video format: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,
720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz),
WXG A (1280×800/60Hz), HD (1280×720/60Hz), SXGA (1280×1024/60Hz), FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz), UXGA (1600×1200/60Hz), FHD (1920×1080/60Hz) *Refresh rate is the maximum value for each resolution *CEA-861-E, VESA Compliant with DMT Version 1.0 Revision 11

Audio
■Input terminals:
AUDIO IN terminal: RCA pin type
HDMI IN terminal: HDMI Type A

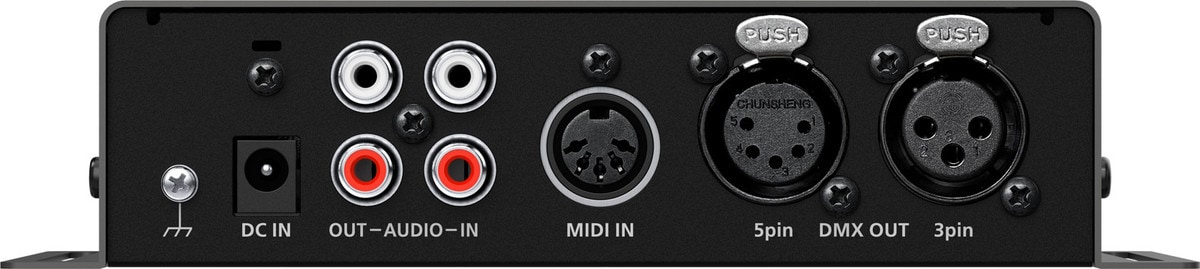

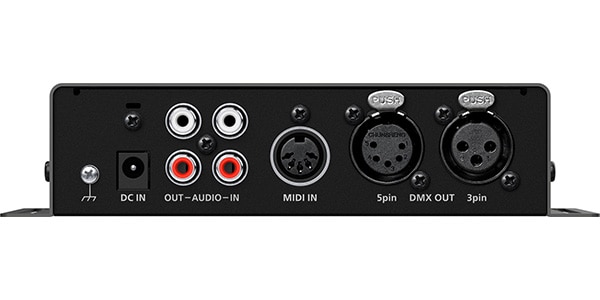

■Output terminals
AUDIO OUT terminal: RCA pin type
HDMI THRU terminal: HDMI Type A
■Digital audio format Linear PCM, 48kHz, 24bit, stereo
■Audio processing sample rate: 48kHz, 24bit
■Nominal input level AUDIO IN terminal: -10dBu (Maximum input level: +8dBu)
■Nominal output level AUDIO OUT terminal: -10dBu (Maximum output level: +8dBu)
■Input impedance AUDIO IN terminal: 15KΩ
■Output impedance AUDIO OUT terminal: 1kΩ

DMX
■Output terminals
DMX OUT 3pin terminal: XLR type (3pin)
DMX OUT 5-pin terminal: XLR type (5-pin)
■DMX channels 512 channels (1 universe)
■Other:
Control terminals MIDI IN terminal
USB terminal
■Switches
SETTING switch: 8-contact switch
■Indicators:
POWER indicator
Functions Video-synchronized lighting control function
Audio-synchronized lighting control function
MIDI-synchronized lighting control function
Lighting change time adjustment function
HDMI audio de-embedder
■Power supply AC adapter
Current consumption 1,000mA
Power consumption 5.7W
■Accessories ""Safety precautions"" leaflet
Instruction manual
AC adapter
Plug holder
Rubber feet
■Operating temperature: 0 to +40℃
■SIZE: 180(W)x115(D)x41(H) mm 570g (main unit only)
