Blackmagic Design / HYPERD/PTSHD

A recorder and player designed for use on Blackmagic Design desks.

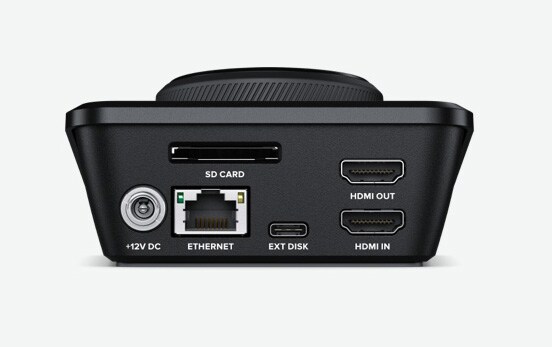

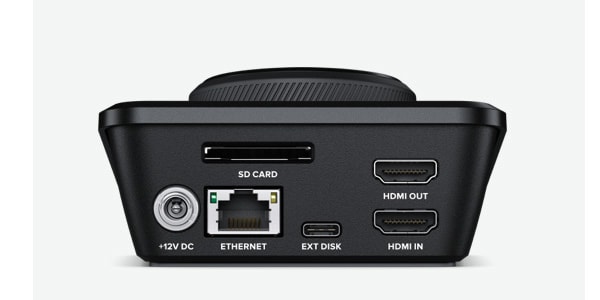

Connections
■HDMI Video Input: 1
■HDMI Video Output: 1
■HDMI Audio Input:
8ch Embedded Audio
■HDMI Audio Output:
8ch Embedded Audio
■Recorder Configuration:
HDMI output via user interface or Blackmagic HyperDeck Ethernet Protocol
■Ethernet: 1Gb/s
■Computer Interface:
USB Type-C 3.0 x1 (up to 5Gb/s) for external drive recording, software configuration and updates
Formats
■SD Video Formats:
525i59.94 NTSC, 625i50 PAL
■HD video formats:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
■2K DCI video formats:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
■Audio sampling:
TV standard sample rate (48 kHz/24-bit)
■Video sampling:
4:2:2 YUV
■Color precision: 10-bit
■Color space:
REC 601, REC 709
■Multirate Support:
SD and HD auto-detection

Media
■Media:
1x SD card slot
1x USB-C 3.0 expansion port for external connections
SD, HD, 2K DCI recording
Click here for a list of compatible media
■Media type:
UHS-I and UHS-II SD cards
■Media format:
Can be formatted to exFAT (Windows/Mac) or HFS+ (Mac)
■Supported codecs:
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime
ProRes Proxy QuickTime (all formats up to 1080p60).
DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45
DNxHD 45 MXF in 720p and 1080p HD formats up to 60fps.
H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit
All formats up to 1080p60 in H.264 Low 4:2:0 8-bit.

Control

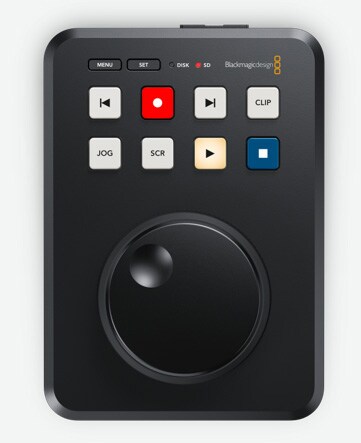

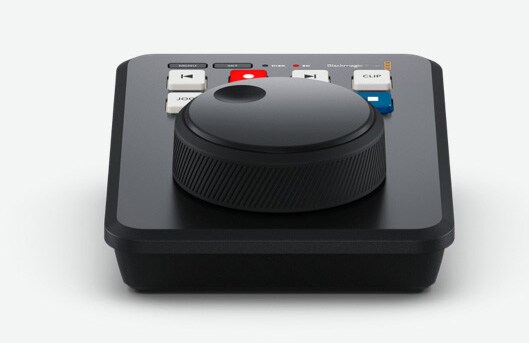

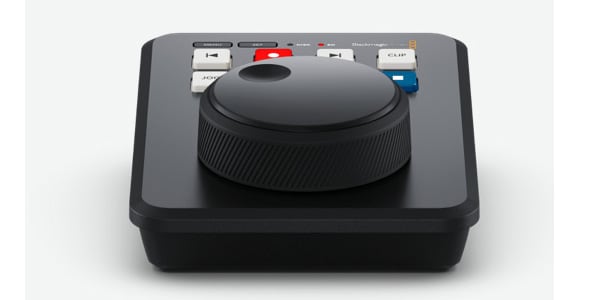

■Built-in control panel:
10 buttons for transport and device control
Metal search dial
■External control:
HDMI start/stop, timecode trigger
Supports remote FTP file upload including Blackmagic HyperDeck Ethernet Protocol
Teleprompter
■Multi-rate support:
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p. Default is highest rate.
■Supported file formats:
Rich text (.rtf). Most rich text formats supported. Plain text (.txt)
Software
■Included software
Blackmagic OS
Blackmagic HyperDeck Setup
During system startup or via Blackmagic HyperDeck Setup via USB port.
At system startup or via Blackmagic HyperDeck Setup via the USB port.

■Operating systems
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later versions
Windows 10, 11.

■Display
LED indicator light above the media slot

■Power requirements
Power source:
1 x 12V DC input with 5.5mm locking barrel (for external power and battery)

■Power consumption: 20W (max)

■SIZE: 98(W)x49.5(H)x137.3(D)mm 375g

* The warranty period for this product is 1 year from the manufacturer.
