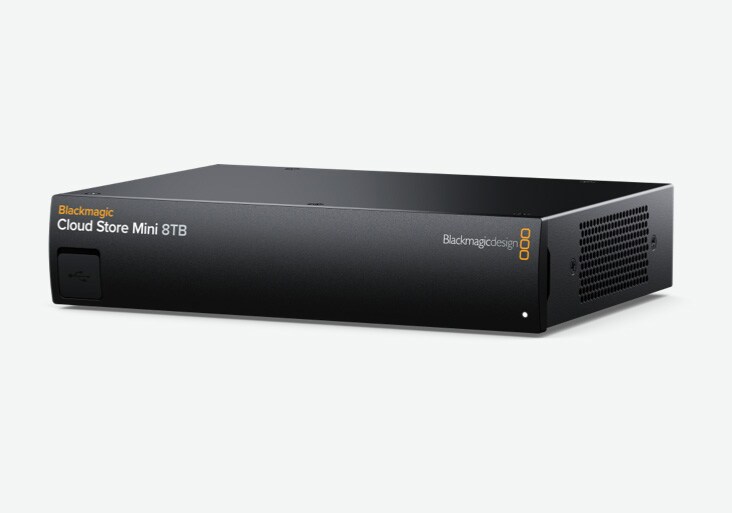

Blackmagic Design / Blackmagic Cloud Store Mini 8TB

A compact, high-speed network storage solution with a rack-mounted design. It is also possible for many users to access the file at the same time!

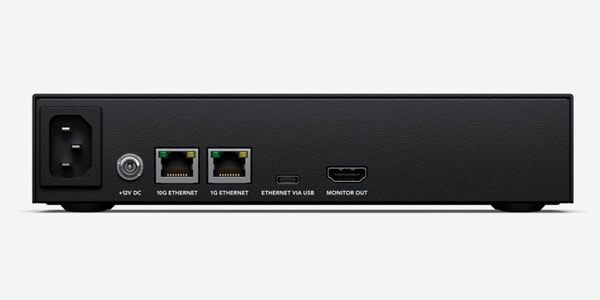

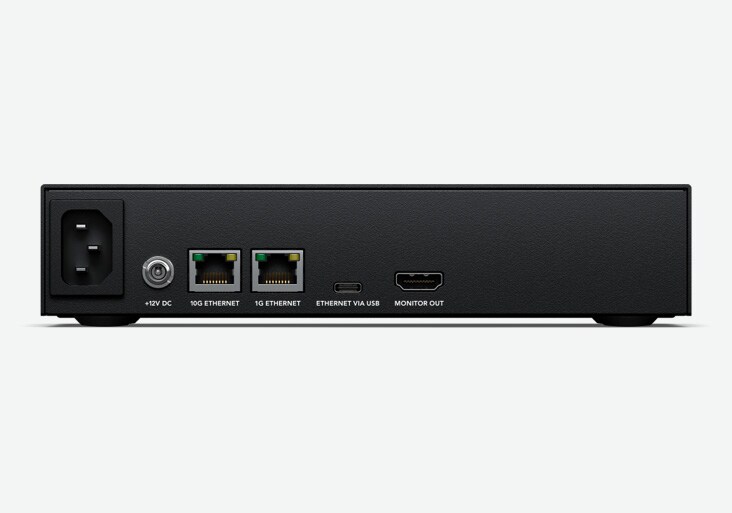

connection
■ 10G Ethernet port:
100/1000 / 10G BASE-T x1
■ 1G Ethernet port:
100/1000 BASE-T x1
■ USB-C port:
USB 3.0 x1 (up to 5Gb / s). Supports Ethernet over USB
■ HDMI monitoring output: 1
■ Computer interface:
USB-C or Ethernet (shared file access, configuration, software updates)

File sharing protocol
■ Protocol: SMB
■ Computer connection: up to 50
Synchronize with the cloud:
■ Compatible services:
Dropbox
■ Storage type:
M.2 NVMe SSD
■ Total capacity: 8TB

HDMI monitoring output format
1080p50, 1080p59.94, 1080p60

display
■ Monitoring output display:
Device name, storage capacity and usage, cloud sync status
User activity, hardware status, storage map
Network data rate graph

■ Status indicator:
If the LED on the front panel is white, it is working properly.
If it is red, it means that the disc has a problem.

Device control
■ External control:
USB-C or Ethernet
(Configuration and software updates)

software
■ Bundled software:
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade with Blackmagic Cloud Setup via USB-C

■ Operating system:
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later
Windows 10, 11.

Power conditions
■ Power supply:
Built-in 100-240V AC 50 / 60Hz (IEC C14) power input
■ Power input:
IEC C14 main power input x1
12V DC input (with 5.5mm lock ring) x1
■ Power consumption: 35W
■ SIZE: 210.5 (W) x44.2 (H) x155 (D) mm 1.17g
