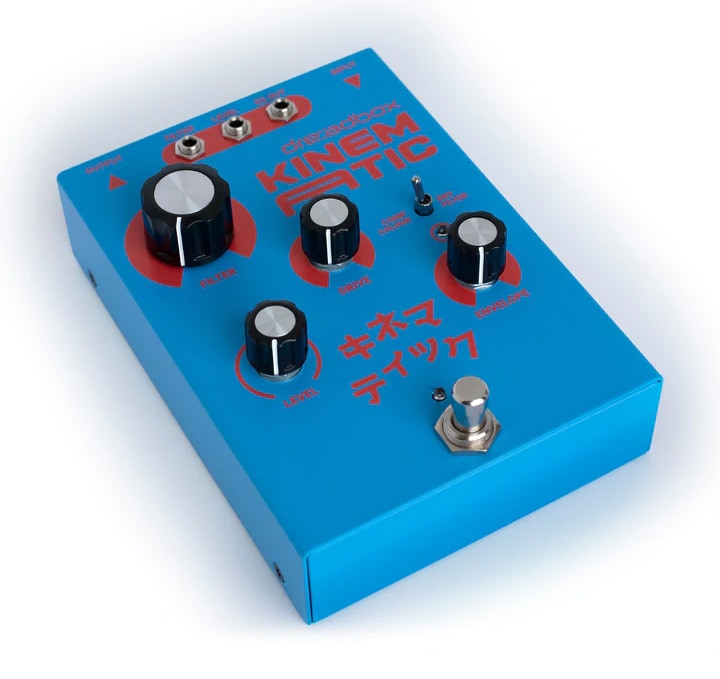

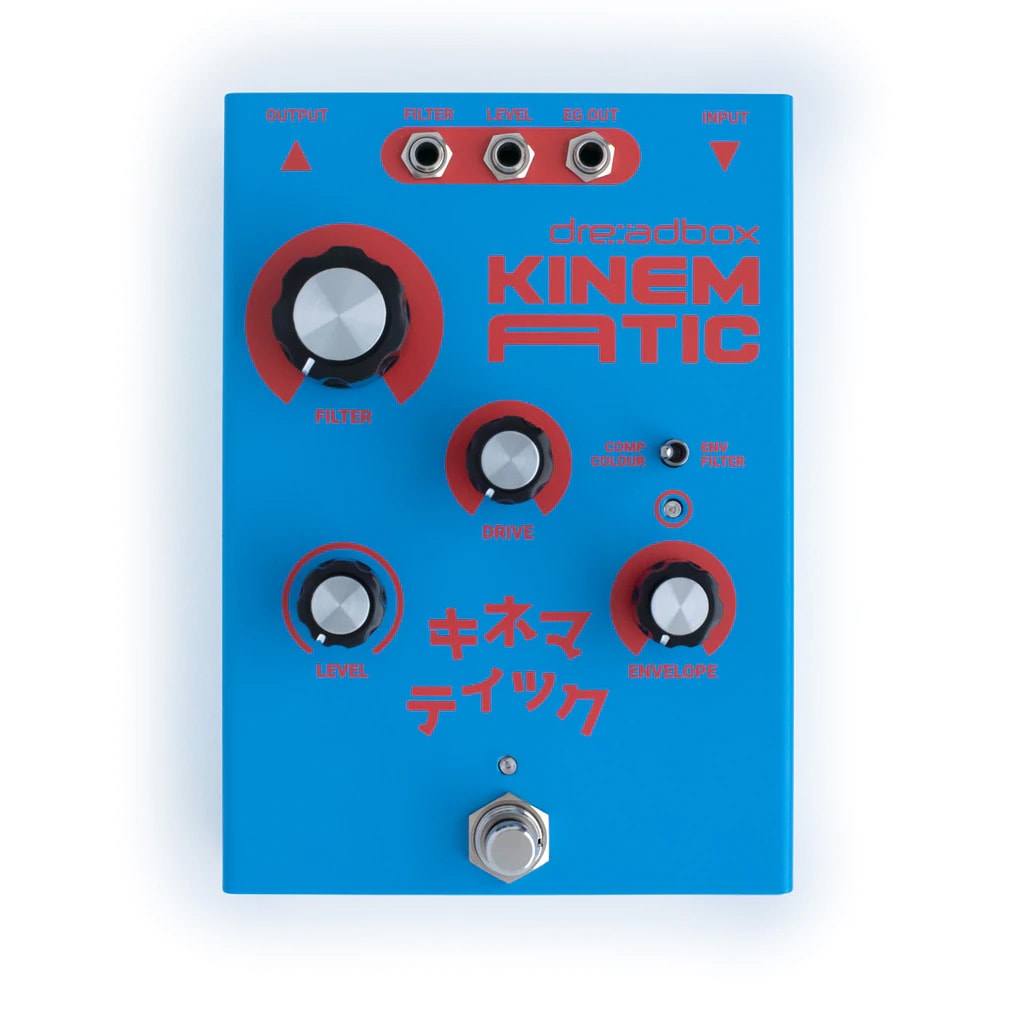

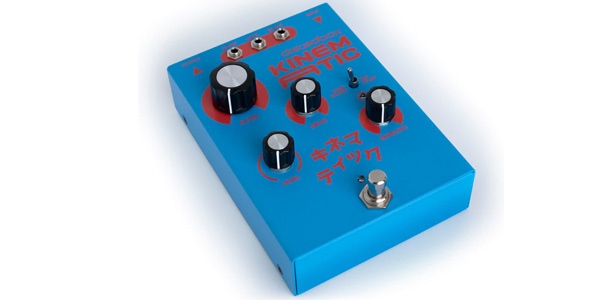

Dreadbox / Kinematic

An effect pedal equipped with a VCA-based compressor and envelope filter.

Dreadbox KINEMATIC is an effect pedal with a VCA-based compressor and envelope filter that is perfect for instruments, synthesizers, and can also be combined with Eurorack.

VCA-based fully analog compressor
Band boost filter
Extreme compression ratio
Envelope filter
Low pass filter
Slow envelope curve
Post-diode overdrive
Up to +18db level boost
True tone maker
3 CV patch points for modular fans
Technical specifications
Circuit configuration
Analog circuit

Bypass specification
COMS

Audio
Mono

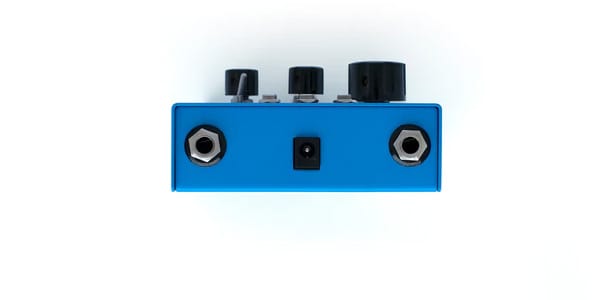

Input and output
Input/output: TS unbalanced 6.3mm standard jack
Filter / Level / EG output: 3.5mm mini jack

Power supply
BOSS style 2.1mm center negative (not included)

Dimensions (cm)
14 x 10 x 5.6

Current consumption
85mA
