Pioneer DJ / CM-S58T-K Speaker for facilities (pair)

Pioneer Professional Audio's CM series of commercial speakers now includes surface mount speakers. They combine natural sound with ease of installation, and also have a design that matches the look of a variety of facilities.

●CM-S58T
Type: 2-way bass reflex, passive
Frequency range (-10dB, Typical): 53Hz to 20kHz
Output sound pressure level (1W/1m): 91dB
Rated impedance: 8Ω
Maximum input power (RMS*1/Program): 90W/180W
Transformer tap: 70V 60W/30W/15W/7.5W
100V 60W/30W/15W
Nominal directivity angle: 100°H×100°V
Maximum output level *2: 117dB (peak)

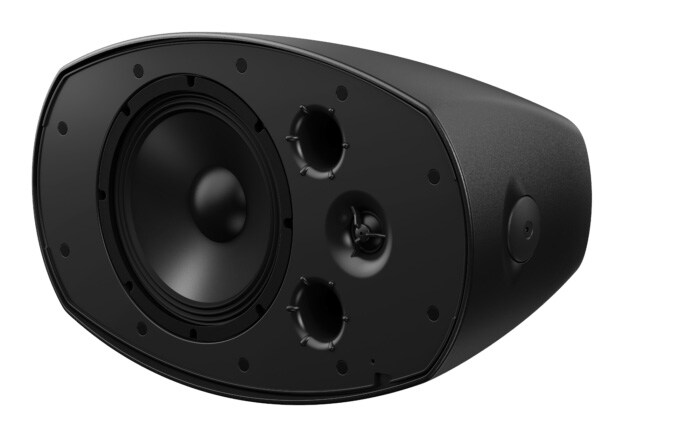

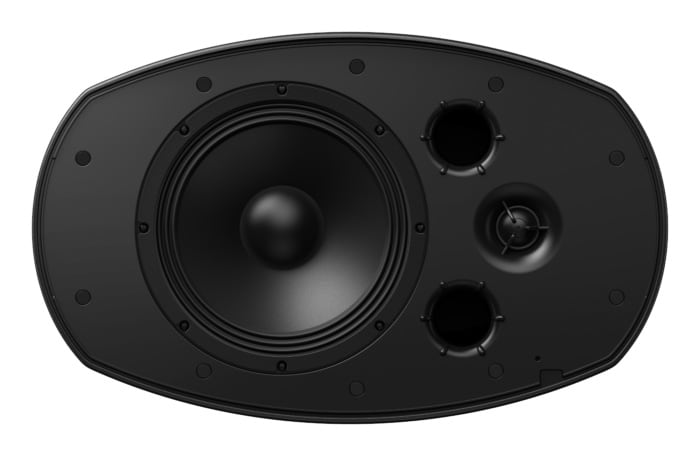

Components: LF 8-inch (200mm) cone
HF 1-inch (25mm) silk dome tweeter
Connector: Euroblock (4 pin) x 1
(Input: +/-, Loop-through: +/-)
Dimensions (width x height x depth): 282.0 x 457.8 x 252.4 mm
Weight (1 unit, including U bracket): 7.5 kg

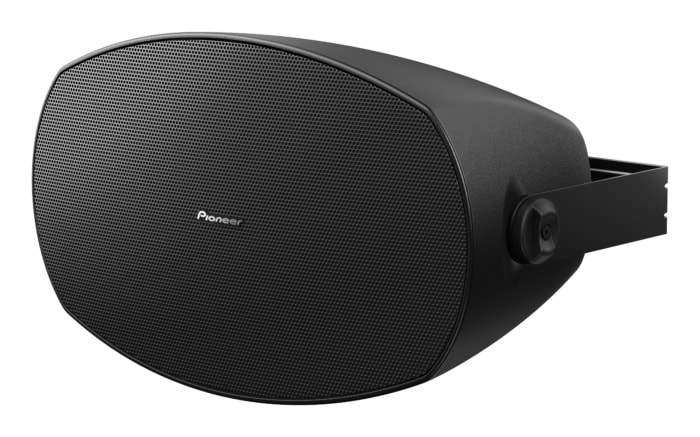

Installation: 1 U bracket included

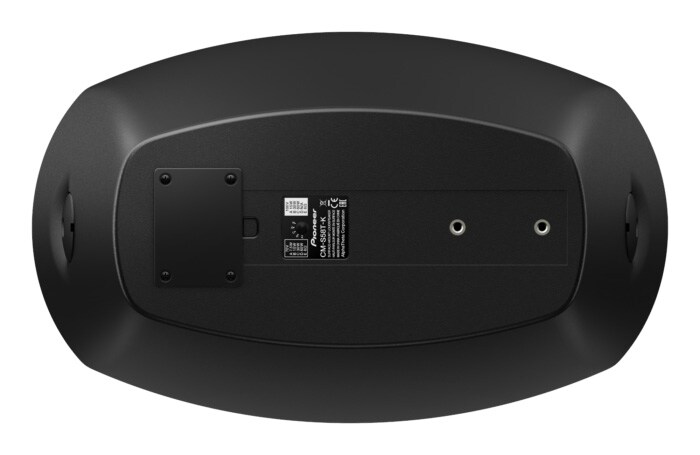

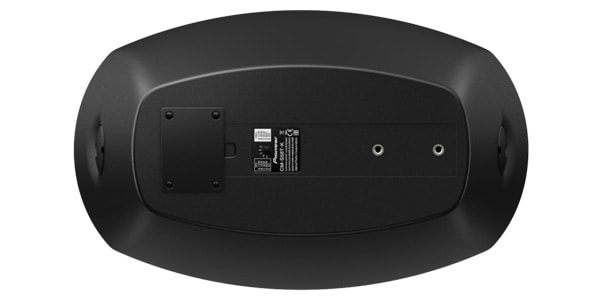

Equipped with 2 M6 mounting nuts on the back

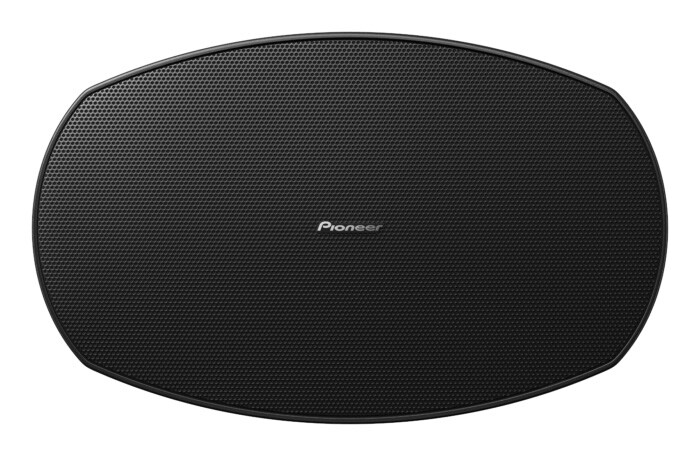

Grill: Aluminum punching net
Enclosure: PP
Dustproof/waterproof: IP54
Color: CM-S58T-K: Black
