ELATION / DMX10-5

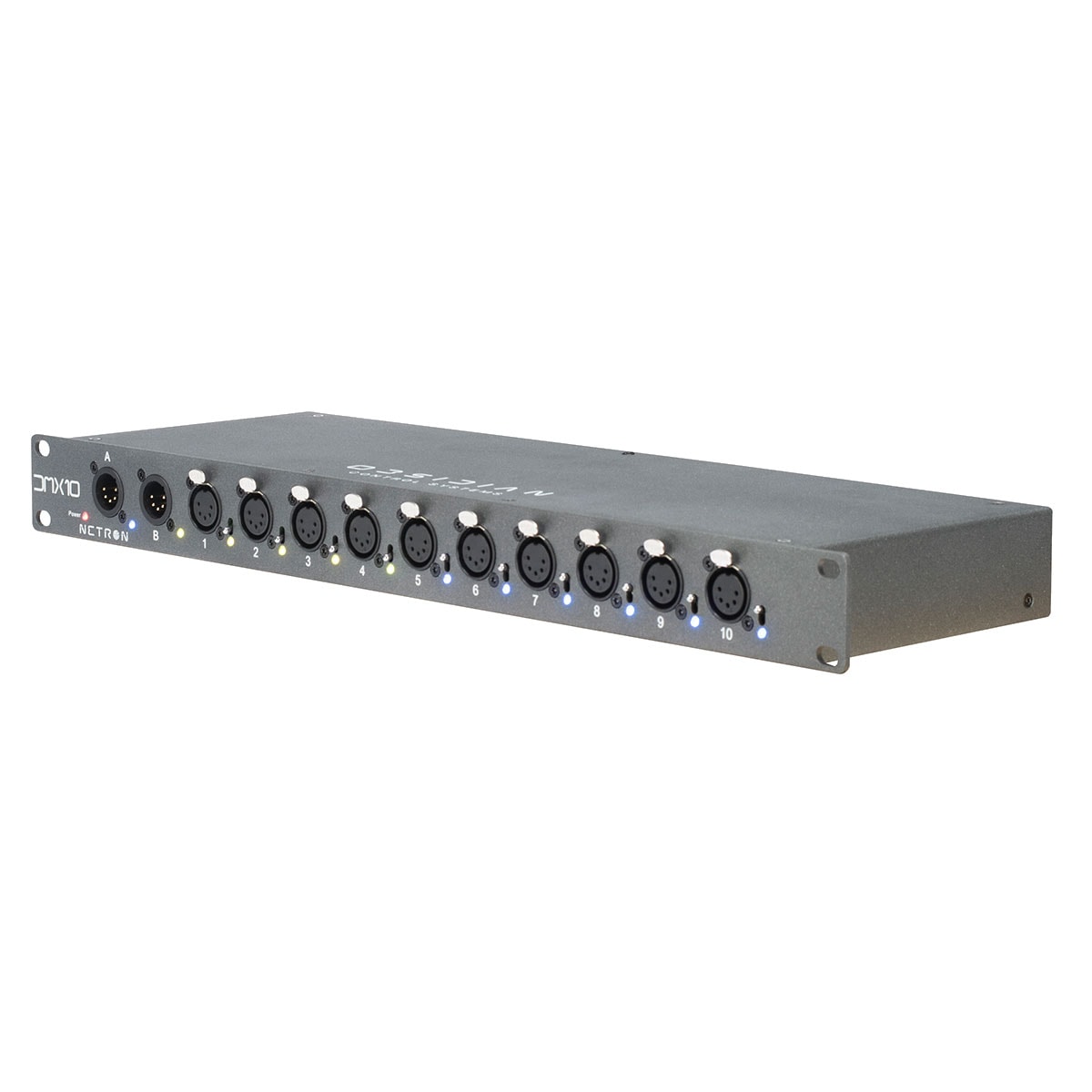

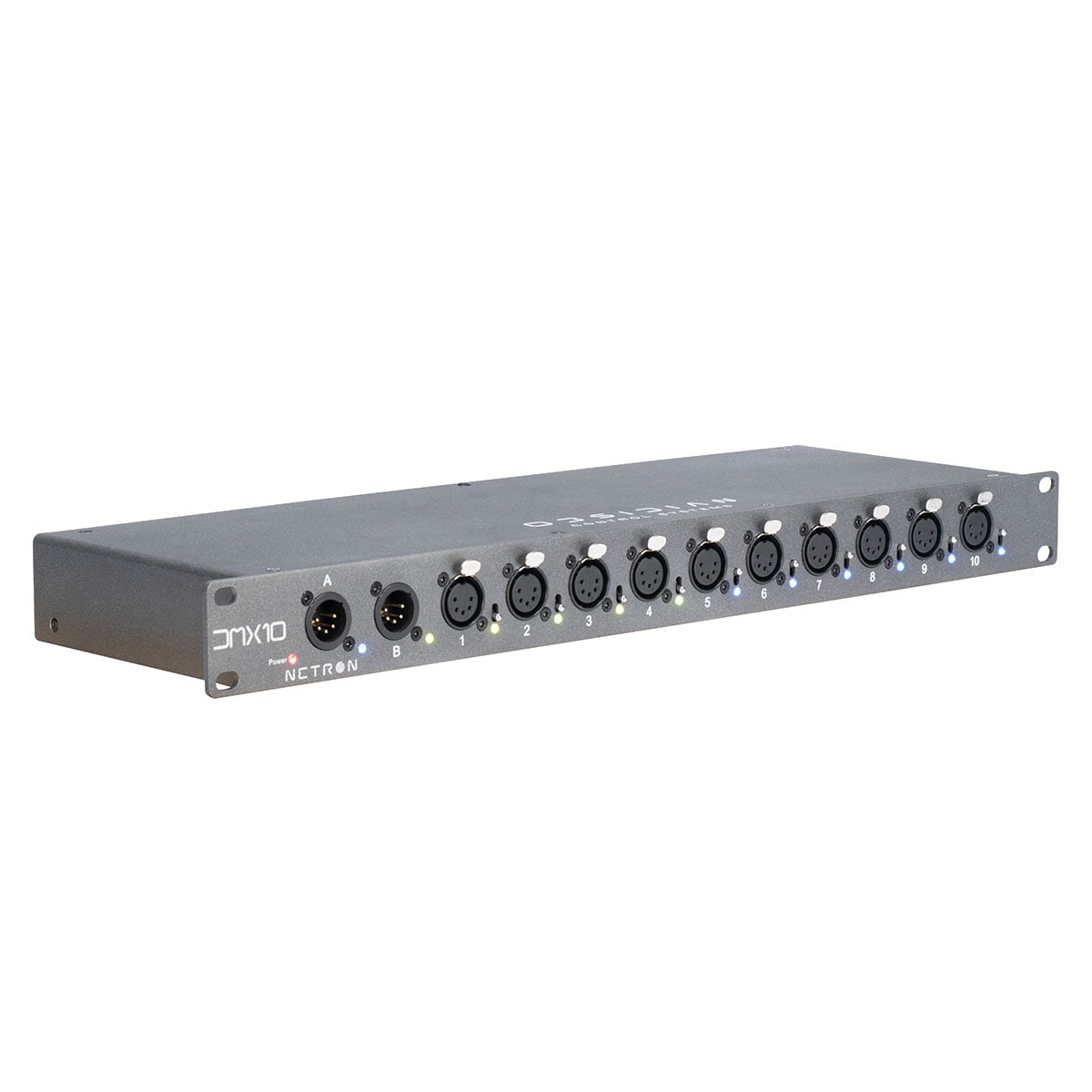

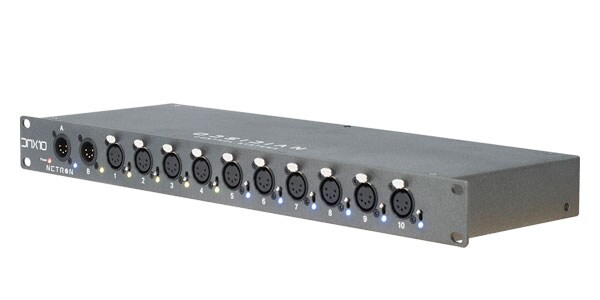

The DMX10-5 is a rackmountable 10-port DMX splitter. It has dual inputs and freely assignable 5-pin XLR DMX outputs.

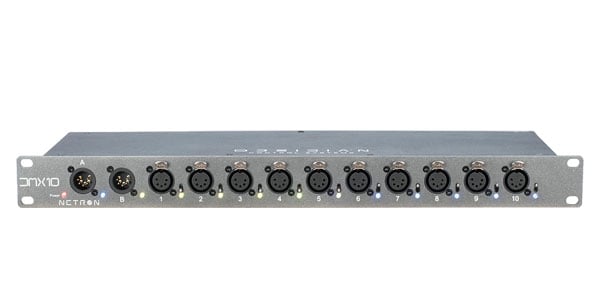

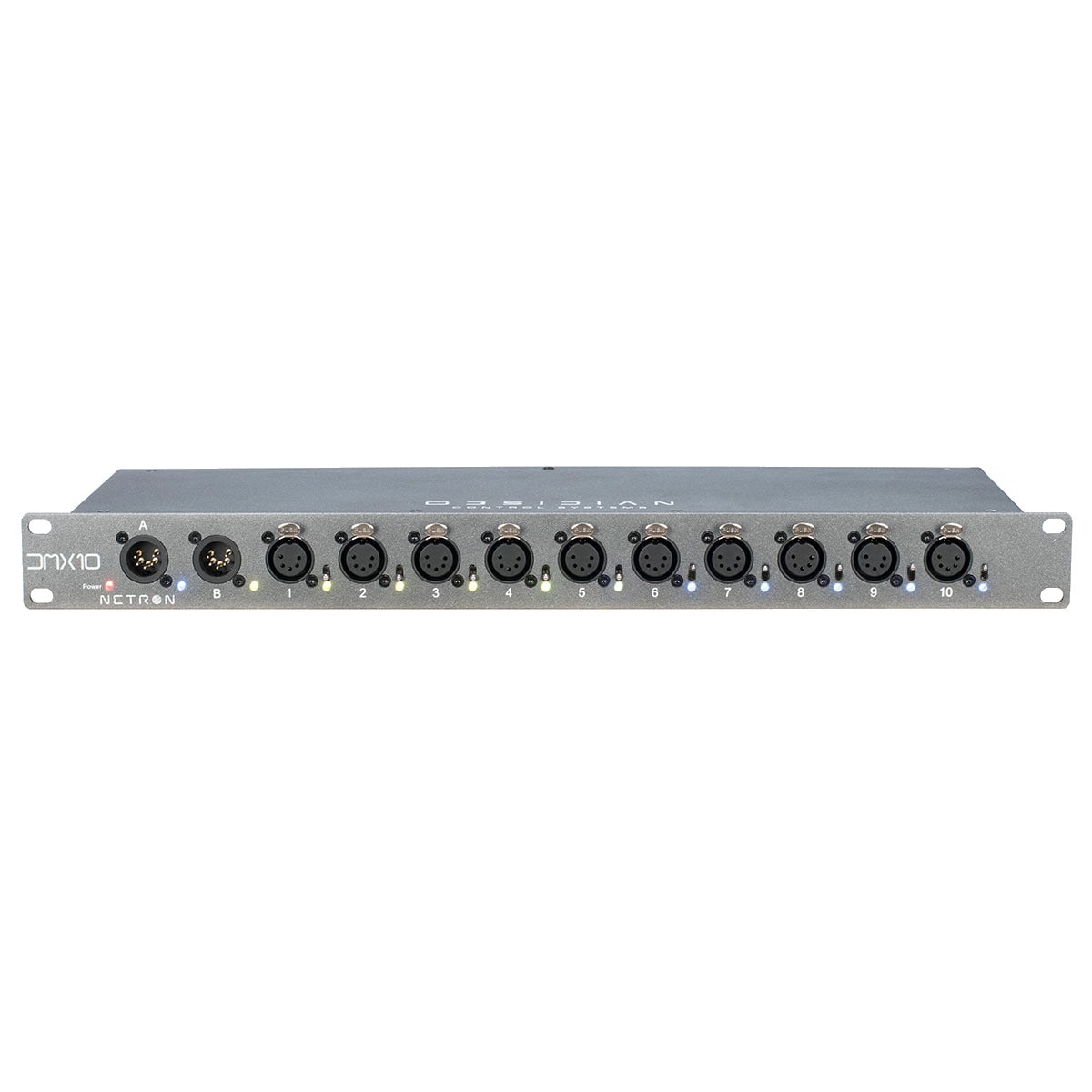

Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs

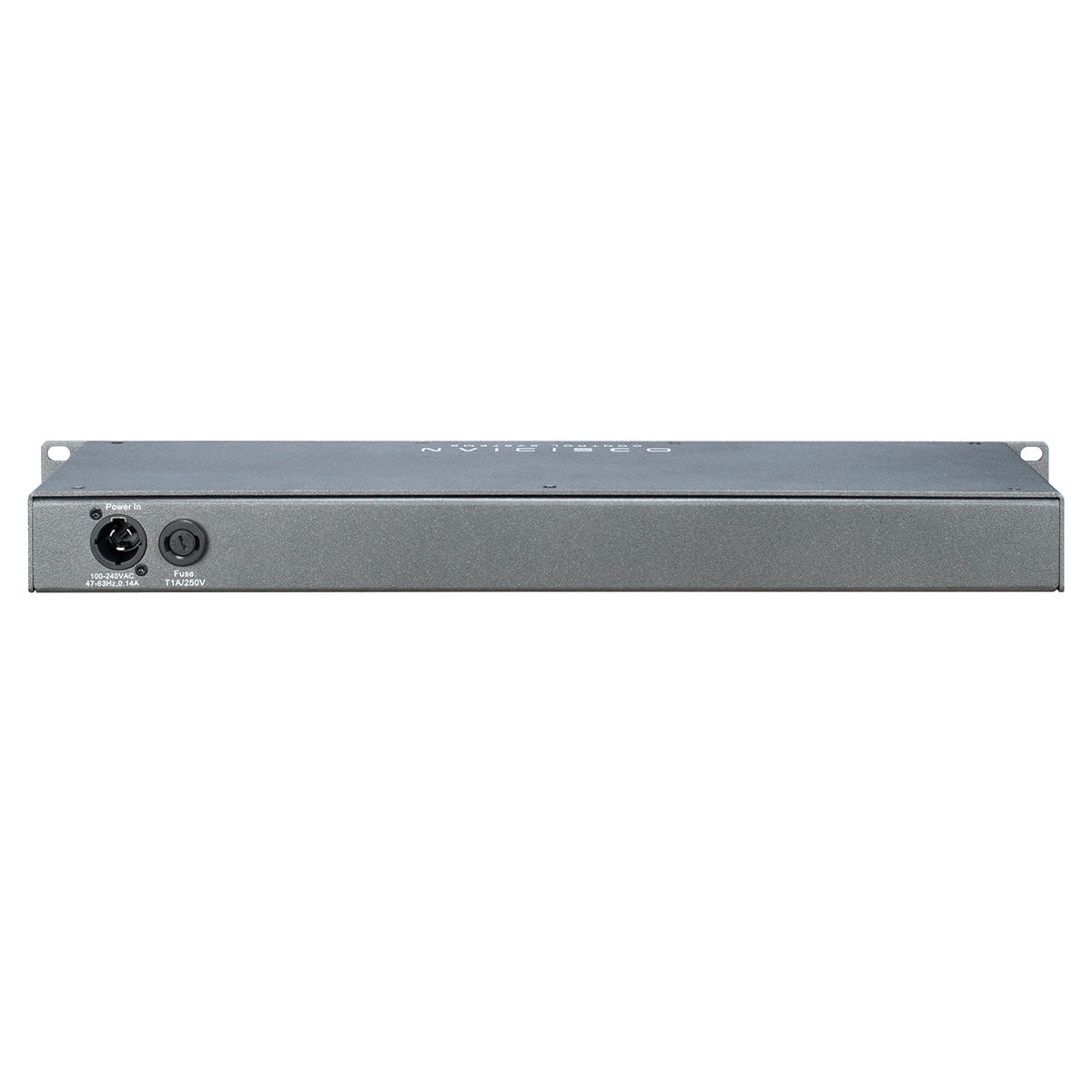

Back
Locking Power In
Physical
Length: 482.0 mm (19 in.)
Width: 155 mm (6.1 in.)
Height: 44 mm (1.7 in.)
Weight: 1.50kg ( 3.31 lbs)
Electrical
100-240 V nominal, 50/60 Hz
Approvals / Ratings
cETLus (Control # 5017012) / CE / IP20
Included Items
1.5m Locking power cable (EU or US version)

Specifications are subject to change without notice.
