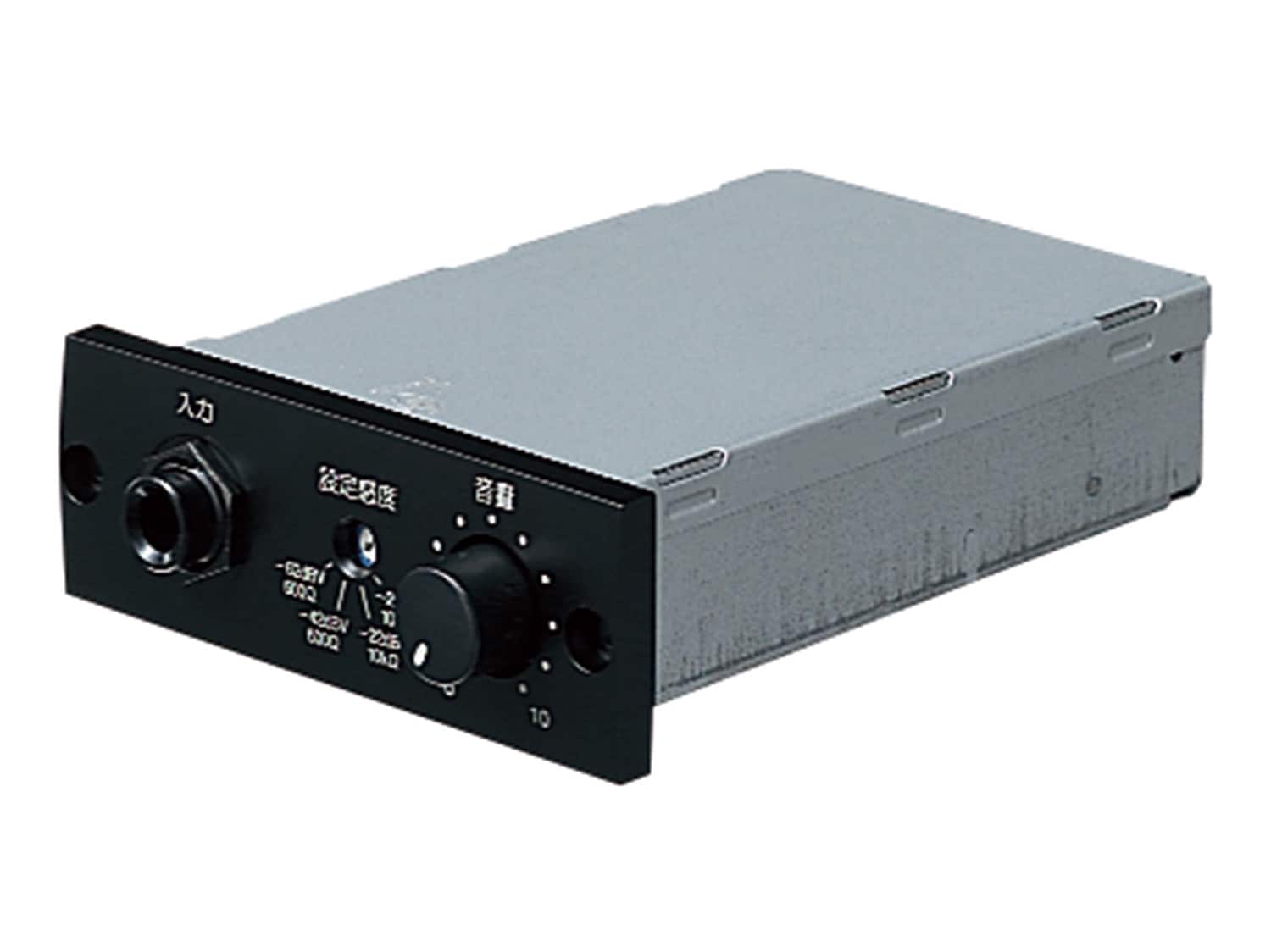

UNI-PEX / EU-300 Wireless Tuner Unit

A wired 1-input expansion unit that can be installed in the CGA series carrying amplifiers. Sensitivity switching allows connection of electronic instruments, microphones, etc.

■Power supply voltage: DC12V
■Current consumption: 10mA or less
■Rated output: -26dBV±3dB 600Ω unbalanced
■Total harmonic distortion: 1% or less (at 1kHz rated)
■Frequency characteristics: 50Hz to 20kHz (deviation ±3dB)
■Input sensitivity and impedance
Input sensitivity SW switch type with volume control
-62dBV±3dB 600Ω unbalanced
-42dBV±3dB 600Ω unbalanced
-22dBV±3dB 10kΩ unbalanced
-2dBV±3dB 10kΩ unbalanced
■Operating temperature range: 0℃ to +40℃
■Exterior: Panel (ABS resin): Painted black, Munsell N1 approximation
Case (plated steel sheet)
■Dimensions: Width 84mm, height 30mm, depth 122mm
■Weight: Approx. 170g
■Accessories: 1 setting driver, 1 instruction manual
