CLASSIC PRO / Easy BGM Set 3 CSH4+CMP60

This is a convenient BGM set that includes the CLASSIC PRO CSH4 compact, high-quality speaker and the CMP60 high-impedance power amplifier.

■Easy BGM set
■Set contents
CSH4 compact high quality speaker
CMP60 high impedance power amplifier
*Speaker cable sold separately.

＜CSH4＞

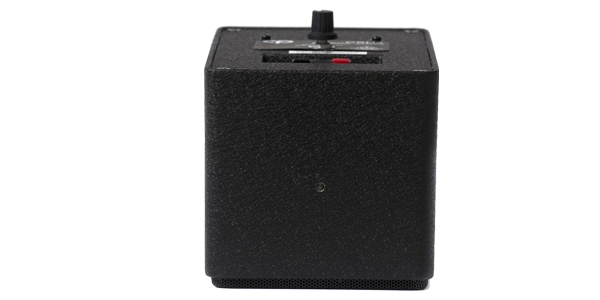

CLASSIC PRO CSH4 is a cost-effective product with a compact design that is ideal for music playback and announcements in small spaces, and high sound quality.

The high-quality 4-inch woofer and 20mm driver mounted in a compact enclosure with a black finish provide clear and comfortable sound.

In addition to low impedance (8Ω) connection, it also supports high impedance connection suitable for long distance wiring and driving multiple speakers.

A dedicated bracket is included, so it can be installed on the ceiling or wall.

■Speakers for facilities
■4 inch
■8Ω
■High impedance/low impedance compatible
■Pair

＜Main features＞
■Small 2-way full-range speaker
■Equipped with 1 x 4 inch woofer
■Equipped with 1 x 20mm soft dome compression driver
■Aluminum enclosure
■Switchable between low impedance (8Ω) and high impedance (70/100/120V)
■Wall/ceiling bracket included

＜Specifications＞
■Maximum input power (RMS):
10W (70/100/120V)
20W (8Ω)
■Frequency response: 80Hz to 20kHz (+0/-3dB)
■Sensitivity: 87dB/1m/1W
■Distortion rate: ＜2%
■Directivity angle: 120° x 120°
■Dimensions: Width 117 x Height 185 x Depth 110mm
■Weight: 2.4kg


You can switch between high and low impedance, and adjust the levels of two microphone inputs and two external device inputs. The ultimate power amplifier for facilities that can be used in a variety of situations, such as store background music, venue announcements, and events! !

■High impedance/low impedance power amplifier for facilities
■Mono
■Input/output: 2 microphone inputs, 2 line inputs, 1 line output
*The line output (RCA) is a mixed signal of MIC1, MIC2, AUX1, and AUX2. The output level also changes in conjunction with each volume.
■Output wattage: 60W
■Input level: LINE/300mV, MIC/5mV
■Signal to noise ratio: LINE/＞70dB, MIC/＞65dB
■Output:
・High impedance: 50V, 70V, 100V
・Low impedance: 4-8ohms
■THD(1kHz): LINE/＜0.1%, MIC/＞0.3%
■Frequency response: 100Hz-16KHz
■Power consumption: 100W
■Dimensions and weight: 48.2Wx8.8Hx41Dcm・16kg
