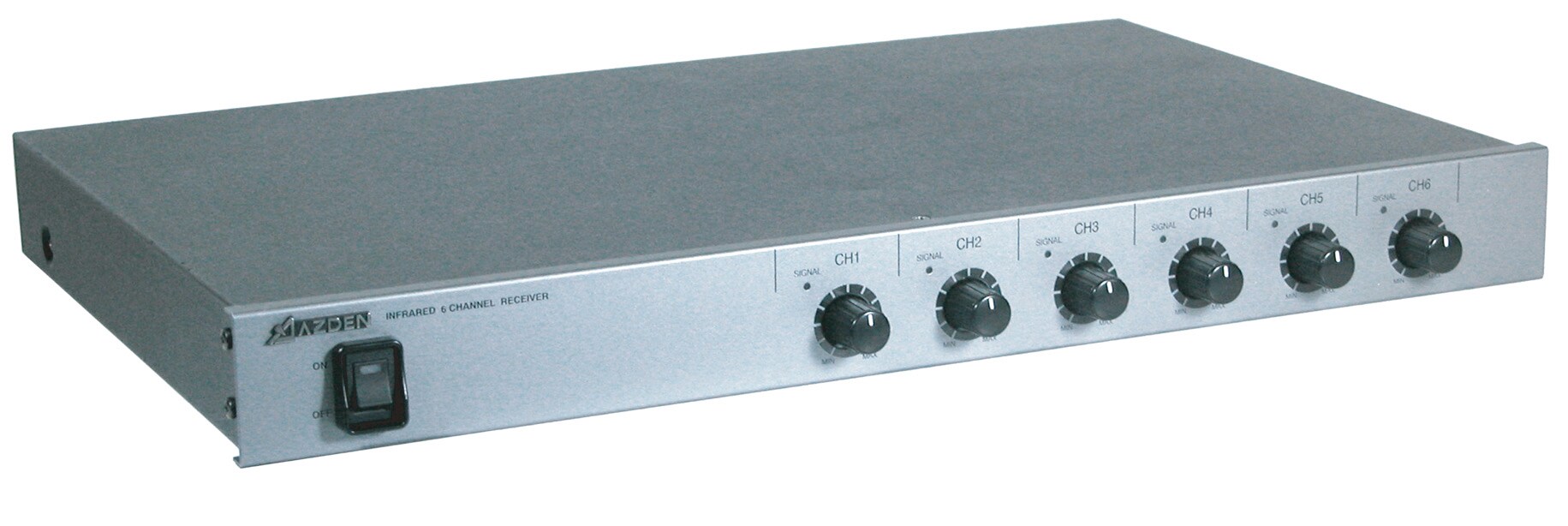

AZDEN / AZI-60R

6 channel infrared wireless receiver for AZDEN infrared wireless microphones.

■Features
The newly developed 6-channel receiver is a highly stable infrared wireless microphone system that has been newly tuned based on the IRR-106 and combined with a dedicated double-shielded coaxial cable to eliminate the effects of external noise to the maximum extent possible.

-Since it uses a method of transmitting audio via infrared, there is no need to worry about interference even if you use the same set in multiple rooms in the same building as long as the rooms are shaded by walls, etc.
-Six wireless microphones can be used simultaneously with one receiver.
-Five external light sensor cables can be connected to enable more stable reception according to the conditions of the room.

Type: Receiver for infrared wireless microphone
Receiving frequency: 6 channels in the 2MHz band
Receiving method: Superheterodyne
Modulation method: Frequency modulation
Number of receiving channels: 6 channels
Local oscillation method: Crystal oscillation method
Tone squelch signal: 32.768kHz
Output impedance: 560Ω (LINE)
Frequency response: 50-10,000Hz
Maximum output level (1kHz/±26kHz modulation): Channel output: +6dBu, Mix output: +12dBu (volume Max)
Dynamic range: 95dB or more
THD+N: 1.5% or less
Channel output: XLR 3-pin (male) x 6
Mix output: XLR 3-pin (male) x 1
Light receiving sensor input: F-type connector x 5
Power supply voltage: Dedicated AC adapter DC 12V
External dimensions: 435 (W) x 44 (H) x 270 (D)
Weight: Approximately 3.3kg
