ELATION / RDM 645

The RDM 645 is a rugged and compact DMX / RDM splitter. Designed for live production and installation, it features 6 optical isolated RJ45 DMX outputs and flexible mounting options for all situations.

■ DMX / RDM splitter
■ Standalone

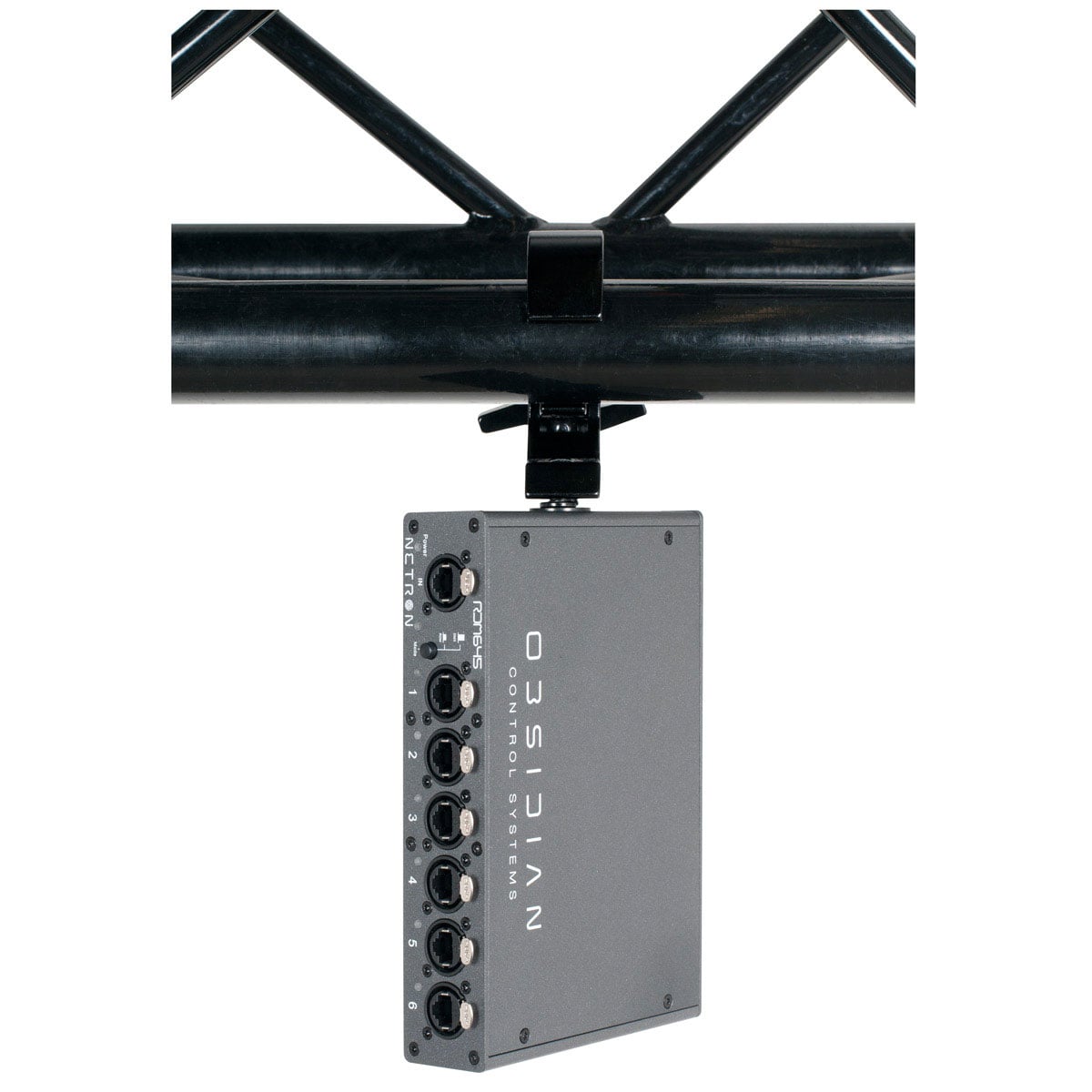

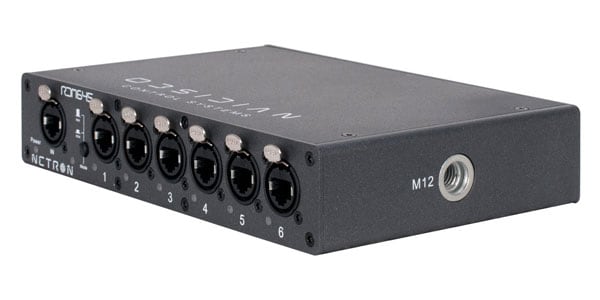

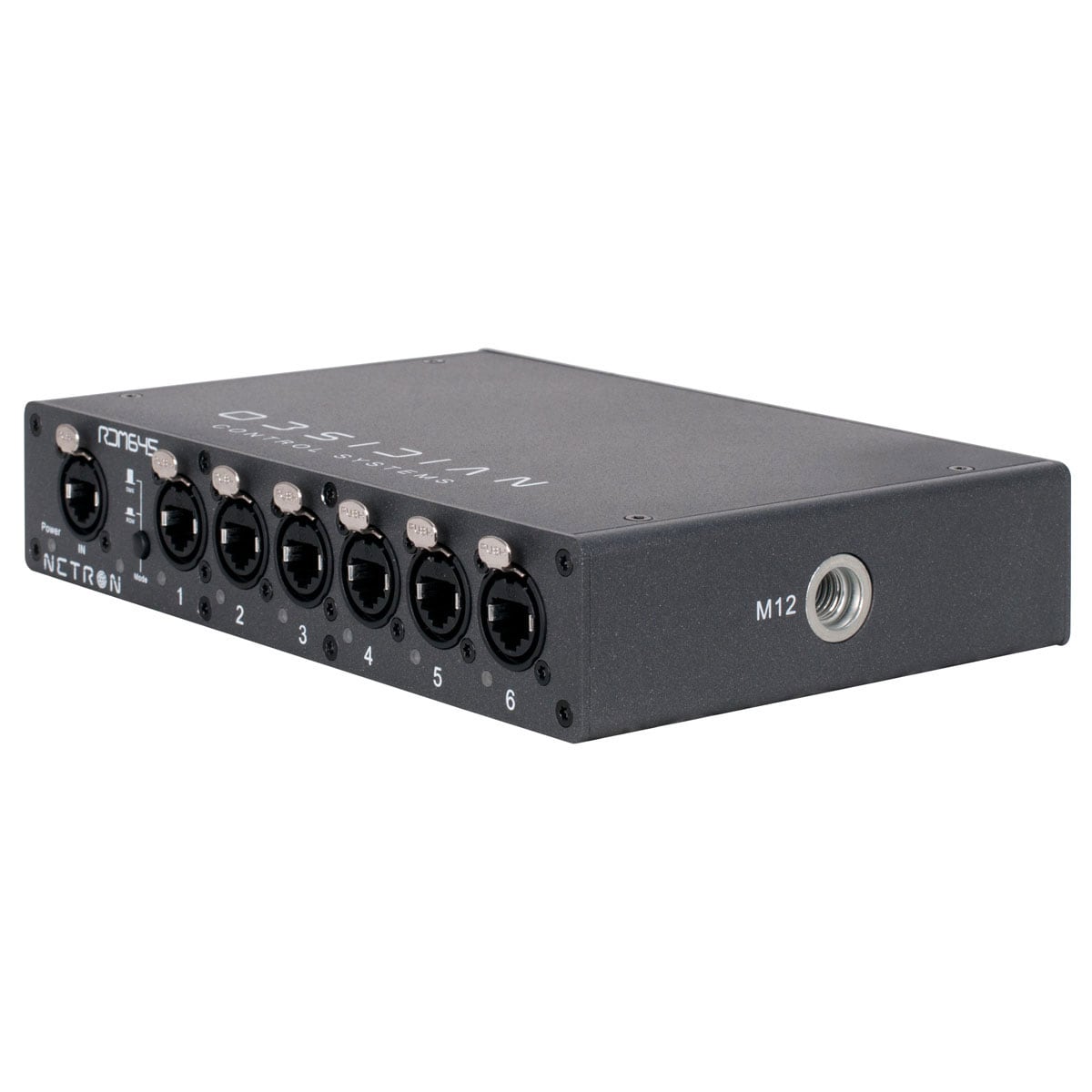

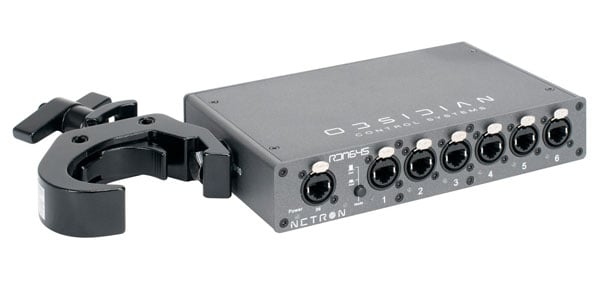

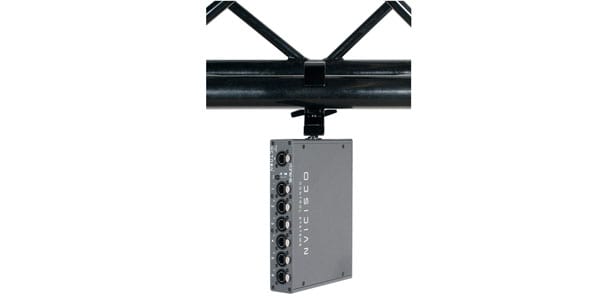

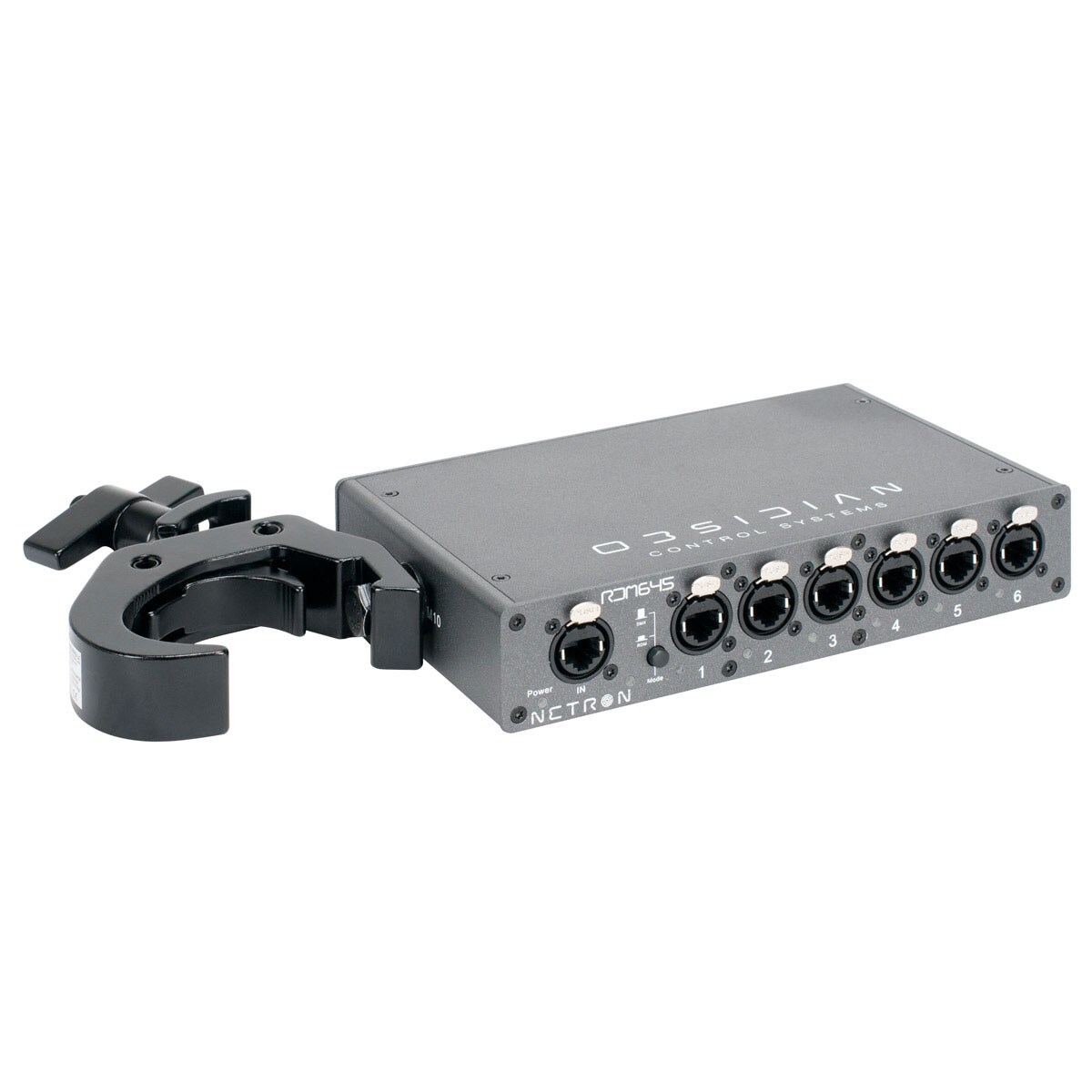

■ Truss mount compatible: M10 or M12

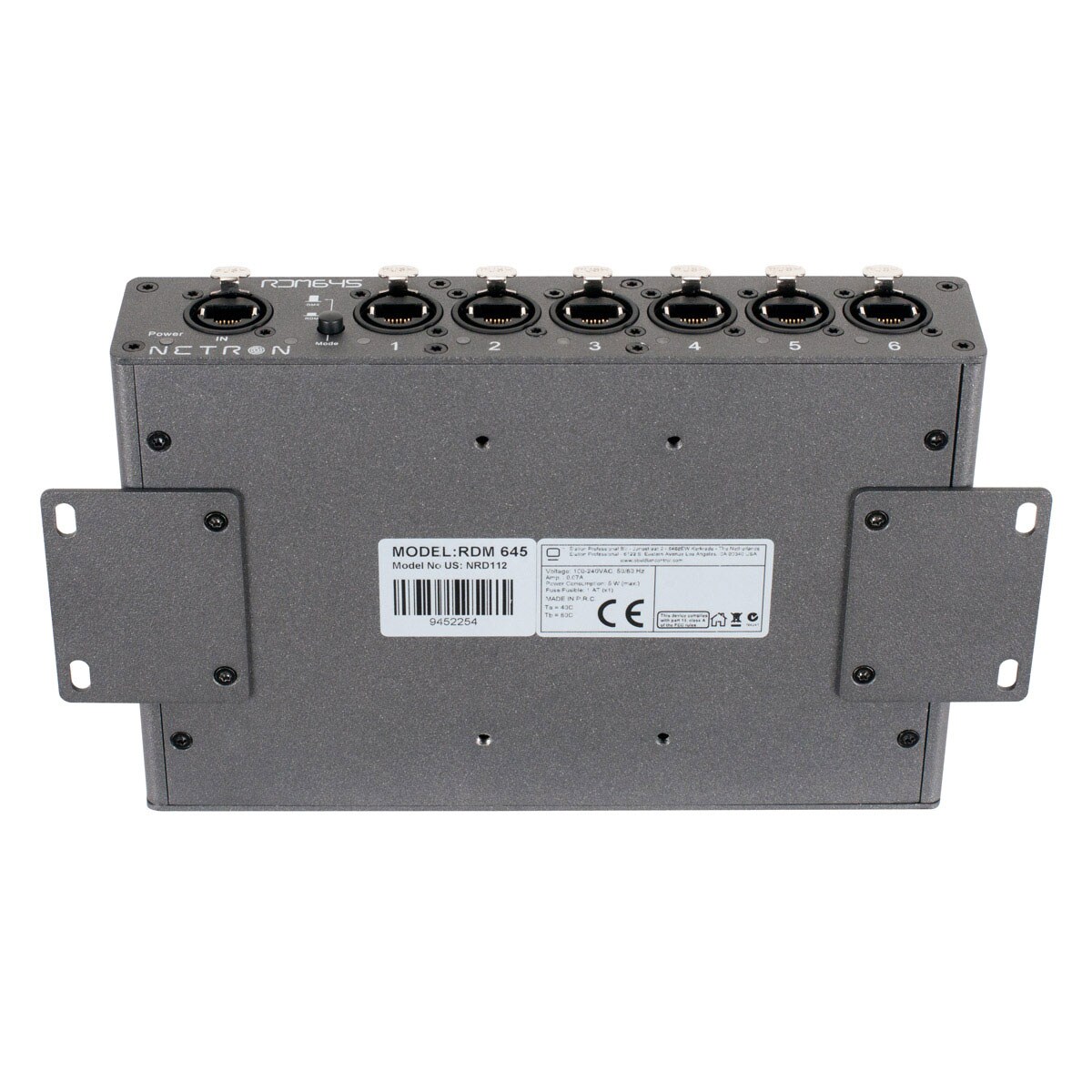

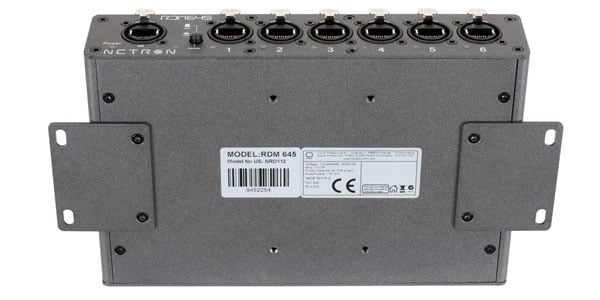

■ Wall mount compatible

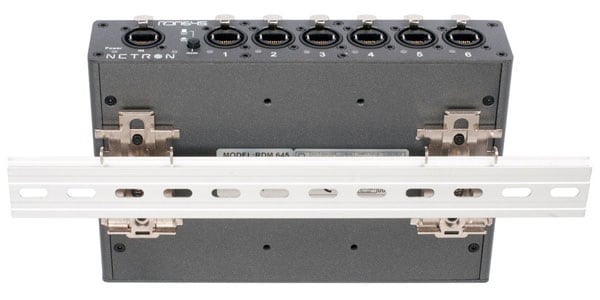

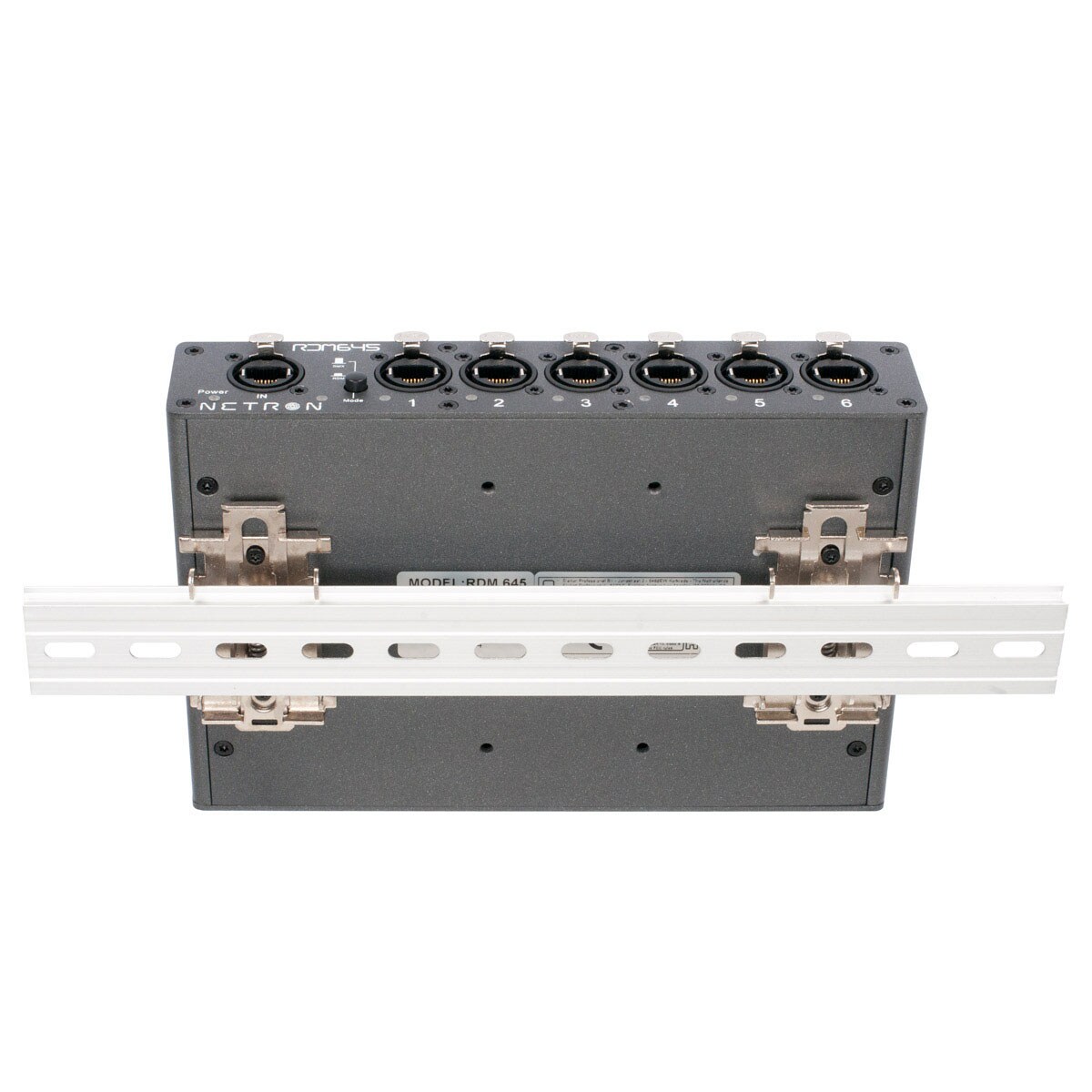

■ DIN rail compatible

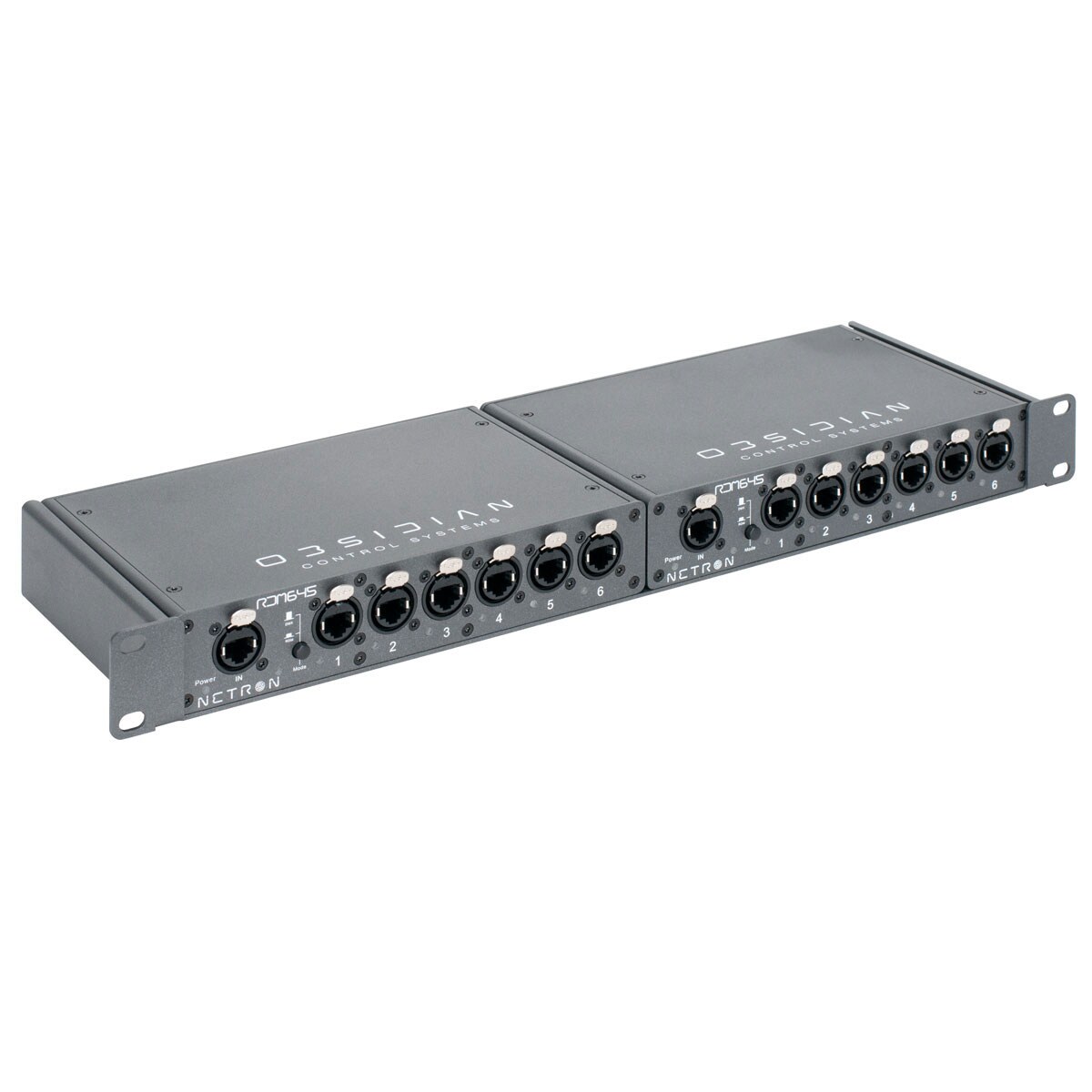

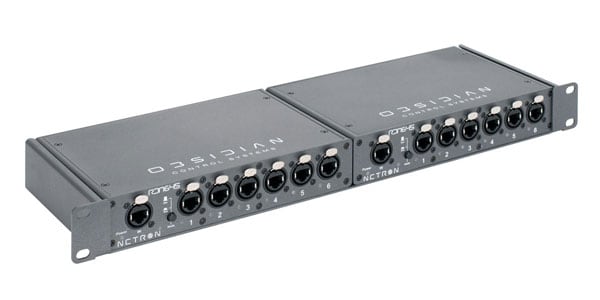

■ Rack mount (option)

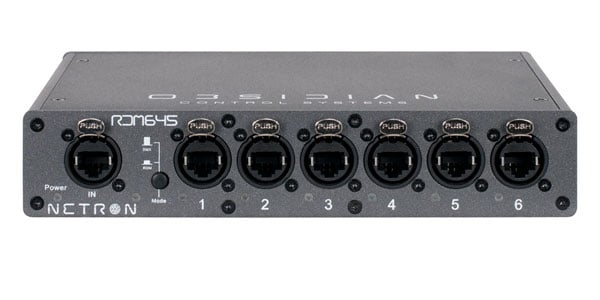

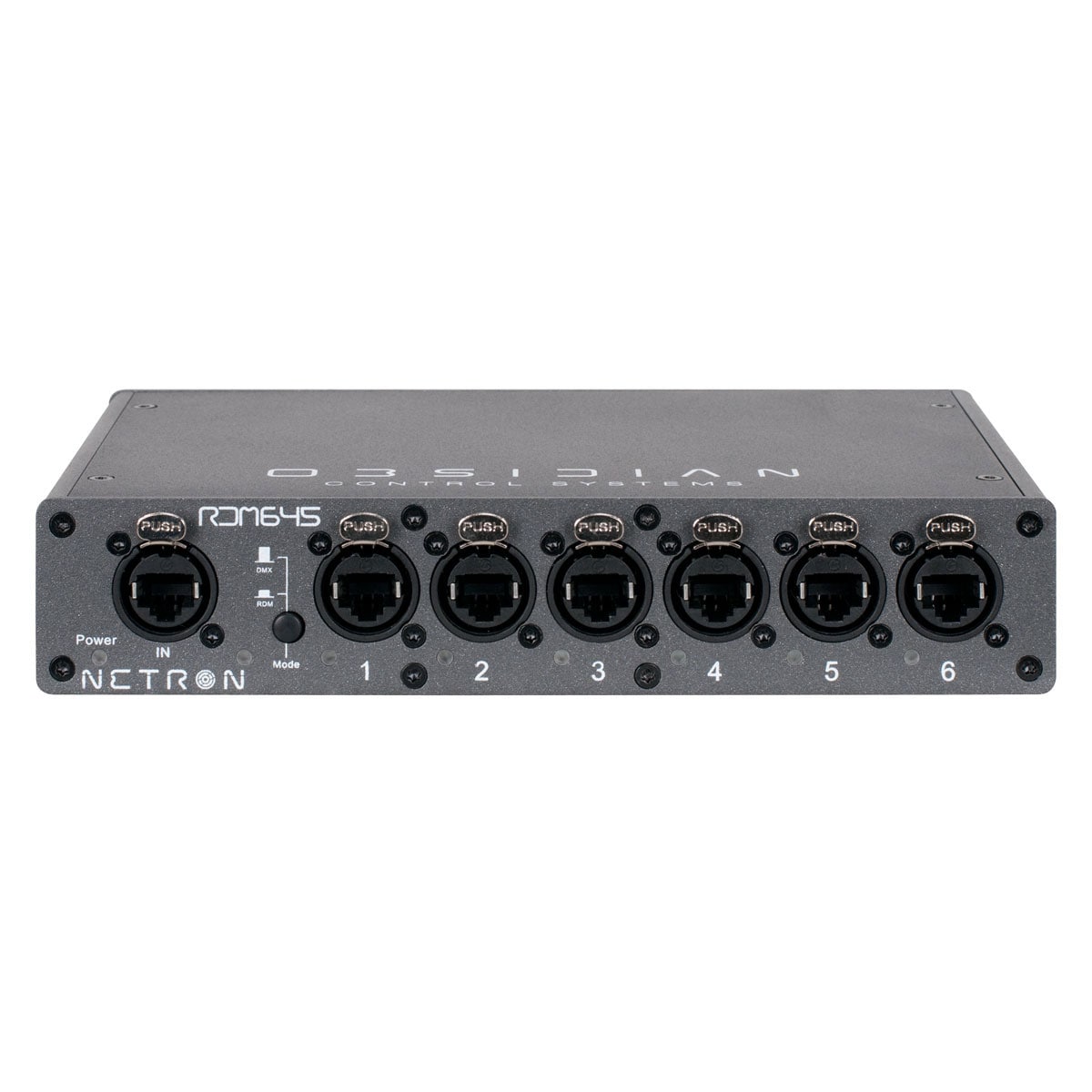

(Front)
■ DMX input: RJ45
■ DMX output: RJ45 x 6

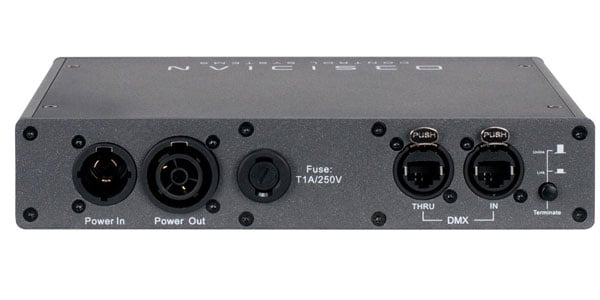

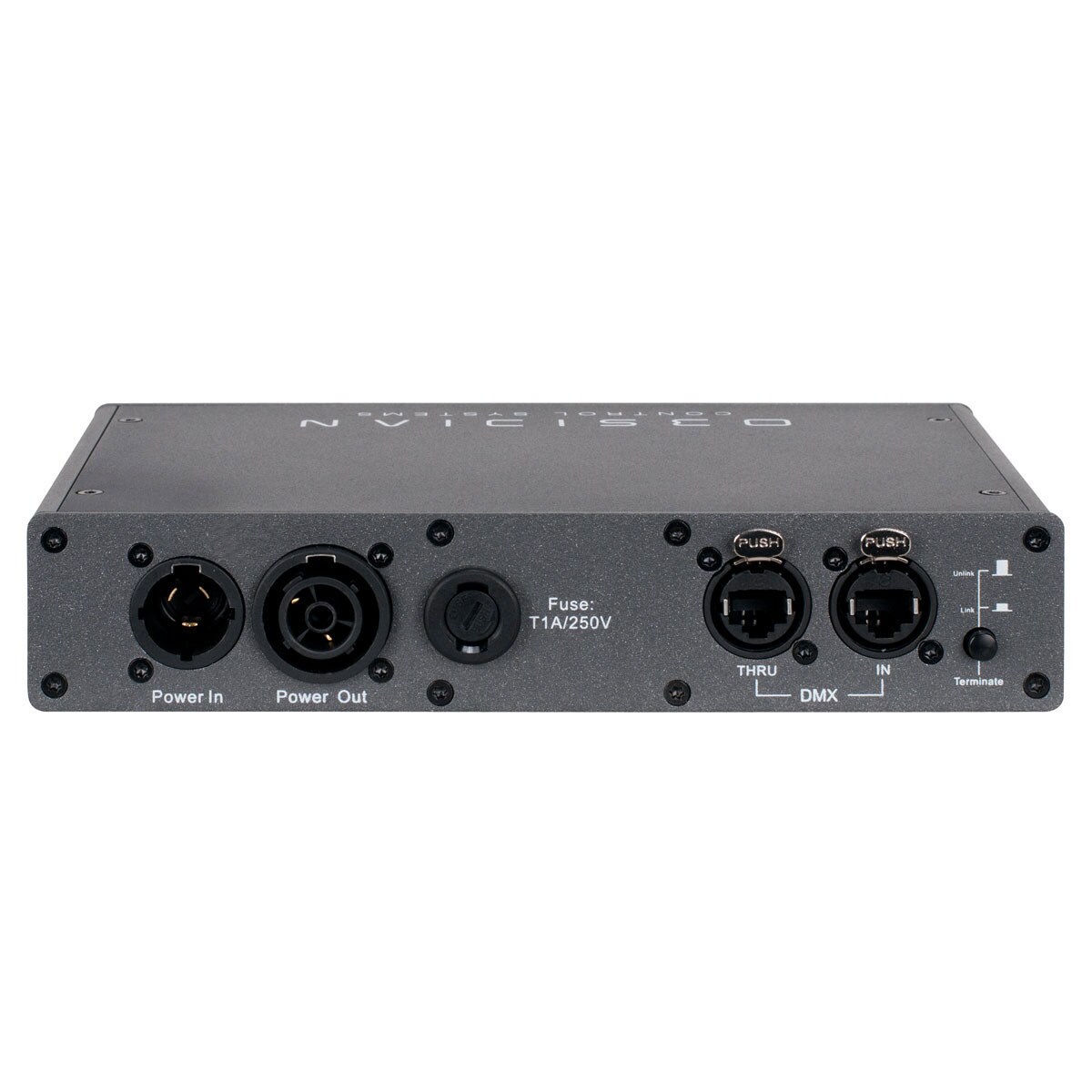

(back)
■ DMX input: RJ45 (parallel to front)
■ DMX through: RJ45
■ Terminator
■ Power conditioner

■ Power supply: AC100V 50 / 60Hz
■ Dimensions: 215x139x42 mm
■ Mass: 1kg
