Modal Electronics / Cobalt5S

MODAL's COBALT 5S is a state-of-the-art 5-voice extended virtual analog synthesizer that combines overwhelming sound quality and compactness. The slim design makes it easy to carry around.

COBALT5S (Cobalt Five S) is the latest model of MODAL in the UK and is a 5 voice extended virtual analog synthesizer.

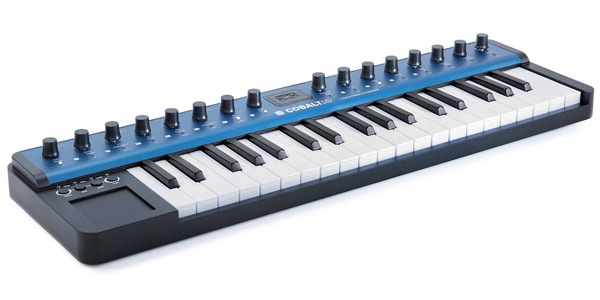

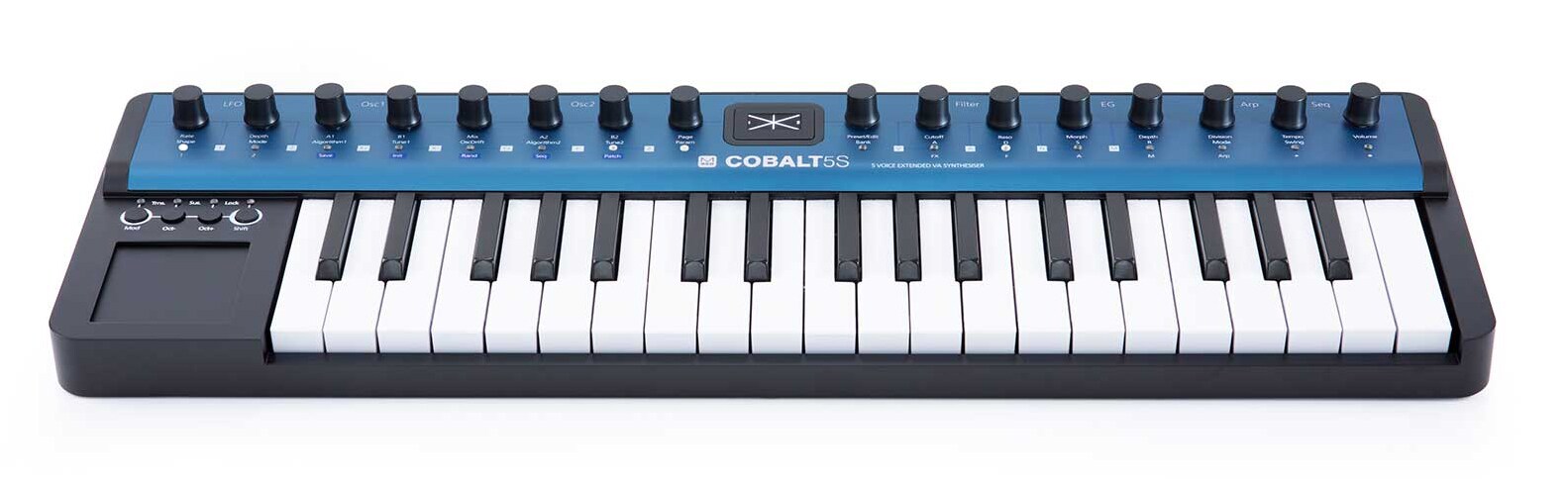

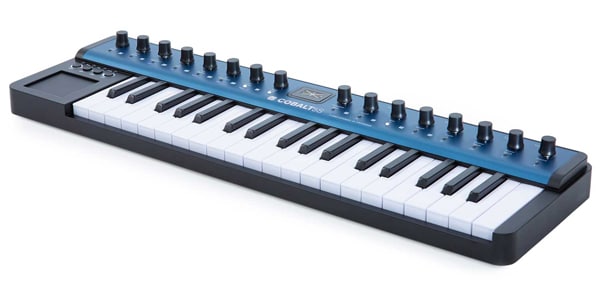

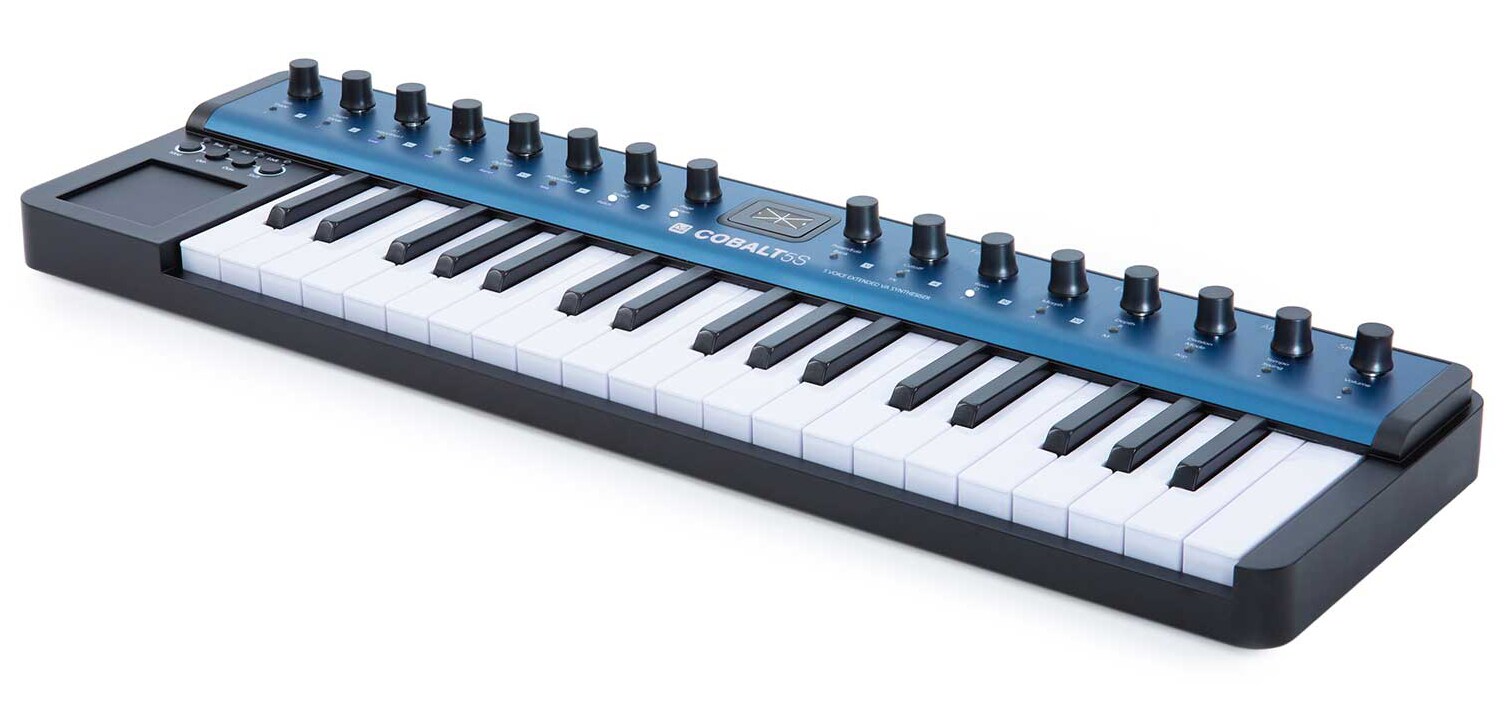

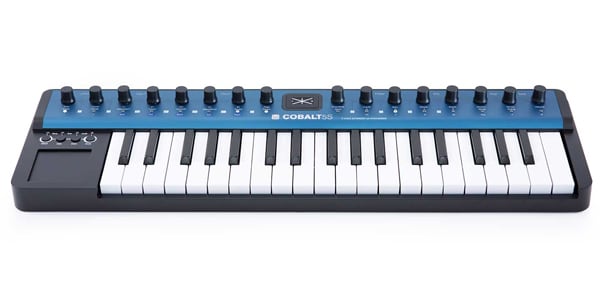

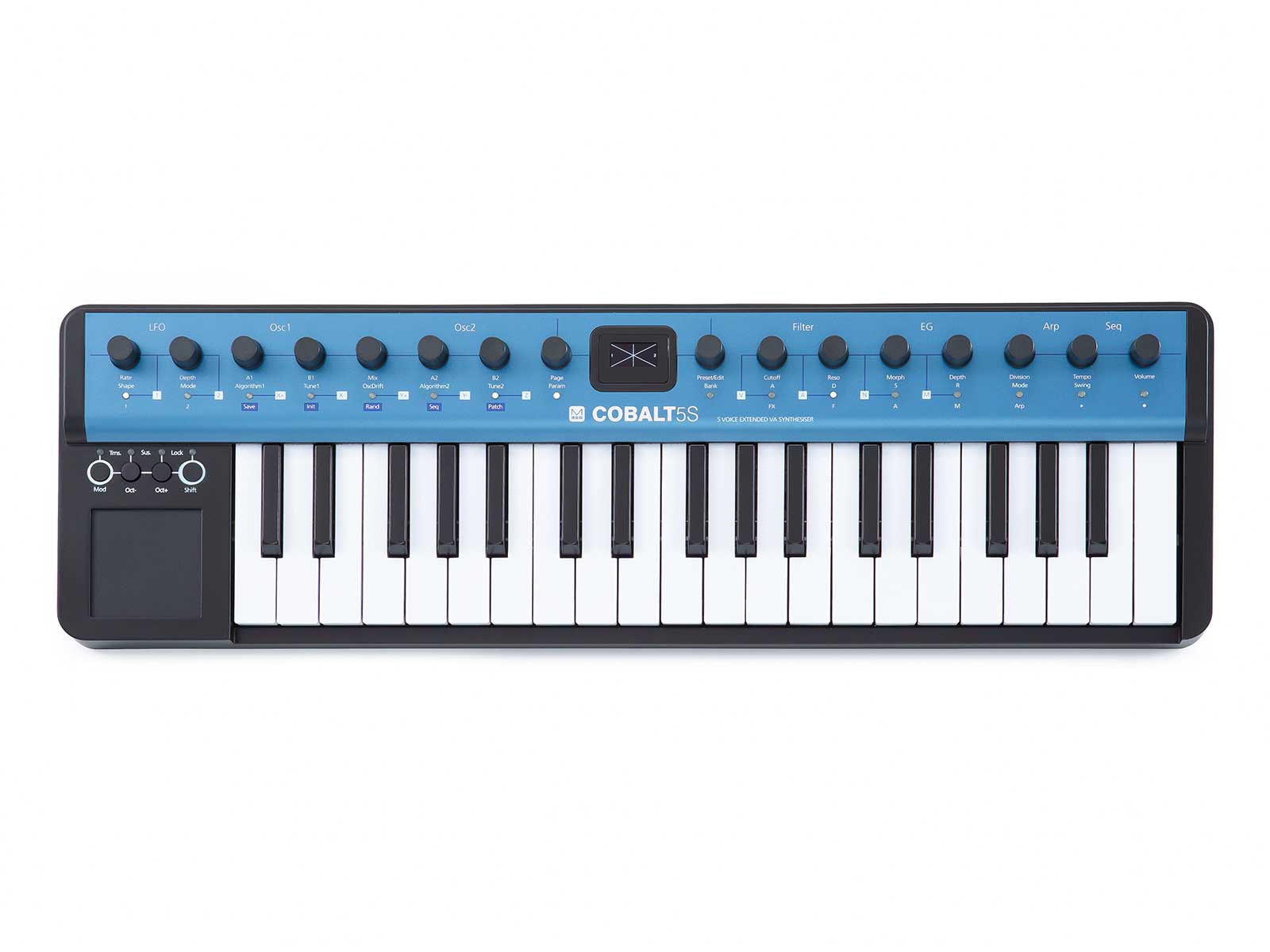

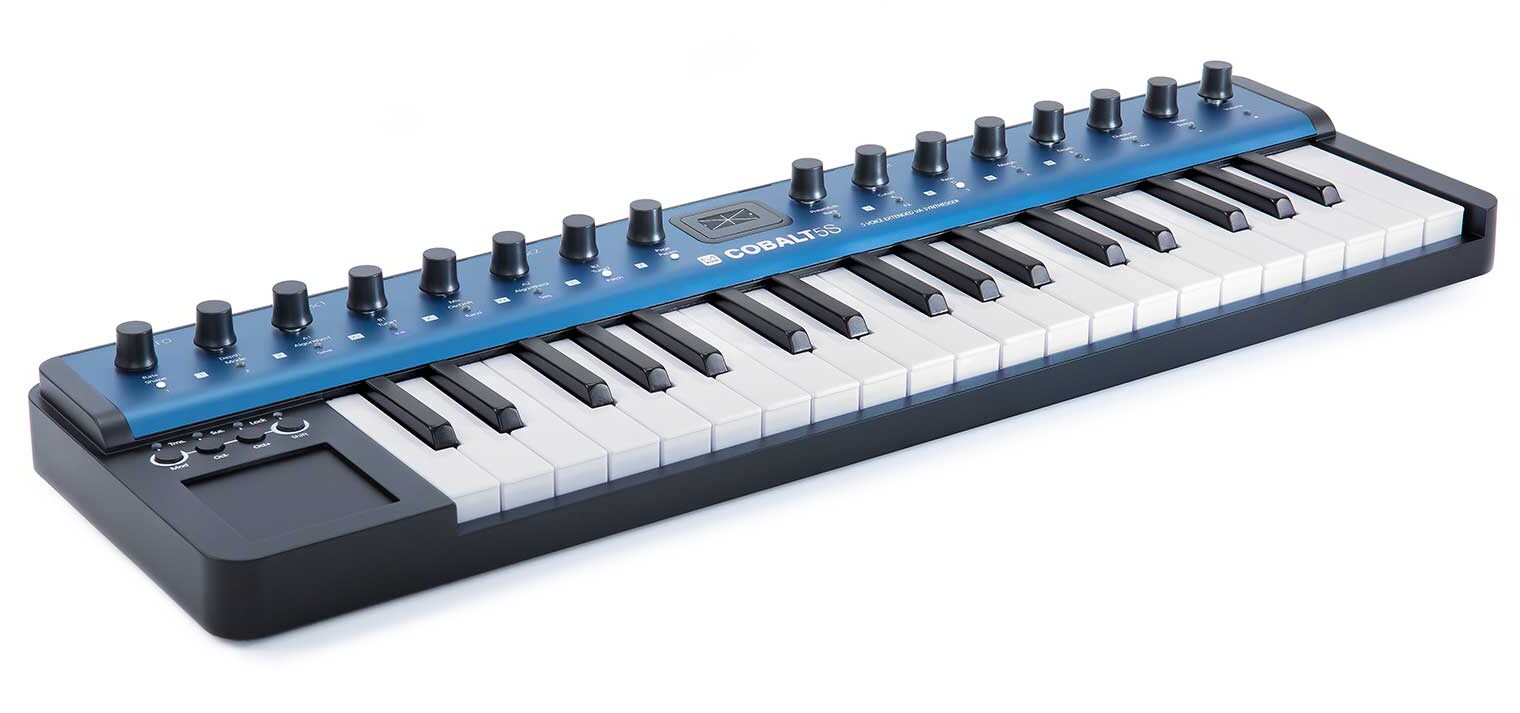

Although the price is for beginners / entries, it is a product that appeals to a wide range of users because it is equipped with a sound engine equivalent to the high-end model of the COBALT series and MODAL's proud editor MODALapp can be used free of charge. MPE compatible, 37-key mini-keyboard X / Y / Z pressure-sensitive touchpad, 16 encoders, OLED screen, compact yet fulfilling interface. High-performance features such as expansion to 10 voices by connecting two units with a 4TR sequencer and polychain. With a slim design that uses a blue aluminum panel and a polycarbonate body, it can be played in various environments as a mobile device that can be easily carried.

Product Specifications
Polyphony
・ Two COBALT5S can be connected and expanded to 10 voices by using the true 5-voice polyphonic and polychain functions.
MPE
・ MPE compatible MIDI controller can be connected, and performance expression using polyphonic control and expression is possible for each note.
Oscillator
-Two independent oscillator groups, each with selectable algorithms, self-contained oscillator cross-modulation and control
Equipped with 40 algorithms, diverse and complex analog synthesis technology, built-in cross modulation (sink, ring modulation, and many more), PWM, smooth morphing of VA waveforms, bit crashes, filter noise, etc.)
-Each algorithm is equipped with carefully tuned controls to easily perform complex synthesis with just two parameters.
・ Extend Oscillator Drift
filter
-Equipped with a 4-pole morphing ladder filter. Switchable configuration
Modulation
-Equipped with three dedicated envelope generators for amplifier, modulation, and filter. Can also be set to negative (reverse). Envelopes can be set individually or all three can be set at the same time
-Equipped with three dedicated envelope generators for amplifier, modulation, and filter. Can also be set to negative (reverse). Envelopes can be set individually or all three can be set at the same time
-Tempo syncable 2 LFOs (1 poly LFO, 1 global LFO) 7 different waveforms can be selected
Equipped with 8 assignable modulation slots and 4 fixed modulation routing (11 modulation sources and 41 modulation destinations)
Sequencer and arpeggiator
-512-note polyphonic real-time sequencer and step sequencer, 4 recordable / editable parameter animations (delay FX, LFO, sequencer, arpeggiator can set internal and external clocks)
-The step sequencer is equipped with multiple playback modes including up to 64 steps, 5 notes per step, 4-lane parameter lock animation, step input mode, gate mode and rest function.
-Built-in 32-step arpeggiator with advanced programming, equipped with rest and random functions. Up to 2048 steps can be set without repeat
effect
-Chorus and stereo delay, two powerful independent user-configurable stereo effects engines
User memory
・ All 300 patch memories can be edited, and 200 factory programs are built-in.
100 sequencer presets that can be linked to any patch for quick loading of arrangements
4 quick recall slots accessible from the panel to quickly load your favorite patches
Control and performance
-Compact 37-key premium keyboard with velocity and channel aftertouch
Equipped with 16 switch encoders, it supports the transmission of real-time CC messages and can control other MIDI devices and DAWs.
・ Equipped with a 5-axis X / Y / Z pressure-sensitive touch pad, which can be used as a pitch bend or modulation wheel, and various modulations can be assigned.
-Switch between multiple keyboard modes for a variety of performances (Mono, Poly, Stack 2, Unison 2, Unison 4)
・ Glide / portamento function, legato mode and staccato mode can be set

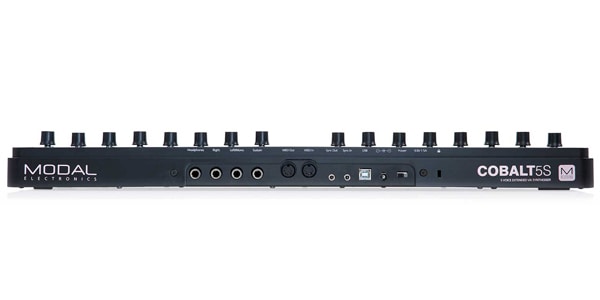

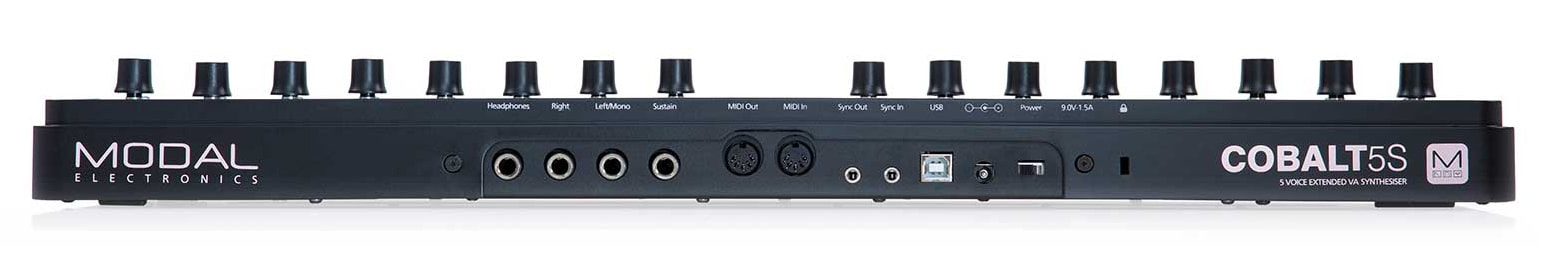

Input / output
・ 6.35 mm / 1/4 ”TS line output
・ 6.35 mm / 1/4 ”TRS headphone output
・ MIDI DIN input / output
・ 3.5 mm / 1/8 ”TS analog clock sink input / output
-USB MIDI connection compatible with USB class compliant
・ 6.35 mm / 1/4 ”TS sustain pedal input
Exterior and display
Durable polycarbonate housing
Equipped with a monochrome OLED display to provide instant visual feedback to users at any time during play / editing
Power supply
-USB bus-powered or DC-9.0V-1.5A Center Plus (* AC adapter sold separately)
Editor software
Free MODALapp software editor for macOS, Windows, iOS and Android
-VST and AU plug-in version MODALplugin, which has the same functions as MODALapp and can be used in a digital audio workstation (DAW), is also available.

External dimensions Width: 56.5 cm Depth: 16.2 cm Height: 5.7 cm
Weight: 2.4Kg
Accessories: Japanese manual, USB cable (* AC adapter sold separately)
Remarks: The editor software "MODALapp" and the editor plug-in "MODALplugin" can be downloaded free of charge from the MODAL Electronics website.
