CLASSIC PRO / CLD55BW2VB1SET

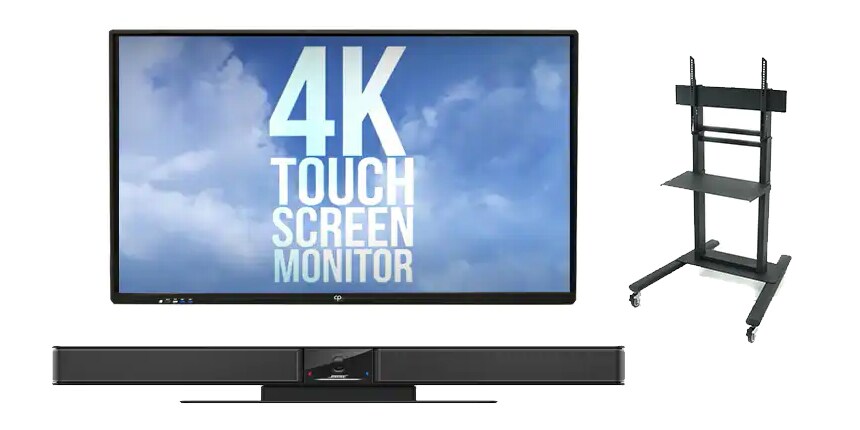

This set includes the 4K multi-function touch screen ""CLASSIC PRO/CLD55BW2"" with a high-definition HD LCD panel, the all-in-one USB device ""BOSE/VB1"" that combines the microphone, speaker, and camera needed for web conferencing in one package, and the TV stand with casters ""CLASSIC PRO/CFS7B.""

■Comfortable WEB conference set

＜Set contents＞
CLASSIC PRO/CLD55BW2 4K multi-function touch screen
BOSE/VB1 All-in-one conference USB device
CLASSIC PRO/CFS7B TV stand

■CLASSIC PRO/CLD55BW2
4K multi-function touch screen with HD high-definition LCD panel. In addition to enjoying high-resolution, large-screen images, the built-in Android 8.0 OS also enables the execution of various applications and connection to USB 3.0-compatible devices.

In addition to use as a large-screen monitor with HDMI connection, it integrates functions such as a projector and electronic whiteboard, and can be used in a wide range of situations such as meetings, exhibitions, demonstrations, and training rooms as a communication platform with external devices.

■High-definition touch screen monitor
■High-definition touch screen monitor
■55 inches
*A separate monitor/TV stand is required for installation.

■ Sophisticated appearance
A sophisticated appearance with a lightweight, thin panel, aluminum alloy front frame, and matte sandbrass surface finish.

■ High-resolution display
UHD LCD panel (3840 x 2160) is used to achieve high primary color reproduction, wide viewing angle, soft image quality, high uniformity, flicker-free, and high-speed response.

■ High-resolution touch screen
Infrared 10-point touch screen with high touch performance and response using cutting-edge touch technology, achieving excellent single touch without using a pen. All controls are possible, such as click, double-click, pan, pressure, scroll, and rotation. Enables high-speed response, high position accuracy, applicability to a wide range of applications, and accurate operation.

■ High-operability platform
With a high-resolution large-screen display, convenient touch operation, highly intuitive comment input function, wide-ranging high-speed image processing, multi-user data sharing, and easy-to-use operation mode, the convenient communication platform with external devices supports a wide range of uses, such as training rooms, conference rooms, exhibitions, and demonstrations.

■ Convenient functions for various purposes
In addition to a wide range of interfaces with practical external devices, it is equipped with various interfaces for adding and expanding internal function modules. It integrates functions such as a projector and an electronic whiteboard, achieving higher information processing capabilities. It also supports apps for using files such as Microsoft Office, and the touch screen allows you to quickly call up shortcut menus.

■ OS: Android TV 8.0
The OS is Android TV 8.0, which can run a variety of applications.

■ Multi-screen operation (mirroring)
You can share the screen and sound of an external computer with this product. Use the included mirror device to enable this function.

■Specifications
Display
Size (inches): 55
Resolution: 3840 x 2160
Touch system
Touch recognition principle: Infrared
Response speed: ≦10ms
Communication ports: USB, serial
Input/output ports
Front panel
: USB3.0 x 2
: TOUCH USB x 1
: HDMI IN x 1
Side panel
: RS232C x 1
: HDMI OUT x 1
: SPDIF OUT x 1
: VGA x 1
: LAN x 1
: AV IN x 1
: AV OUT
: VGA IN x 1
: Mic IN x 1
: EarPhone OUT x 1
Built-in computer
OS: Android 8.0
WIFI: 2.4G/5G
Screw hole spacing: VESA standard
■Accessories
Power cord x 1
Remote control x 1
Touch pen x 2
Test battery x 2
Mirror device x1

※Notes on delivery
Please note that large items are difficult to transport by regular courier and will take several days to ship. In addition, products will be delivered to the doorstep or to the vehicle. On the day of delivery, one driver will visit you, so please help unload the items. Please check the delivery date and time with our sales department in advance. Regarding the delivery date and time of large items, we will confirm your convenience and make arrangements in advance. If you are not at home, please note that the cost of redelivery will be borne by the customer.
■VB1
The Bose Videobar VB1 is an all-in-one conference USB device that provides high-quality audio and high-quality video in huddle rooms to medium-sized conference rooms. Clear video and clear audio that can be clearly heard make meetings easy to understand. Six beam steering microphones automatically detect and pick up audio in the room and eliminate noise. The clear video of the 4K compatible Ultra HD camera with auto framing makes remote participants feel as if they are in the same room. Play multimedia presentations and BluetoothR audio with Bose's unique sound. Of course, natural voice is reproduced during calls. No audio or video cables are required, and only one USB cable is required for connection. No clutter on the desk with cables. From morning meetings to long workshops, clearer video and audio connect your team and make work more comfortable.

＜＜Features＞＞
Bose sound for meeting spaces and conference rooms: An all-in-one solution that delivers high-quality audio and high-quality video with minimal setup

6 beam steering microphones for more natural conversations: Detects and picks up voice and eliminates noise. Auto EQ optimizes audio for everyone

4K Ultra HD camera for clear communication and video: Auto framing ensures everyone can see the presenter, whiteboard, flipchart and other room elements clearly, making it feel like you're in the same room

Improved video and audio performance: Integrates with popular unified communications platforms, including Microsoft Teams, Google Meet and Zoom

High-quality audio for multimedia presentations: Bose's proprietary transducers deliver audio from your USB-connected laptop or Bluetooth®-enabled wireless device to the entire room

Clean conference rooms with elegant looks and simple cabling: A sleek, slim design that's beautiful and luxurious. Connects with just one USB cable for simplified cabling.

Versatile installation: Easily installs with the included table stand and wall mount kit, and VESA mounting accessories (sold separately)

Connects to existing network infrastructure: Quickly install and troubleshoot, and remotely update, manage and monitor

Configure with Bose Work Configuration software: Easy to set up using the app or web browser. In addition, you can use Bose Work Management software to remotely change and manage individual units or the entire system. You can also check the status in real time.

Control settings in real time from your smartphone: Use the Bose Work mobile app to easily adjust volume, mute, adjust horizontal and vertical swing, zoom, zoom presets, and Bluetooth pairing.

Easy connection to your smartphone: Connect via Bluetooth to use as a standalone speakerphone or stream music.

■CFS7B
A freestanding VESA-compliant TV stand with casters for easy mobility. It can support large displays such as the CLASSIC PRO CLD series, and has a load capacity of 100 kg.
■VESA-compliant TV/monitor stand
■Height 1260-1610 mm
■Width 100-600 mm
■Load capacity: 100 kg
