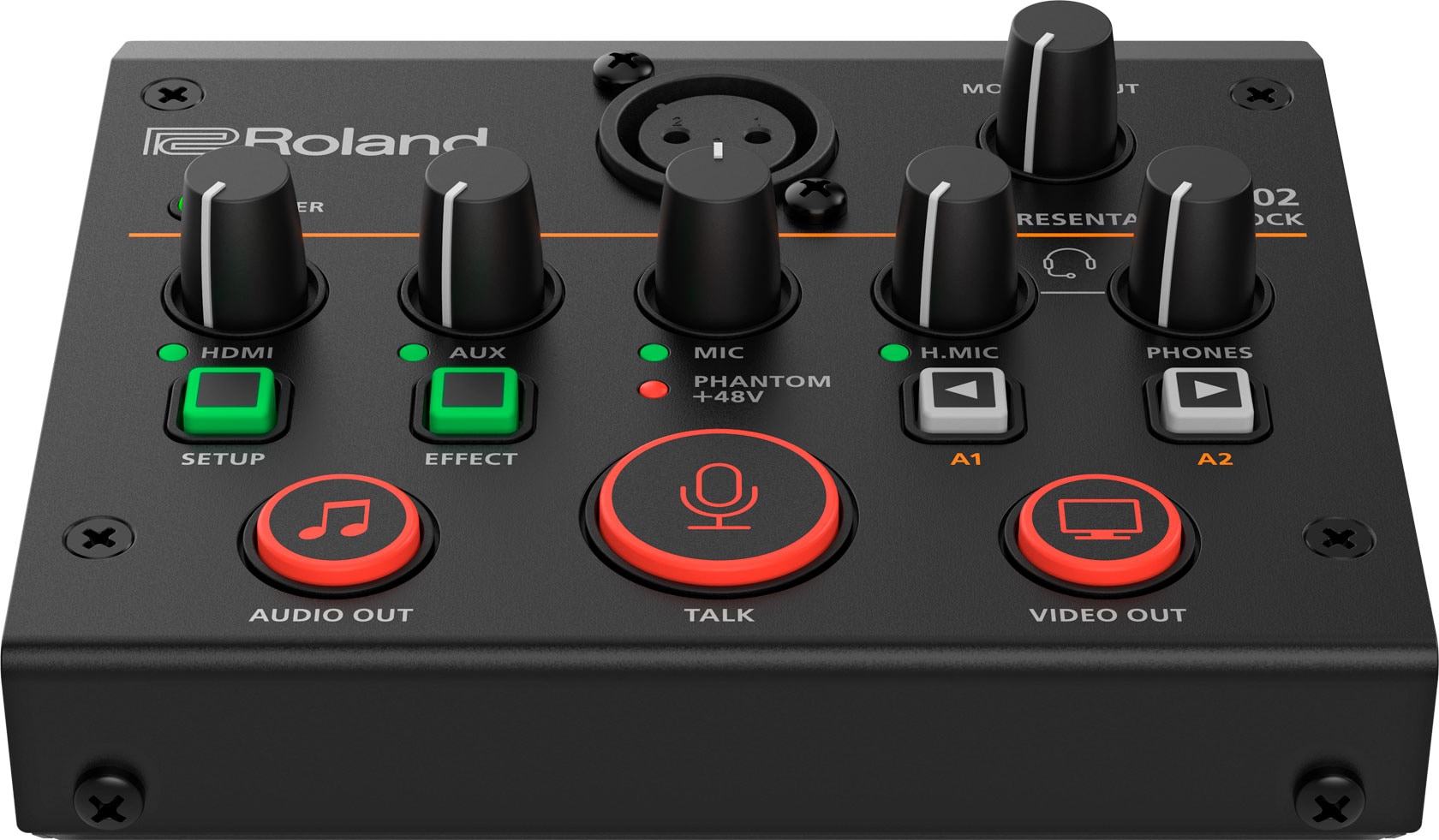

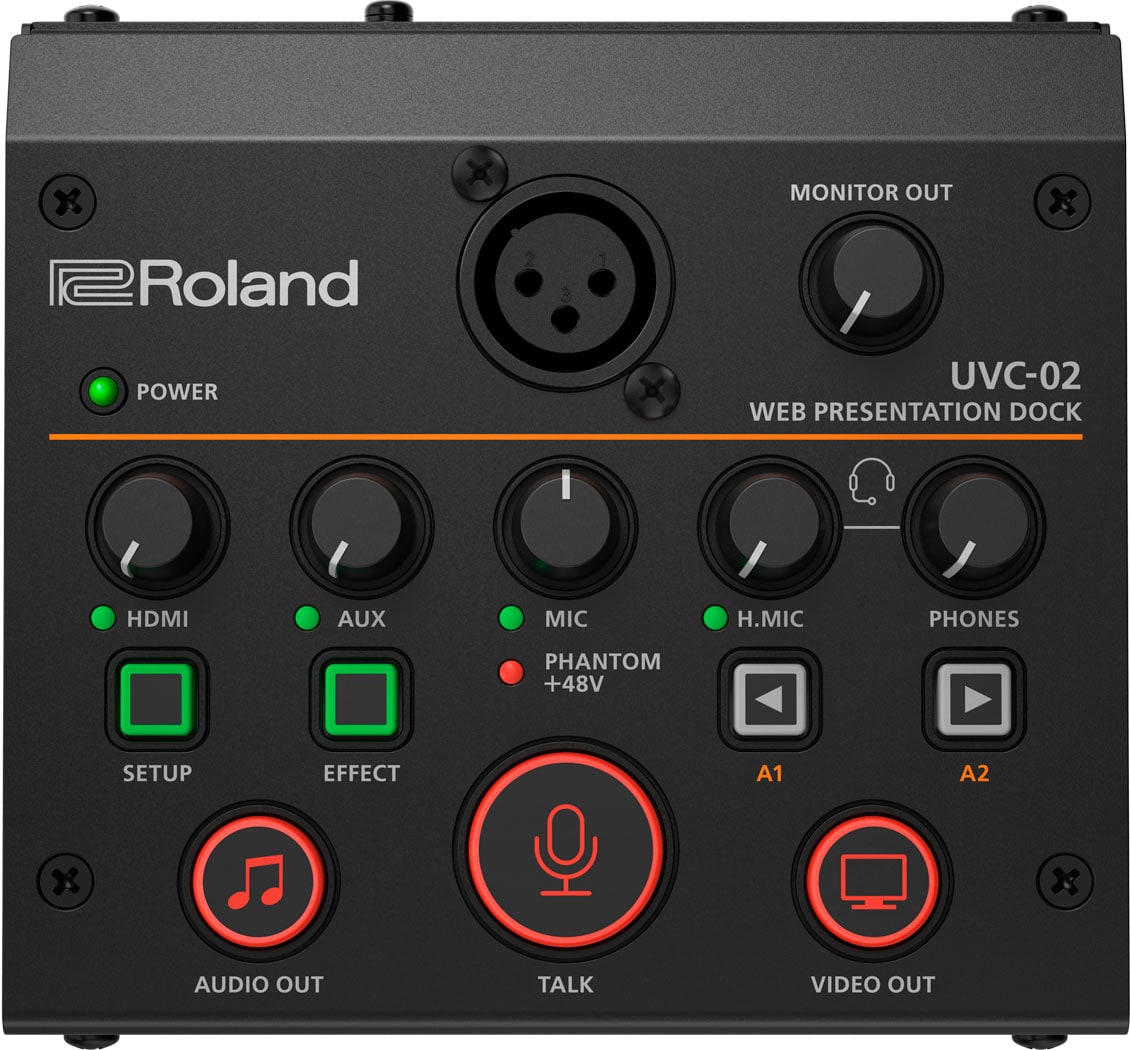

ROLAND / UVC-02 WEB PRESENTATION DOCK

いつものWeb会議やプレゼンテーションを高品質の映像と音声で届けるウェブプレゼンテーションドックです。

Visual

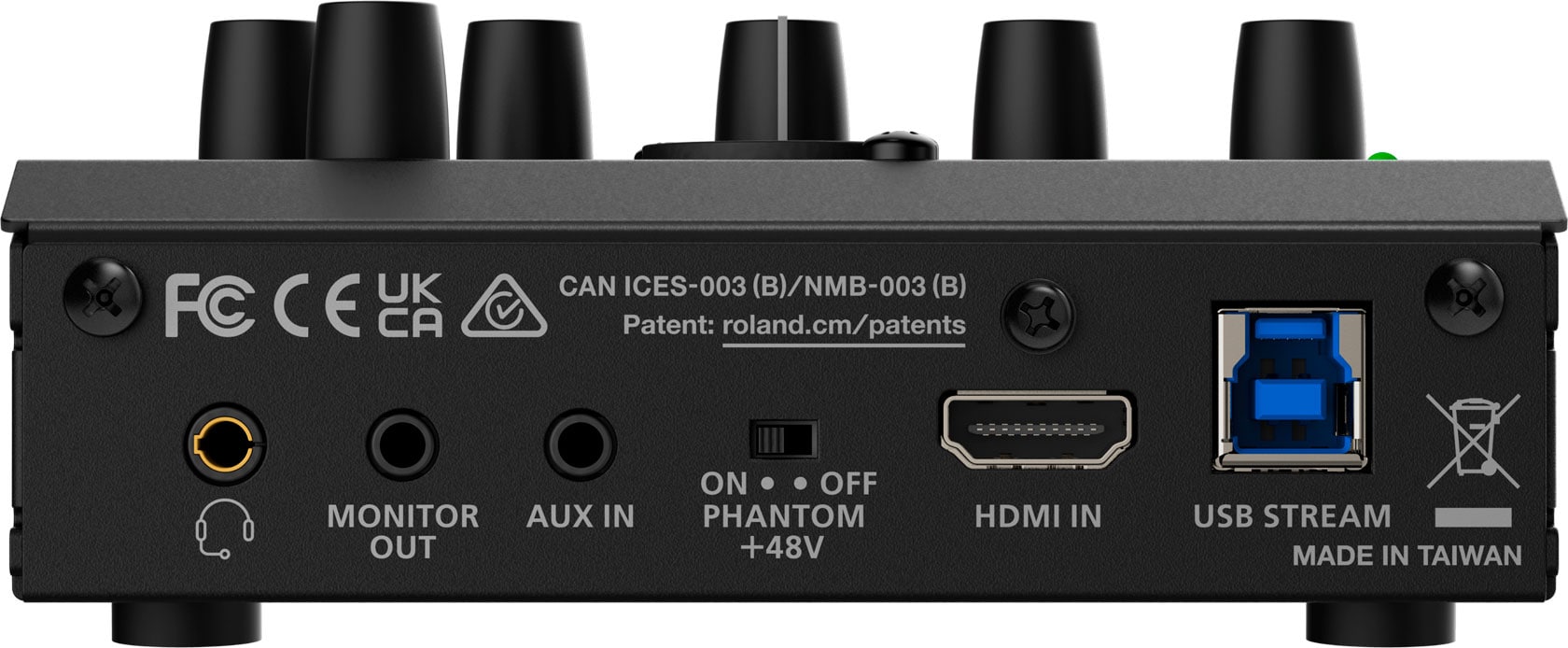

■ Input terminal:
HDMI IN terminal: HDMI type A
*Not compatible with HDCP
*Multi-format support
■ Input video format:
480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60Hz/75Hz, XGA (1024 x 768) 60Hz/75Hz,
WXGA (1280 x 800) 60Hz/75Hz, HD (1280 x 720) 60Hz/75Hz,
SXGA (1280 x 1024) 60Hz/75Hz, FWXGA (1366 x 768) 60Hz/75Hz,
SXGA + (1400 x 1050) 60Hz/75Hz, UXGA (1600 x 1200) 60Hz,
FHD (1920 x 1080) 60Hz
*The refresh rate is the maximum value for each resolution.
*Compliant with CEA-861-E and VESA DMT Version 1.0 Revision 11
■ Output terminal
USB STREAM terminal: USB 3.0 B type
■ USB video output format YUY2 (uncompressed), Motion JPEG (compressed)
■ USB video output resolution 1920 x 1080, 1280 x 720, 640 x 480
*Frame rate is up to 60fps

Audio
■ Speech processing sample rate:
48kHz, 24-bit
■ Analog audio connection terminal
MIC terminal: XLR type (balanced, phantom power DC 48V, 14mA Max)
HEADSET terminal: Stereo mini type (CTIA, plug-in power compatible)
AUX IN terminal: Stereo mini type
MONITOR OUT terminal: Stereo mini type
■ Digital audio connection terminal:
HDMI IN terminal: HDMI type A
USB STREAM terminal: USB3.0 B type
■ Standard input level:
MIC IN terminal: -54dBu to -14dBu (maximum input level: +4dBu)
HEADSET terminal: -20dBu (maximum input level: -2dBu)
AUX IN terminal: -10dBu (maximum input level: +8dBu)
■ Specified output level
MONITOR OUT terminal: -10dBu
HEADSET terminal: 9mW + 9mW (at 32Ω load)
■ Input impedance:
MIC IN terminal: 5.8kΩ
AUX IN terminal: 10kΩ
HEADSET terminal: 1Kω
■ Output impedance:
MONITOR OUT terminal: 1kΩ
HEADSET terminal: 22Ω
■ Digital audio format
HDMI IN terminal: Linear PCM, 48kHz/44.1kHz, 24-bit/20-bit/16-bit, stereo
USB STREAM terminal: Linear PCM, 48kHz, 16-bit, stereo
■ Audio effects:
Anti-feedback, echo canceller, ducker
Voice changer, reverb, noise suppressor, equalizer
Expander, compressor, delay
■ Audio file playback function Number of tracks: 2
Supported data formats: WAV (Linear PCM, 48kHz, 16-bit, Stereo/Monaural)
Maximum play time: 5 seconds/track

Common part
■ Other functions
Microphone mute (TALK button)
Audio mute (AUDIO OUT button)
Video off (VIDEO OUT button)
Slide show control
■ Power supply Obtained from the USB STREAM terminal
■ Current consumption: 900mA (4.5W)
■ Operating temperature: 0 to + 40℃
■ Accessory leaflet "Please read first"
USB3.0 cable *0dBu = 0.775Vrms
■ SIZE: 124 (W) x52 (H) x117 (D) mm 460g (main unit only)
