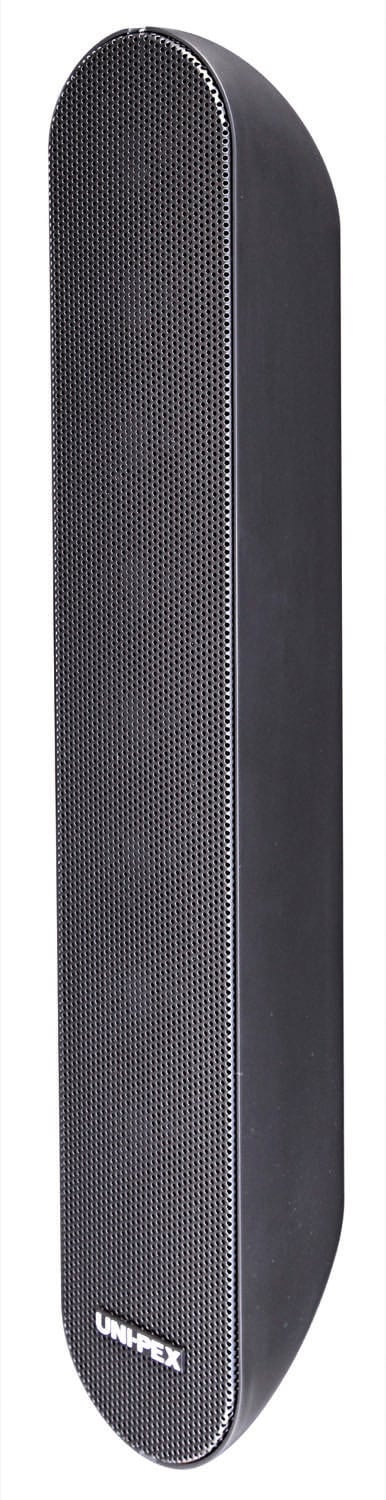

UNI-PEX / AS-20H

パッシブ・ラインアレイスピーカー。暗騒音レベルの高い場所でも、必要なエリアに均一で明瞭な放送が可能。

■ Rated input: 20W
■ Rated impedance:
Low impedance 8Ω (20W)
High impedance 100 series 500Ω (20W), 670Ω (15W), 1kΩ (10W)
■ Emergency type: Class L (high impedance 100 series only)
■ Sound power level: p=91dB (1W)
■ Directivity classification: X
■ Output sound pressure level: 92dB (1W/1m)
■ Playback frequency band: 180Hz-20kHz
■ Directivity angle: Horizontal 140° Vertical 35° (at 2kHz vertical installation)
■ Input mechanism: 2P push terminal
■ Dimensions: Width 108mm x Height 620mm x Depth 89.8mm
■ Weight: Approximately 3.5 kg
