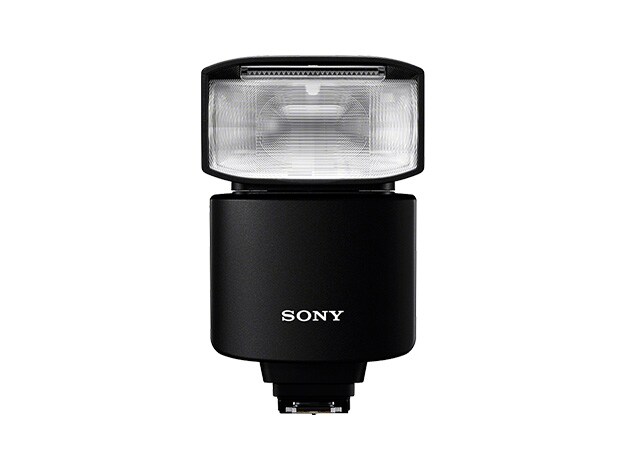

SONY / HVL-F46RM

コンパクトな筐体でプロが求める発光性能・堅牢性能が向上した大光量フラッシュです。

■ Wireless radio control external flash
Main Specifications
*-: N/A

■ |Type:
Auto electronic flash (clip-on type) with pre-flash metering
■ Shoe type:
Multi Interface Shoe
■ Maximum guide number:
46 (Flash coverage setting 105mm/STD flash distribution,ISO100・m)
■ Flash mode:
TTL/MANUAL/MULTI
■ Flash duration:
Within approx. 1.7ms (1/1 MANUAL)
■ Color temperature: Approx. 5500K
■ Power level switching:
25 levels (1/1 - 1/256) 1/3 steps
■ Flash interval *3:
Approx. 0.1 seconds-2.5 seconds (alkaline batteries)/0.1 seconds-2.0 seconds (Ni-MH batteries)
■ Number of flashes:
Approx. 240 times or more (alkaline batteries)/320 times or more (Ni-MH batteries)
■ Continuous flash performance:
60 flashes at 10 flashes per second *4
■ Flash coverage:
AUTO/MANUAL (24 mm-105 mm) Angle of view of at 15 mm focal length is also covered with the wide panel

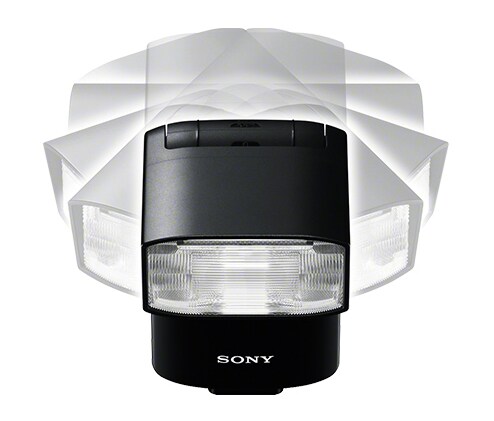

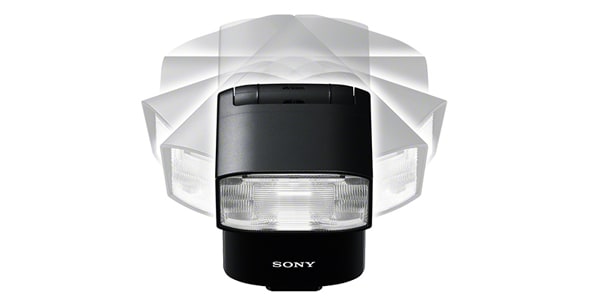

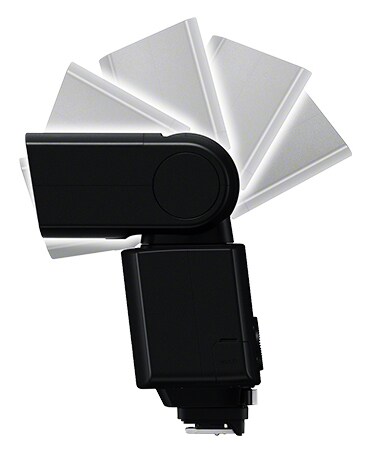

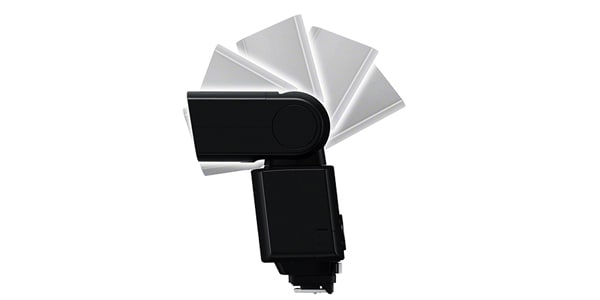

■ Bounce angle: Yes
Up 150° (0°/30°/45°/60°/75°/90°/120°/150°)
Down 8°, left and right 180° (0°/30°/45°/60°/75°/90°/120°/150°/180°)
■ Quick shift bounce: -
■ AF illuminator operating range *3: -
■ Flash control:
Flash control using pre-flash (P-TTL/ADI)
■ Multi-flash: Yes
■ Radio controlled wireless function:
Radio control wireless function: Yes (commander/receiver) *5
Frequencies: 2.4GHz band
Channels: 14 channels (auto/manual)
Communication distance (approx.) *6: 30m *7
Groups: 3 groups (TTL/manual), 5 groups (group flash photography)
Maximum flash units: 15 units
Lighting ratio control: 3 groups (TTL)
■ Optical control wireless function:
Optical controlled wireless flash: -
Channels: -
Communication distance (approx.) *6: -
Groups: -
Lighting ratio control: -
■ Wireless flash: Yes (commander/receiver) *5
■ Wireless light ratio control: 3 groups (TTL)
■ High-speed sync: Yes
■ Test flash: Yes
■ Modeling flash: Yes
■ White balance automatic correction: Yes (except DSLR-A100)
■ Auto zoom control optimized for image sensor size: Yes (except DSLR-A100)
■ Flash distribution setting: Yes *8
■ Custom key settings: Yes
■ Memory settings: Yes
■ Remote release: -
■ Dust and moisture resistant design: Yes *9
■ Connectors:
Sync terminal: -
Multi/micro USB terminal: Yes
■ LED light function:
Maximum luminance: -
Lighting distance: -
Continuous lighting time: -
Color temperature: -
■ Operating temperature: 0℃ - +40℃
■ Storage temperature: -20℃ - +55℃

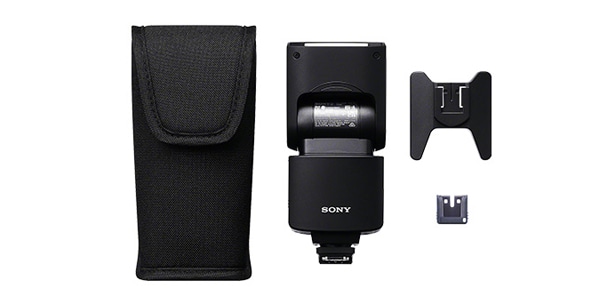

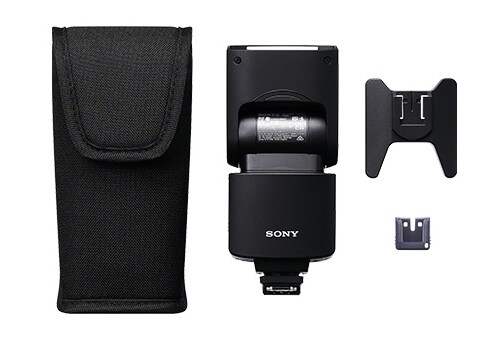

■ Included items: Connector protect cap (1), mini stand (1), carrying case (1)
■ Power source: Four AA-size alkaline or Ni-MH batteries
■ Dimensions (approx.): 69.4 (W) x 114.7 (H) x 88.9 (D) mm, weight (approx.) 308g (only main unit)
*1 When using the HVL-F42AM/F20AM in combination with the α (A mount) camera for off-camera shooting, requires the off-camera shoe FA-CS1AM (sold separately) and the off-camera cable FA-CC1AM (sold separately).
*2 35mm equivalent focal length when equipped with an APS-C size SLR camera
*3 SONY test conditions
*4 Normal flash, power level 1/32, 105mm, Ni-MH battery
*5 Requires Radio Control Wireless Flash (sold separately) or Wireless Radio Receiver FA-WRR1 (sold separately) or Wireless Radio Commander FA-WRC1M (sold separately).
*6 May vary according to conditions.
*7 SONY test conditions
*8 Depending on the camera, this function is not available. For details, see product information page.https://support.d-imaging.sony.co.jp/www/cscs/accessories/
*9 Not guaranteed to be 100% dust and moisture proof.
