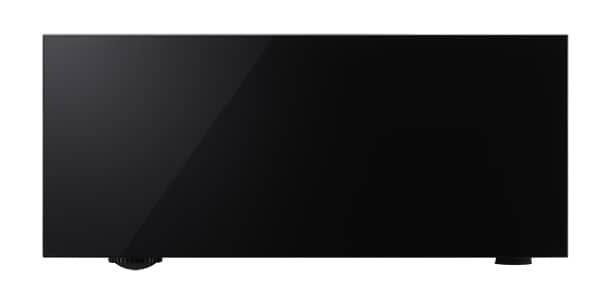

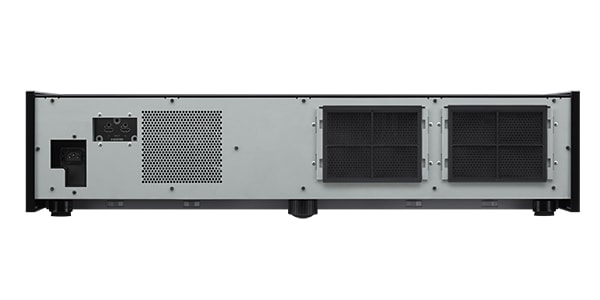

SONY / VPL-VZ1000

超短焦点ズームレンズを搭載し、省スペースで4K大画面投写を可能にするプロジェクター。 〇4K映像を忠実に描きだす、ネイティブ4K（水平4,096×垂直2,160画素）パネル搭載。 〇ソニー独自の「データベース型超解像処理LSI（リアリティークリエーション）」を搭載。 〇高速パネル駆動の「SXRD」を搭載し、3D特有のクロストーク現象を極限まで低減。 〇色バランスのズレを自動で補正する「オートキャリブレーション」機能。

■ Ultra short focus 4K HDR home theater projector

-: N/A
〇 Optical system
■ Projection method: 3SXRD panel, 3 primary color LCD projection method
■ Panel: Sony 0.74 type 4K SXRD
26,542,080 pixels (8,847,360 x 3)
(Supports high frame rate)
■ Lens: Ultra-short focus lens (for fine adjustment: approx. 1.02x electric zoom)
■ Shift:
V: +/-0.06V (electric)
H: +/-0.03H (electric)
■ Projection size:
80-120 type (diagonal 16:9)
84-126 type (diagonal 17:9)
■ Light source: Laser diode
■ Recommended lamp replacement time (standard, not guaranteed) *1: -
■ Laser light source life (reference, not guaranteed) *1: Approx. 20,000 hours
■ Optical output (factory default): 2,500 lumens *2
■ Dynamic contrast: ∞:1 *3 *4
〇 Electrical system
■ Color space: BT.709 *5, BT2020 *6
■ Main corresponding signals:
480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p, 3840 x 2160/60p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p, 4096 x 2160/60p

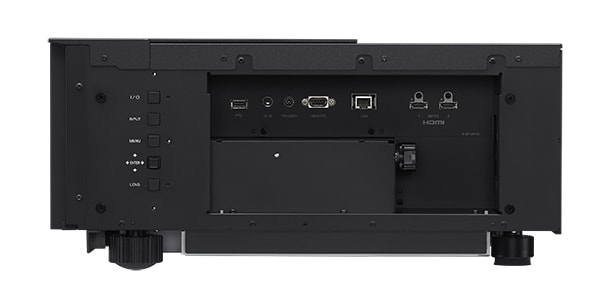

〇 Input terminal
■ HDMI input: 4 channels (18Gbps compatible, HDCP 2.2 compatible, CEC non-compatible)
■ Component input terminal:-
■ PC input terminal:-
〇Control terminal
■ Trigger output: 1 channel (mini jack: DC 12V, maximum 100mA)
■ RS-232C: D-sub 9 pin (concave) x 1
■ LAN: RJ-45 × 1, 10BASE-T/100BASE-TX
■ IR IN/OUT: IN: 1
■ 3D Synchro: -
■ USB terminal: Yes (DC 5V, maximum 500mA)
〇Others
■ Reality Creation: Yes
■ Contrast adjustment function: Contrast Enhancer (HDR/SDR)
■ Digital Focus Optimizer: -
■ Mastered in 4K mode: Yes
■ Triluminos (R) display: Yes
■ HDR (High Dynamic Range): Yes (HDR10/HLG)
■ Auto calibration: Yes (White balance only)
■ Advanced Iris 3: -
■ 3D support: Yes (radio wave method)
■ 3D Sync Transmitter: Built-in
■ Number of picture presets: 9
■ Number of gamma modes: 11 (10 types + off)
■ Motion flow: Yes (4K/2K)
■ MPEG noise reduction: Yes
■ Picture position: 5
■ Delay reduction mode: Yes
■ Supports anamorphic zoom mode: -
■ Lens shutter: - Top cover (manual)
■ x.v.Color support: Yes
■ Deep Color support: Yes
■ V keystone (keystone correction): -
■ Cooling method: Air cooling
■ Menu language: Japanese, English, Dutch, French, Italian, German, Spanish, Portuguese, Russian, Swedish, Norwegian, Chinese (Simplified), Chinese (Traditional), Korean, Thai, Arabic, Polish
〇Dimensions, etc.
■ Power supply: AC100V, 50/60Hz
■ Power consumption: Maximum approx. 435W
(Standby: approx. 0.5W/remote start (on): approx. 0.6W)
■ Driving sound: Approx. 24dB *3
■ Accessories:
Remote control RM-PJ28, AA batteries x2, power cord for projector, plug holder, cleaning cloth, top cover, side cover x2, side cover strap x2, side cover rivet x2, safety guide, simple manual, instruction manual (CD-ROM), warranty card
■ Dimensions: 925.0 (W) x 218.5 (H) x 493.8 (D) mm (including side cover)
■ Weight: Approx. 35kg (excluding side and top covers)

*1 Each value is a guideline for the time until the brightness is halved, and may vary depending on the usage environment and usage conditions.
*2 Color luminous flux is a measurement method that evaluates the color performance of a projector. Color luminous flux can be used as an easy and accurate measure of color performance when selecting a product.
*3 The values ​​are guidelines and may vary depending on the projector setting conditions and usage environment.
*4 Achieves 0 lumens of brightness on the screen in a completely dark room that blocks light.
*5 The color gamut of ITU-R BT.709 is not completely included.
*6 The color gamut of ITU-R BT.2020 is not completely included.
