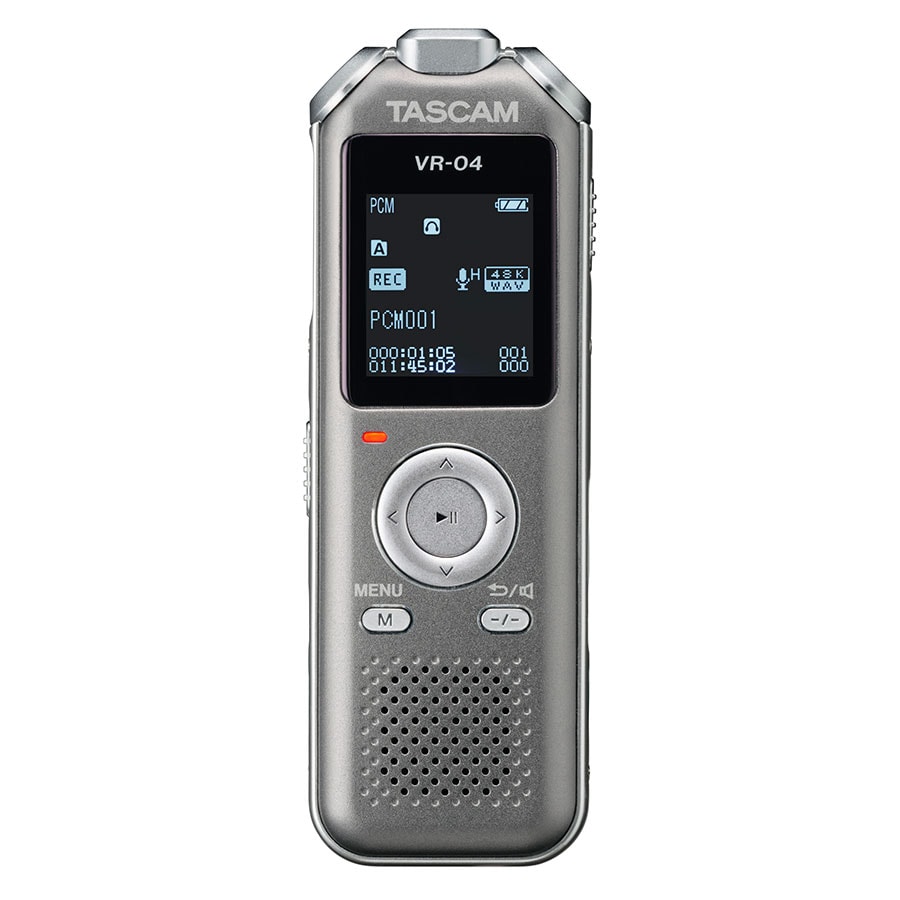

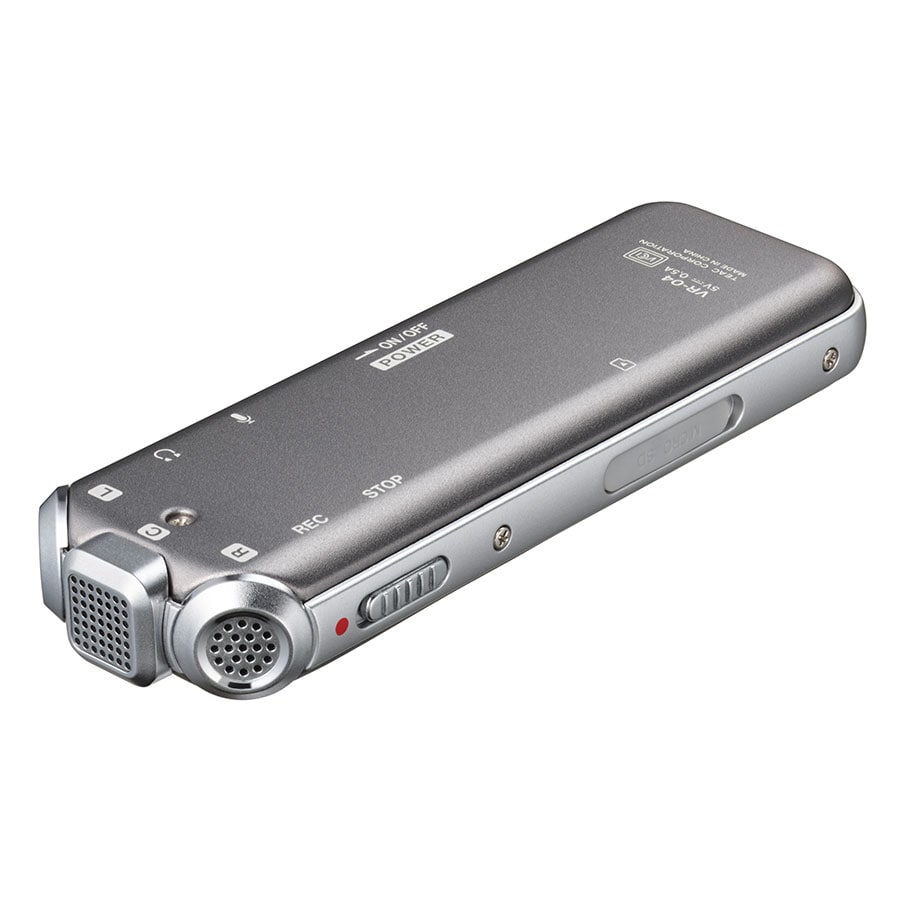

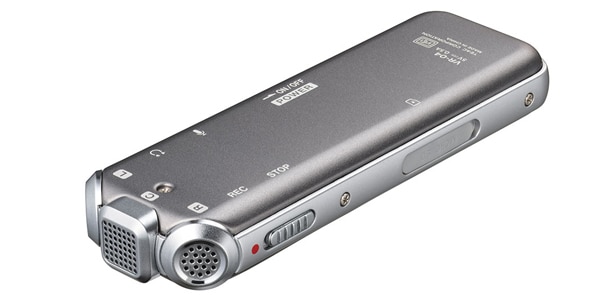

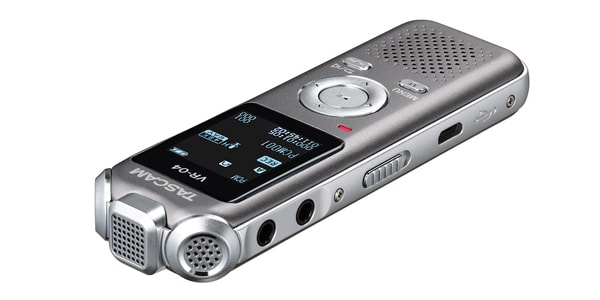

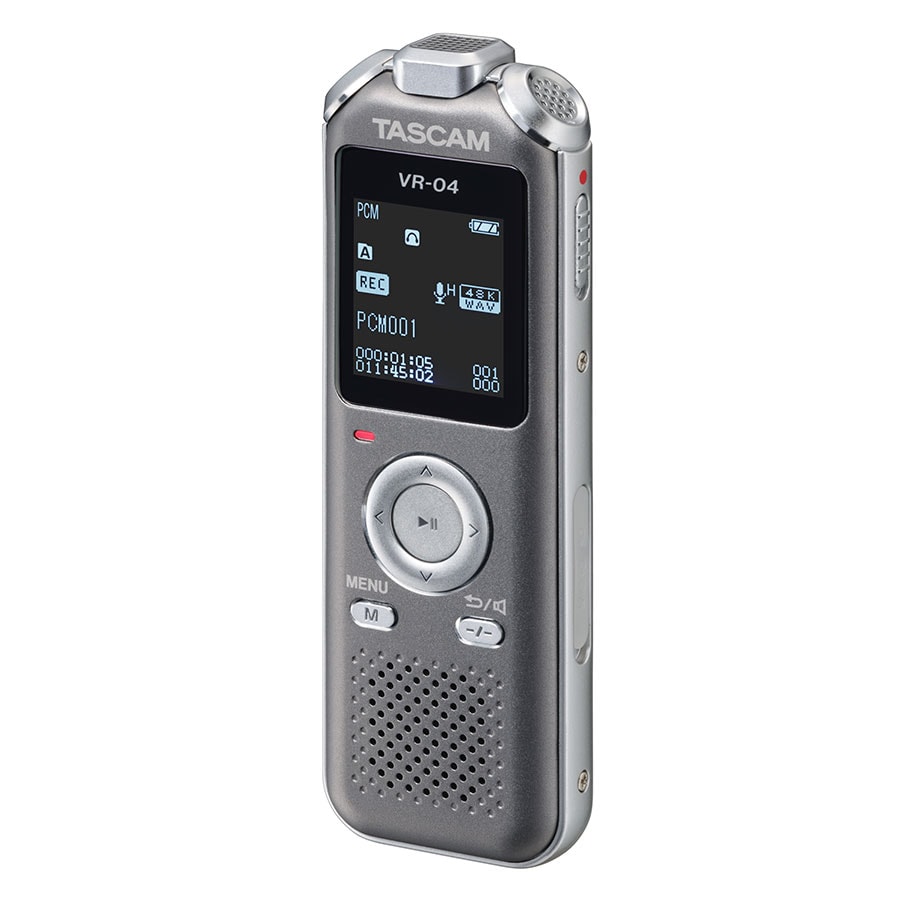

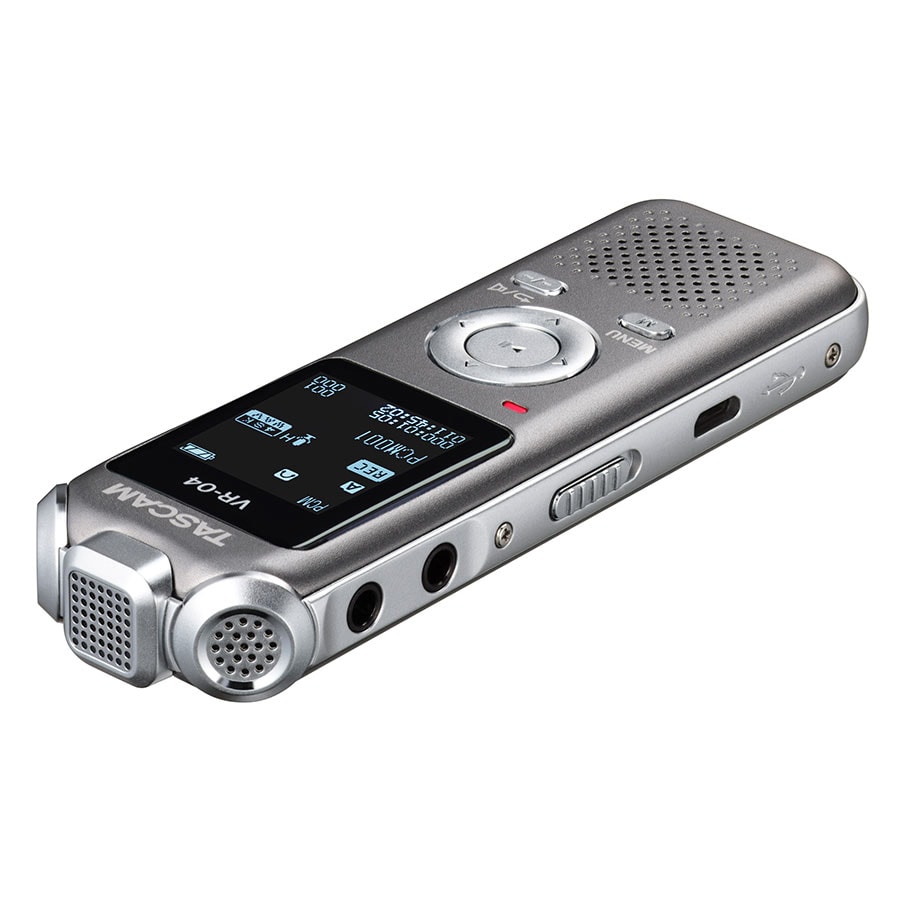

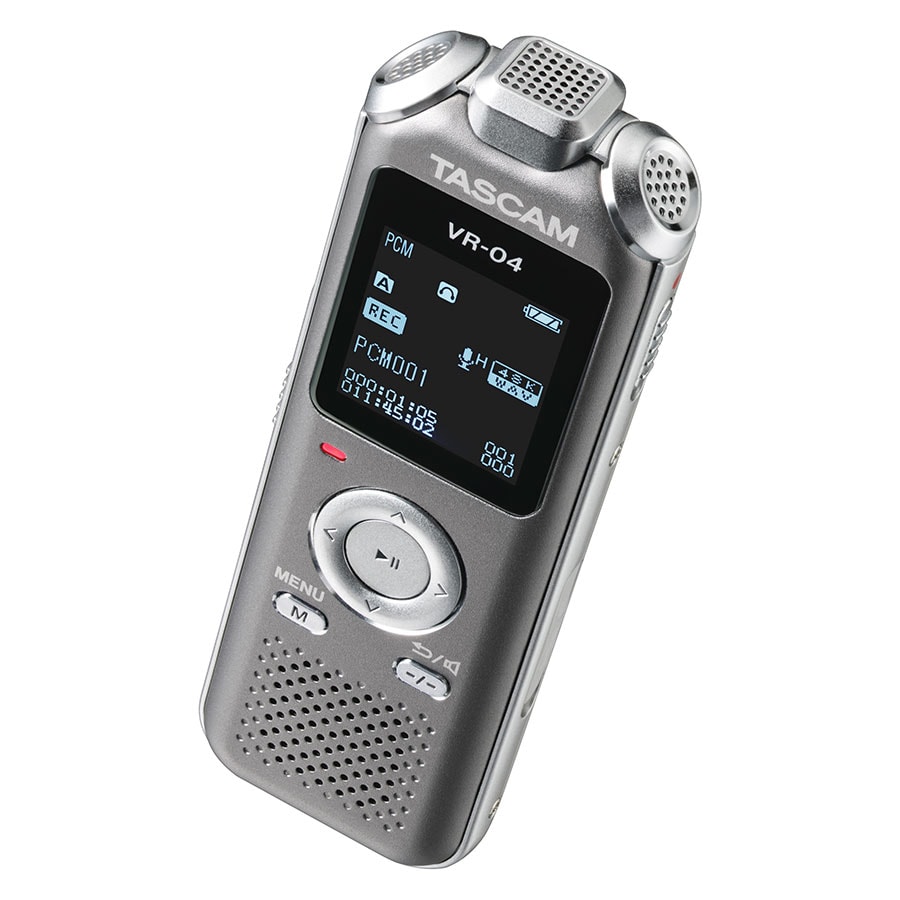

TASCAM / VR-04-GY　ICレコーダー　グレー

会議録音などのビジネスシーンはもちろん、学校での講義や講演、インタビューなど録音メモに便利なボイスレコーダーです。

■ Stereo IC recorder
■ Gray
■ Recording media
- Built-in memory: 8GB
*The usable area of ​​the built-in memory of the main unit is less than the display capacity.
- MicroSD card: 2GB
- MicroSDHC card: 4GB-32GB
■ File system: FAT32
■ File format, recordable time
Recording file format Recordable time Recording in the built-in 8GB memory
PCM (highest sound quality) mode WAV, 48kHz/16bit, stereo about 11 hours
NC (noise cancel) mode WAV, 12kHz/16bit, stereo about 46 hours
HQ (standard) mode MP3, 32kHz/128kbps, stereo approx. 134 hours
SP (long time) mode MP3, 8kHz/64kbps, monaural about 269 hours
SLP (maximum time) mode MP3, 8kHz/8kbps, monaural approx. 2,156 hours
RFM (FM recording) mode MP3, 32kHz/128kbps, stereo approx. 134 hours
INT (interview recording) mode WAV, 48kHz/16bit, stereo about 11 hours
EXT (external input recording) mode WAV, 48kHz/16bit, stereo about 11 hours
■ Playable file format
WAV 12k/24k/32k/44.1k/48k Hz, 16/24bit
MP3 8k-48k Hz, 8k-320k bps, VBR
WMA 8k-48k Hz, 8k-320k bps
AAC 8k-48k Hz, 8k-320k bps
■ Number of channels
- Built-in stereo microphone (left/right), 2 channels (stereo)
- Built-in microphone (center), 2 channels (monaural)
*In SP (long time) and SLP (maximum time) modes, monaural recording is used.
■ Playback speed control: Can be set in 16 steps from -8 to +8 (1 step in 4% increments)
■ Built-in microphone: Condenser microphone x 3 (unidirectional)
■ Built-in speaker: Maximum output 700mW, monaural
■ EQ setting (mode selection): Normal, Rock, Pop, Soft, Jazz, Classic, deep bass
■ FM Radio Tuner: 76.0MHz - 108.0MHz (Wide FM)
■ External input (EXT)
Connector: 3.5mm (1/8") stereo mini jack, unbalanced
Input impedance: 1 kΩ
■ Earphone (PHONES)
Connector 3.5mm (1/8") stereo mini jack, unbalanced
Maximum output 8mW + 8mW (16Ω)
■ USB
Connector: micro-B type
Format: USB2.0 HIGH SPEED mass storage class
■ Power supply: 1,000mAh built-in lithium-ion battery, USB bus power
*While connected to a computer, charging and storage functions are prioritized and playback and recording do not work.
■ Power consumption 0.3W (when earphones are connected)
■ Charging completion time Approximately 2.5 hours (fully charged)
■ Charging voltage/current 5V/0.5A
■ Battery life *Battery life may vary from the value stated depending on the usage environment.
At the time of recording
PCM (highest sound quality): 25 hours
NC (outdoor): 23 hours
HQ (standard): 28 hours
SP (long time): 28 hours
SLP (maximum time): 40 hours
RFM (FM recording): 16 hours
INT (interview/highest sound quality): 26 hours
EXT (external input/highest sound quality): 25 hours
Playback PCM (highest sound quality): 33 hours
NC (outdoor): 33 hours
HQ (standard): 38 hours
SP (long time): 39 hours
SLP (maximum time): 39 hours
FM reception: 27 hours
■ External dimensions 36.8 (W) x 106 (H) x 15 (D) mm
■ Mass 53.5g
■ Operating temperature: 5 to 35 °C
■ Accessories: Earphone (also used as FM antenna), USB cable (length 50 cm), instruction manual (with warranty)
