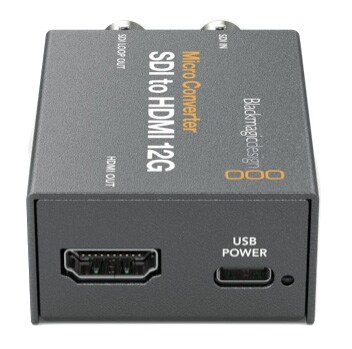

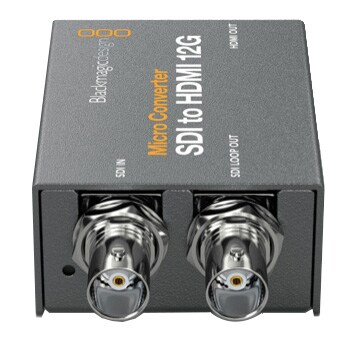

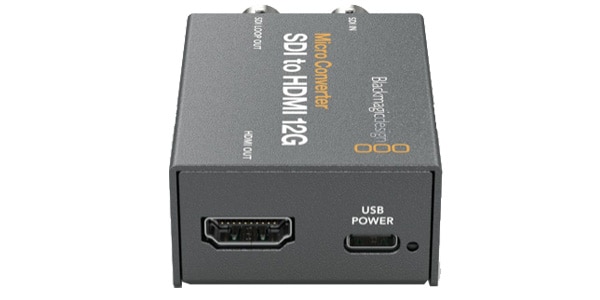

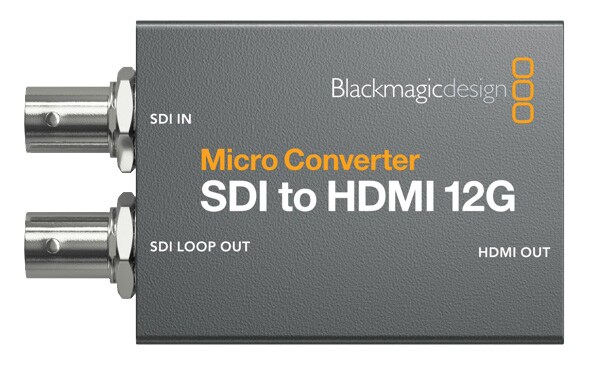

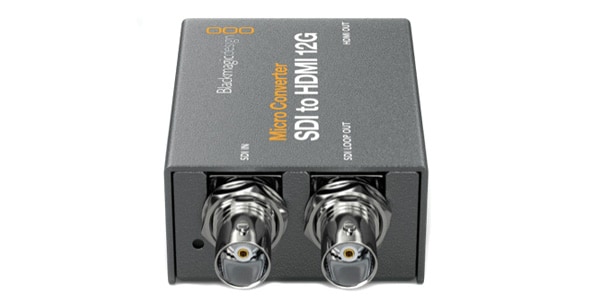

Blackmagic Design / Micro Converter SDI to HDMI 12G PSU with Power Supply

【国内正規品】　12G-SDIからHDMIへの放送品質コンバーター！フルサイズのHDMIおよびプロ仕様の12G-SDIインターフェースを搭載しています。

■ Video converter (12G-SDI → HDMI)
Power supply included

Connection
■ SDI video input: 1
■ SDI video output: Loop output x1
■ HDMI 2.0 video output:
Type A x1
■ SDI rate:
270Mb, 1.5G, 3G, 6G, 12G.
■ Supported multi-rate:
Automatically detect SD, HD, 2K, Ultra HD, 4K
■ Update, configuration, power supply:
USB type C

Format
■ D video format:
525i59.94 NTSC, 625i50 PAL
■ HD video format:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95,
1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
■ 2K video format:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
■ Ultra HD video format:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
■ 4K video format:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI.
■ SDI standard:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1
■ SDI video rate:
SDI video connection can be switched between 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
■ SDI color accuracy:
4: 2: 2. 33-point LUT can be loaded via software utility. Can be used for calibration and monitor color improvement.
■ SDI color space:
YUV
■ SDI automatic switching:
Automatically detect SD, 3G-SDI HD level A or level B, 2K DCI, Ultra HD, 4K DCI
■ HDMI video format:
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI.
■ HDMI color accuracy:
4: 2: 2. 33-point LUT can be loaded via software utility. Can be used for calibration and monitor color improvement.
■ HDMI color space:
YUV
■ Setting control:
Via macOS and Windows software utilities connected via USB
■ Operating system:
Mac icon
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later
Windows 10 (64-bit)
■ Software:
Upgrade internal software via USB
■ SIZE: 76.5 (W) x24.8 (H) x45.8 (D) mm 150g
