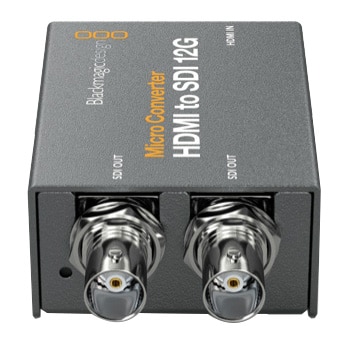

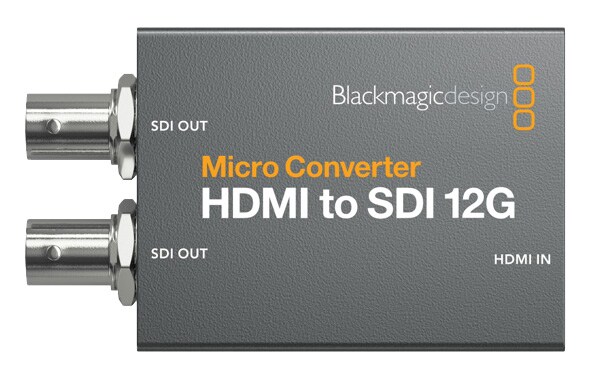

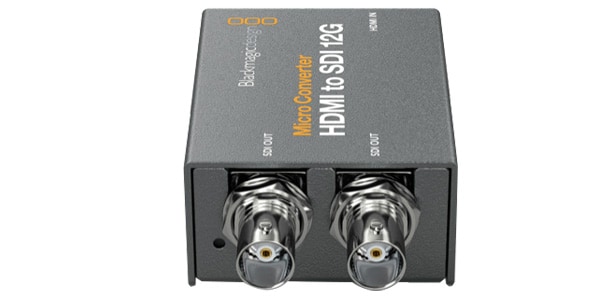

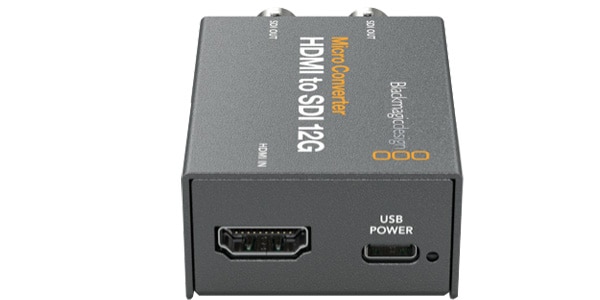

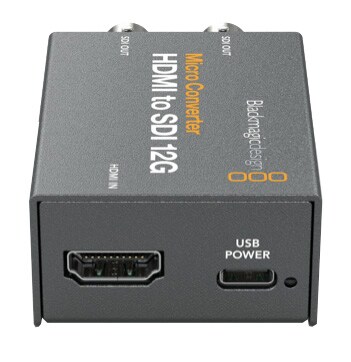

Blackmagic Design / Micro Converter HDMI to SDI 12G No Power Supply

[Official Japanese product] HDMI to 12G-SDI converter with two 12G-SDI outputs. Equipped with full-size HDMI and professional 12G-SDI interfaces.

■Video converter (HDMI to 12G-SD) *Power supply not included Connections ■SDI video output: Automatically matches 2 HDMI inputs. ■HDMI2.0 video output: Type A x1 ■SDI rate: 270Mb, 1.5G, 3G, 6G, 12G. ■Supported multi-rate: Automatic detection of SD, HD, 2K, Ultra HD, 4K ■Update, configuration, power supply: USB Type-C ■Relocking: Supported ■Micro Converter HDMI to SDI 12G: Format ■SD Video Format: 525i59.94 NTSC, 625i50 PAL ■HD Video Format: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 ■Ultra HD Video Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Formats: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI. SDI Standards: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1 ■SDI Video Rates: SDI video connection switchable between 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. ■SDI Color Accuracy: 4:2:2. 33 point LUT can be loaded via software utility. Can be used for calibration or monitor color improvement. ■SDI Color Space: YUV ■SDI Auto Switching: Auto detects SD, HD, Ultra HD and 4K DCI. User selectable Level A or Level B for 3G-SDI output. ■HDMI Video Formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI. ■HDMI Color Accuracy: 4:2:2. 33 point LUT can be loaded via software utility. Can be used for calibration and monitor color improvement. ■HDMI Color Space: YUV ■Copy Protection: Capture is not possible from copyrighted HDMI sources. Verify copyright ownership before capturing or streaming content. ■Settings Control: Via macOS? and Windows? software utility connected via USB ■Operating System: Mac icon Mac 10.15 Catalina, Mac 11.1 Big Sur or later versions Windows 10 (64-bit) ■SIZE: 76.5(W)x24.8(H)45.8(D) 150G
