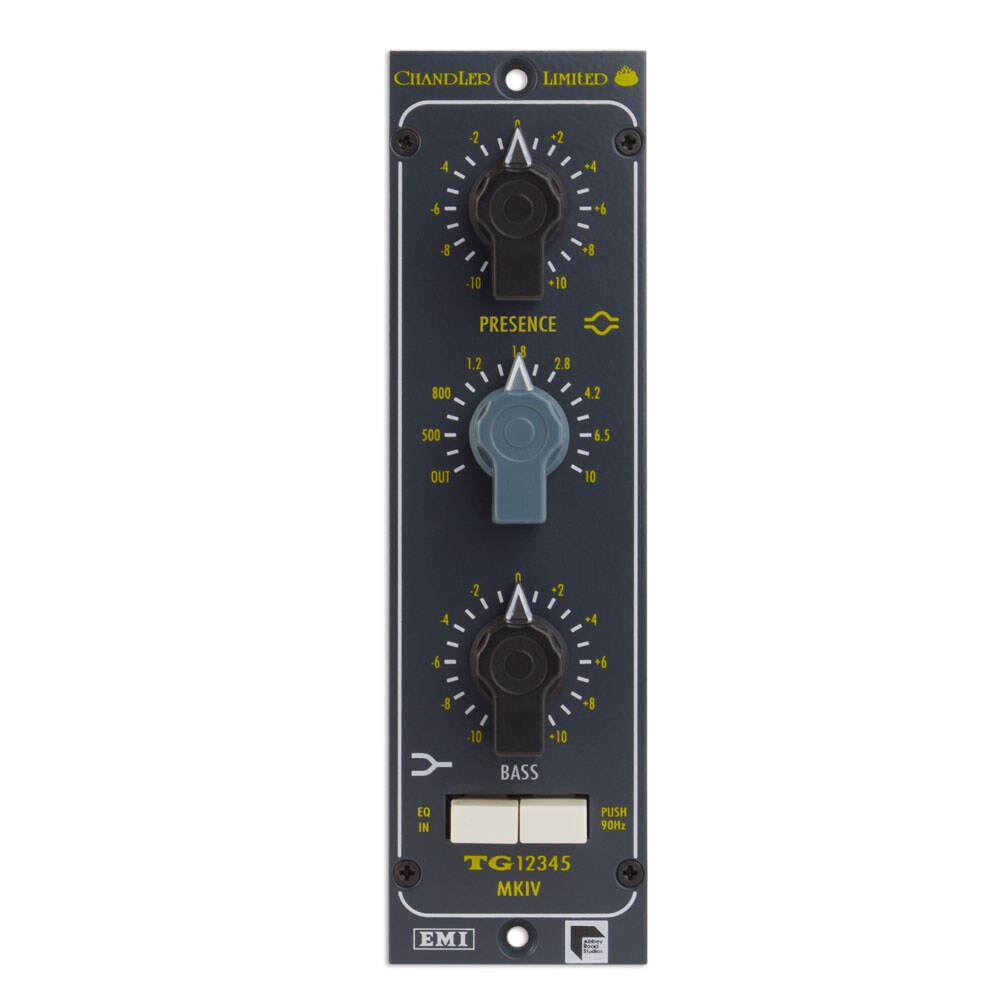

CHANDLER LIMITED / TG12345 MK IV

アビイ・ロード・スタジオの伝説。TGイコライザーのAPI500モジュール・バージョン。

■ Main features
- API500 compatible module (single space)
- Channel: Mono
- Circuit: Transistor, Discrete, Transistor
- Presence: 8 frequency switching, out position, continuously variable boost & cut
- Presence EQ curve: Bell & shelving (10 kHz)
- Presence frequency: 500, 800, 1.2, 1.8, 2.8, 4.2, 6.5, 10 kHz
- Bass: Frequency switching, continuously variable boost & cut
- Bass EQ curve: Shelving
- Bass frequency: 150, 90 Hz
- Power supply: API500 module compatible +/-16v
- Max. current draw: +16v@110ma/-16v@80ma
