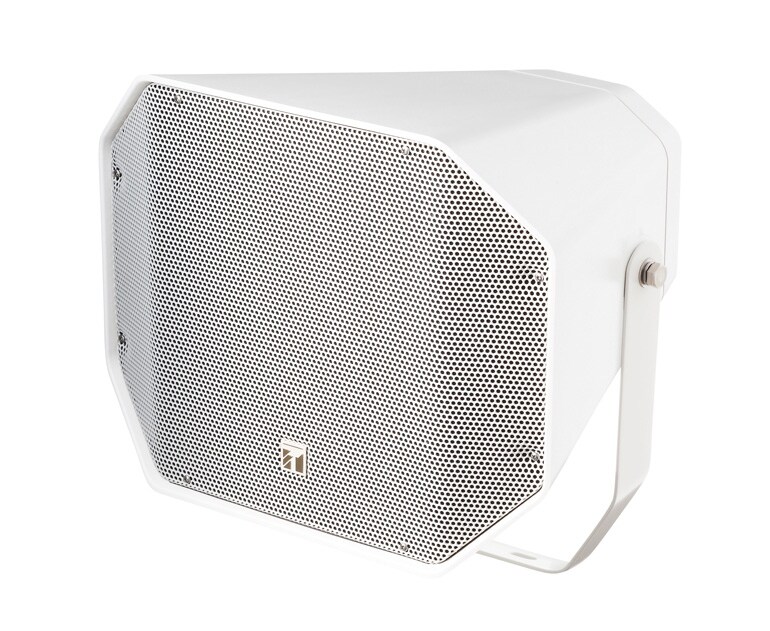

TOA / CH-601W

A two-way speaker with a 16cm cone speaker and a 2.5cm tweeter arranged coaxially. It has acquired dustproof and waterproof rating IP66. It can broadcast high quality sound with high clarity not only indoors but also in semi-outdoor places such as multi-storey car parks, and outdoors such as grounds and parks. The color is white.

■Rated input: 60 W ■Rated impedance: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W) ■Output sound pressure level: 100 dB (1 W, 1 m) ■Frequency response: 100 Hz to 20 kHz ■Speakers used: Low-frequency: 16 cm cone type, high-frequency: 2.5 cm tweeter ■Speaker type: L class (92 dB (A) or more when measured with the second signal of the voice alarm sound according to the Fire Service Act Enforcement Regulations) ■Sound power level: 98 dB (1 W) ■Directivity classification: W (0° to 30° Q=5, 30° to 60° Q=3, 60° to 90° Q=0.8) ■Directivity angle: Horizontal: 90°, Vertical: 80° ■Input terminal: Speaker cable (black: HOT, white: COM) ■Operating temperature range: -10°C to +50°C ■Dustproof and waterproof performance: IP66 ■Finish Body: ABS resin, white (approximate Munsell N9.5 color), painted Net: Surface-treated steel plate, white (approximate Munsell N9.5 color), painted Angle: Stainless steel, white (approximate Munsell N9.5 color), powder coated ■Dimensions: 388 (W) x 310 (H) x 367 (D) mm ■Weight: 7.6 kg ■Optional accessories Speaker mounting bracket: SP-201 Pole mounting band: YS-60B Speaker stand: ST-34B
