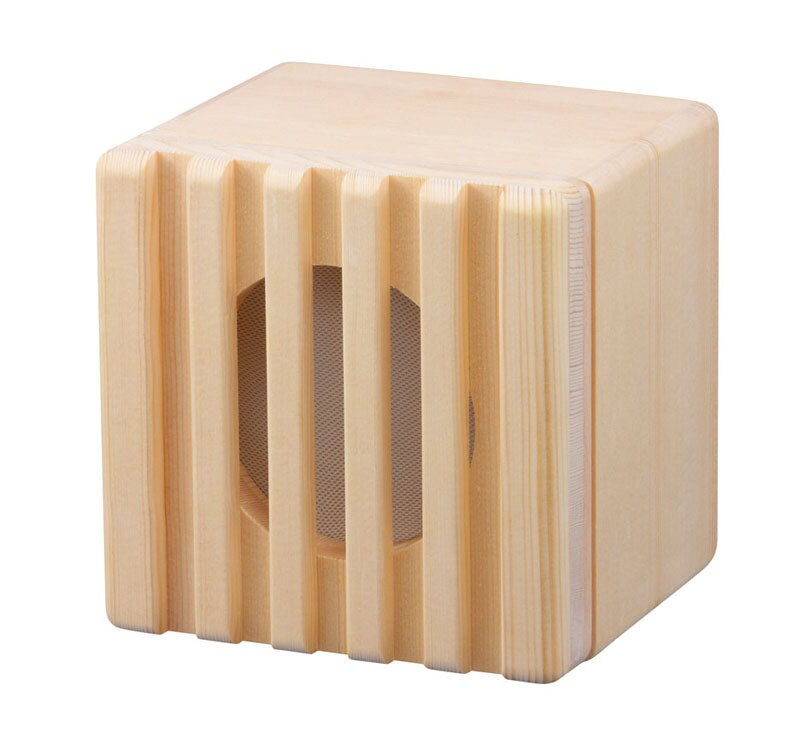

TOA / BS-4D

Heat-resistant speaker exclusively for dry saunas, using a heat-resistant 12 cm full-range speaker unit. A sealed speaker system, using spruce wood from North America for the enclosure. Since the structure does not allow hands to touch the metal parts when installed, there is no need to worry about burns even if the speaker is installed in a constantly hot place such as a dry sauna bath. In addition, the spruce wood of the enclosure is often used for sauna interior materials, so it matches the interior design.

■Enclosure type: sealed type ■Rated input: 5 W ■Rated impedance: 2 kΩ (5 W), 3.3 kΩ (3 W), 5 kΩ (2 W) When not using the built-in matching transformer: 8 Ω (5 W) ■Output sound pressure level: 88 dB (1 W, 1 m) ■Frequency response: 90 Hz to 10 kHz ■Speaker used: Heat-resistant 12 cm cone type ■Speaker type 3 W, 5 W: L class (Fire Service Act Enforcement Regulations: 92 dB (A) or more when measured with the second signal of the voice alarm sound) 2 W: M class (Fire Service Act Enforcement Regulations: 87 dB (A) or more when measured with the second signal of the voice alarm sound) ■Input terminal: M4 screw terminal, barrier distance 8.8 mm ■Operating temperature range: -20 ℃ to +105 ℃ ■Finish Enclosure, baffle: North American spruce, buffed finish Mounting hardware: Stainless steel ■Dimensions: 170 (W) x 170 (H) x 153 (D) mm ■Weight: 2.2 kg
