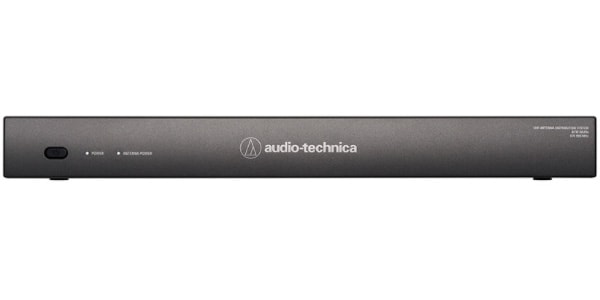

audio technica / ATW-DA49a

Audio Technica's UHF antenna distribution system. Wideband model compatible with 470 to 990MHz. Includes rack mount kit.

■UHF Antenna Distribution System ■Frequency range: 470-990MHz ■Number of inputs/outputs: 2x1 input, 2x4 output, 2x1 cascade output ■Input/output terminals: BNC ■OIP3: +32dBm (typ.) ■RF output gain: +1.0dB±3dB ■Input/output gain: +1.0dB±3dB ■Antenna power supply: DC12V, max. 250mA x 2 ■Power supply: AC100-240V 50/60Hz DC12V 1A (center positive) switching external power supply ■Operating temperature range: -5 to 45°C ■External dimensions (excluding protrusions): H44.5 x W420 x D183mm ■Weight: 1.5kg ■Accessories: Rack mount kit: Rack mount (short) x 2, cover cap x 2, mounting screws x 4 BNC cable x 8, AC adapter 12V DC, 250 mA max.
■ Current Consumption: 200 mA ± 50 mA at 12 V DC
■ Gain: +1.0dB typical (within specified bandwidth)
■ Input: 2 x 1 inputs
■ OIP3: +32dBm typical (within specified bandwidth)

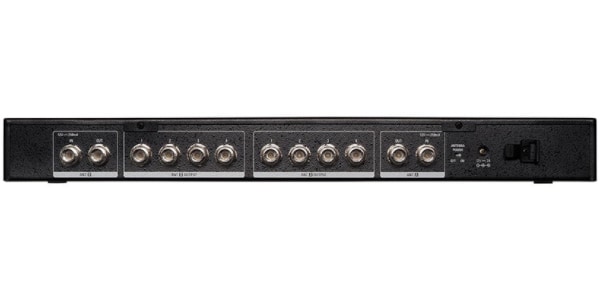

■ Output: 2 x 4 outputs + 1 cascade output
■ Termination Type: BNC Female
■ Operating Bandwidth: 470-990MHz

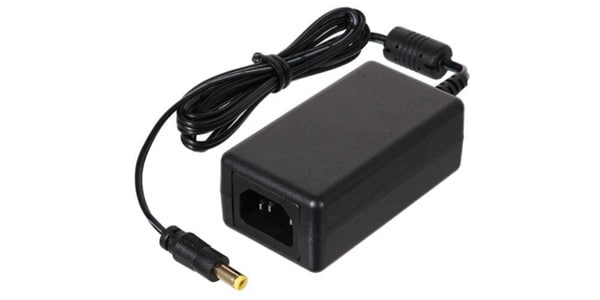

■ Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
■ Dimensions: 420 x 180 x 144 mm
■ Weight: 1.5 kg

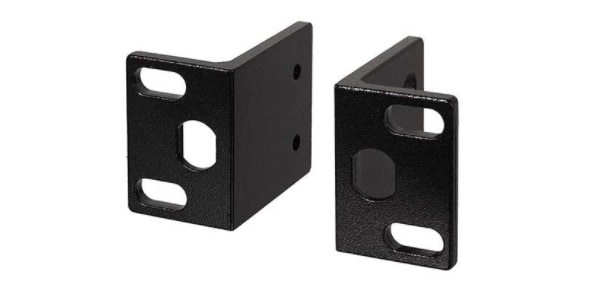

■ Accessories: PSU, rack ears (short), BNC cable x8
