ARP / ARP2600-M LTD SEMI-MODULAR SYNTHESIZER

Limited reprint of the famous ARP / 2600. The size is reduced by about 60% and shorter patch cables can be used. Simply connect a USB-class compliant MIDI controller such as the KORG microKEY, nanoKEY or SQ-64 to the USB-A port for easy control.

The legendary ARP 2600, the most iconic synthesizer for modern musicians, is back in the modern era with a limited carry case and KORG's USB / MIDI keyboard "MICROKEY-37".

Arguably the most iconic synthesizer ever, the ARP 2600. Its sound has been used in countless records, film scores, television shows, and game soundtracks since its introduction in the 1970s and continues to be an integral part of the music world. The new ARP 2600 M delivers world-renowned sounds in a more compact and portable format, with new features added to make it the ideal embodiment of this historic synthesizer, limited edition. The KORG MIDI controller "MICROKEY-37" is included in a special carry case and released.

■ Legendary Rebirth

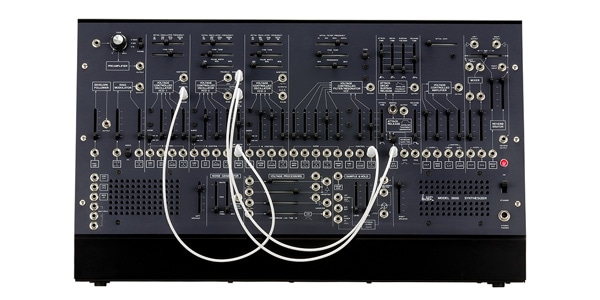

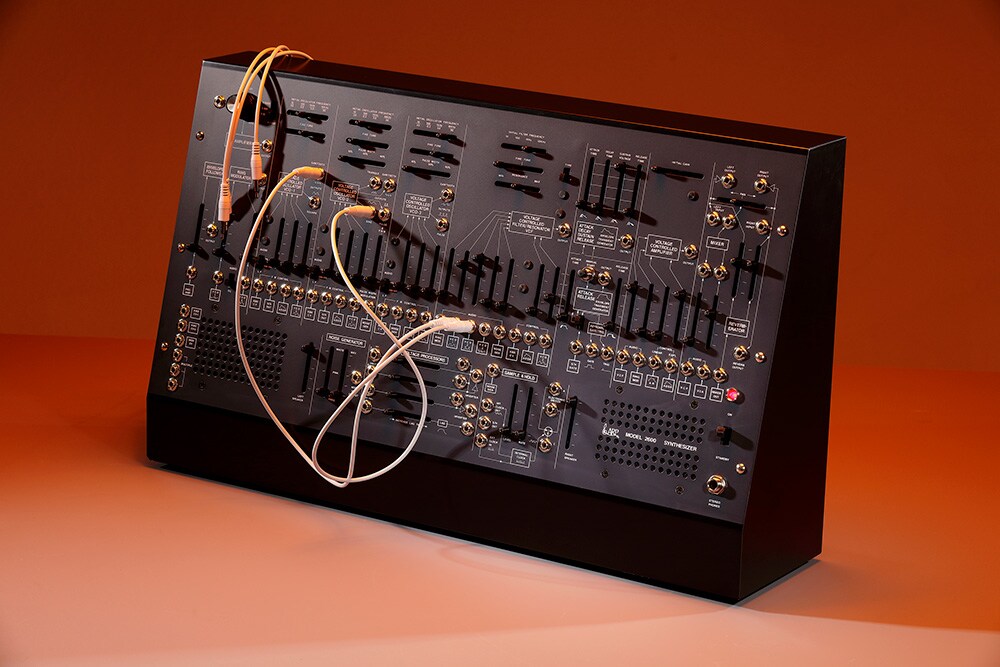

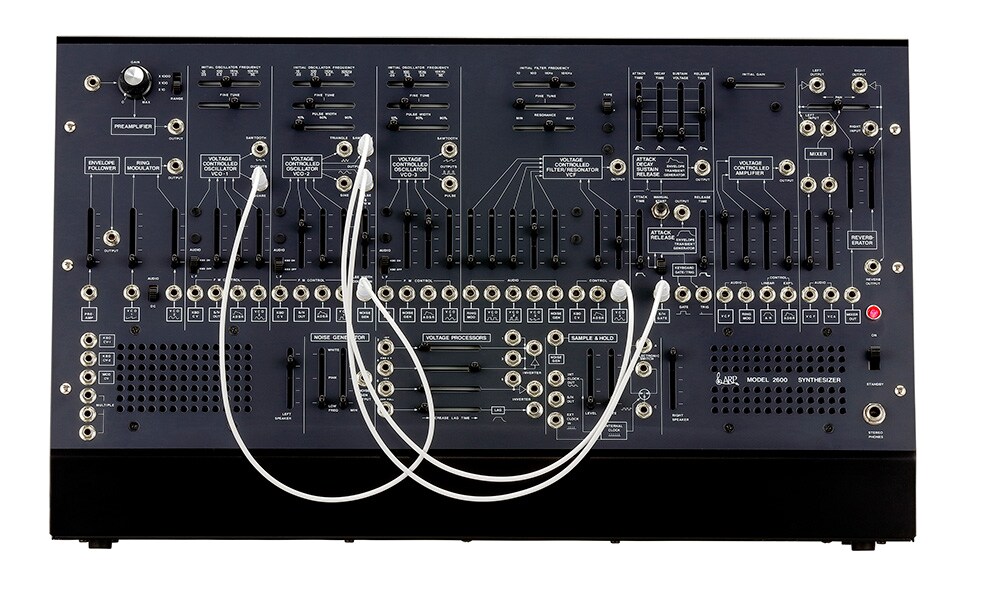

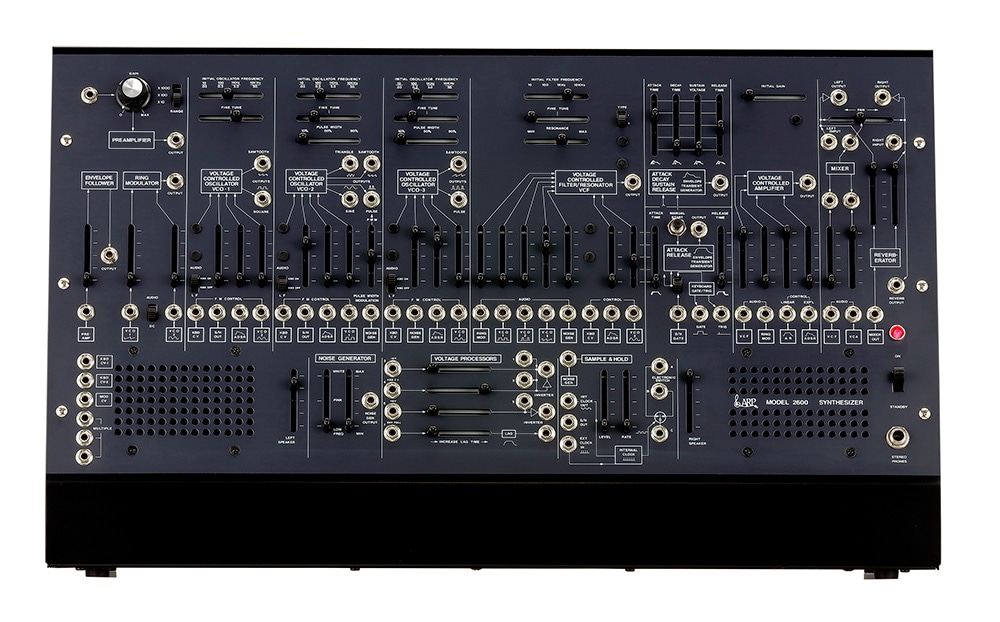

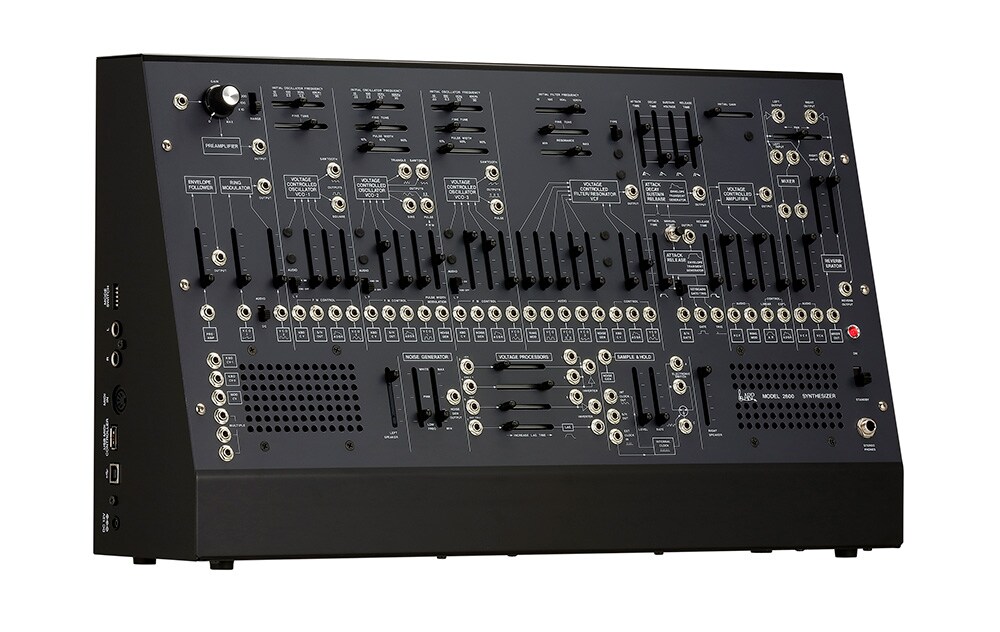

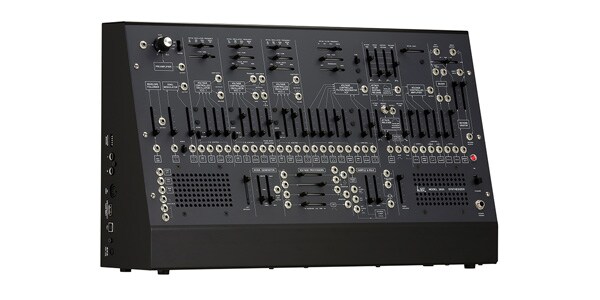

The ARP 2600 M is about 60% the size of the original, making it lighter and more portable, making it easier to set up in the studio or live venue. It integrates the same analog circuitry and components as the ARP 2600 FS, faithfully reproducing the characteristic sound of ARP.

■ High quality made in Japan
Like the ARP 2600 FS, the ARP 2600 M is manufactured in Japan with the same utmost care and extraordinary quality standards, and uses the same analog electronic components to accurately reproduce the original sound and texture.

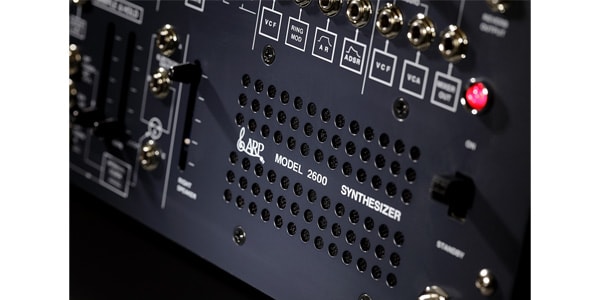

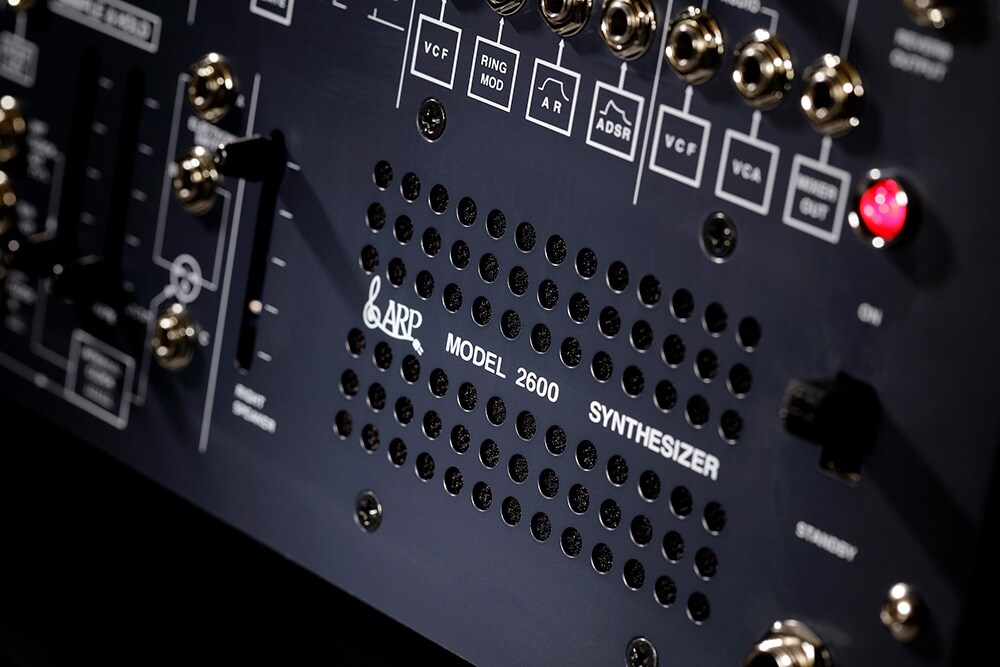

The spring reverb has been newly adopted to match the new body size, but it still has the same rich effects as before.

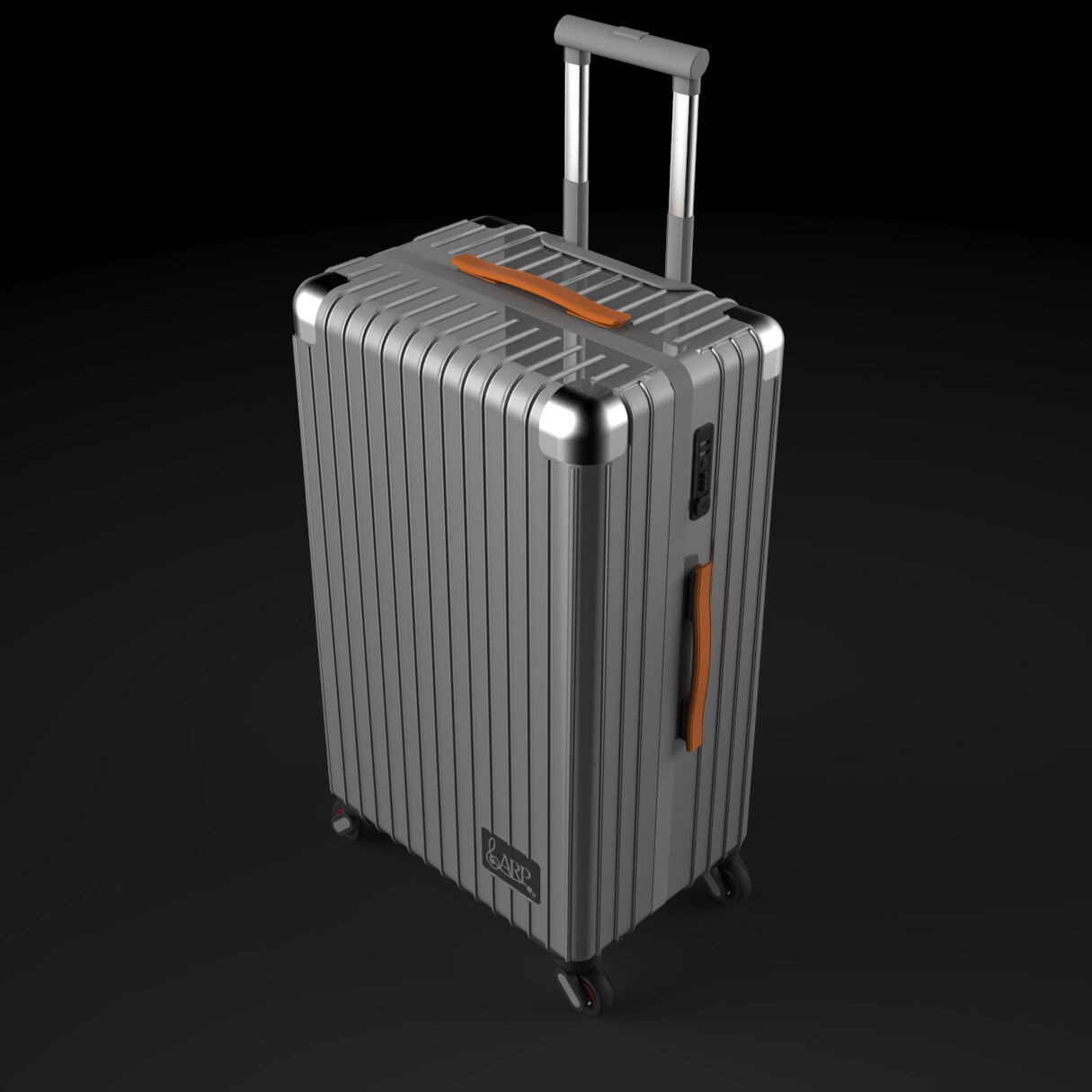

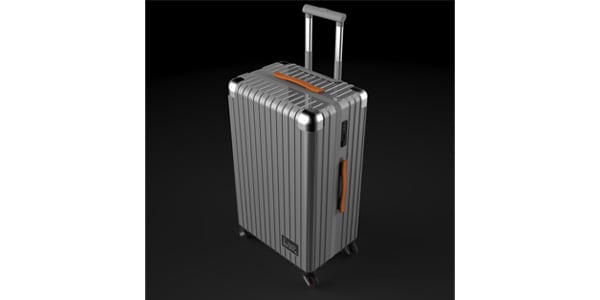

The ARP 2600 M comes with a dedicated carry case and KORG MIDI controller "MICROKEY-37", which not only protects the instrument, but is also easy to carry thanks to the custom casters equipped with special impact damping technology. increase.

■ Plug and play
You can easily control this unit by simply connecting a USB-class compliant MIDI controller such as the KORG microKEY, nanoKEY, or SQ-64 to the USB-A port of the ARP 2600 M.

■ Specifications
Operating temperature conditions: 0 to +40 ° C (no condensation)
Maximum polyphony: 2 voices during duophonic, usually monophonic

VCO-1 (Voltage Controlled Oscillator 1)
・ Waveform: sawtooth wave, square wave
・ Frequency range: Approx. 0.03Hz ~ 30Hz (low frequency mode), Approx. 10Hz ~ 10kHz (audio mode)
・ Voltage control method: 1 V / oct (C 3.0 V)

VCO-2 (Voltage Controlled Oscillator 2)
・ Waveform: Sawtooth wave, pulse wave (variable pulse width), triangle wave, sine wave
-Frequency range: Approx. 0.03Hz to 30Hz (low frequency mode), Approx. 10Hz to 10kHz (audio mode)
・ Pulse width: 10% to 90%
・ Voltage control method: 1 V / oct (C 3.0 V)

VCO-3 (Voltage Controlled Oscillator 3)
・ Waveform: Sawtooth wave, pulse wave (variable pulse width type)
・ Frequency range: Approximately 0.03Hz to 30Hz (low frequency mode), Approximately 10Hz to 10kHz (audio mode)
・ Pulse width: 10% to 90%
・ Voltage control method: 1 V / oct (C 3.0 V)

VCF (Voltage Controlled Filter)
・ Type: TYPE I (early type low-pass filter 24dB / oct) TYPE II (late type low-pass filter 24dB / oct)
・ Frequency range: Approximately 10Hz-10kHz
・ Resonance: 1/2 ~ Self-oscillation

VCA (Voltage Controlled Amplifier)
Control voltage: AR type (internal connection) ADSR type (internal connection)
Noise generator
Noise spectrum type (white, pink)
Ring modulator
-Type: Analog multiplier
-Input signal (internal connection): VCO-1 sawtooth wave, VCO-2 sine wave

Sample & hold
Sample input
Noise (internal connection)

Audio output terminal

Front panel (LEFT, RIGHT OUTPUT terminal)
-Connector: φ3.5 mm monaural phone terminal
・ Maximum output level: + 9dBu @ 10kΩ load
・ Output impedance: 1.2 kΩ

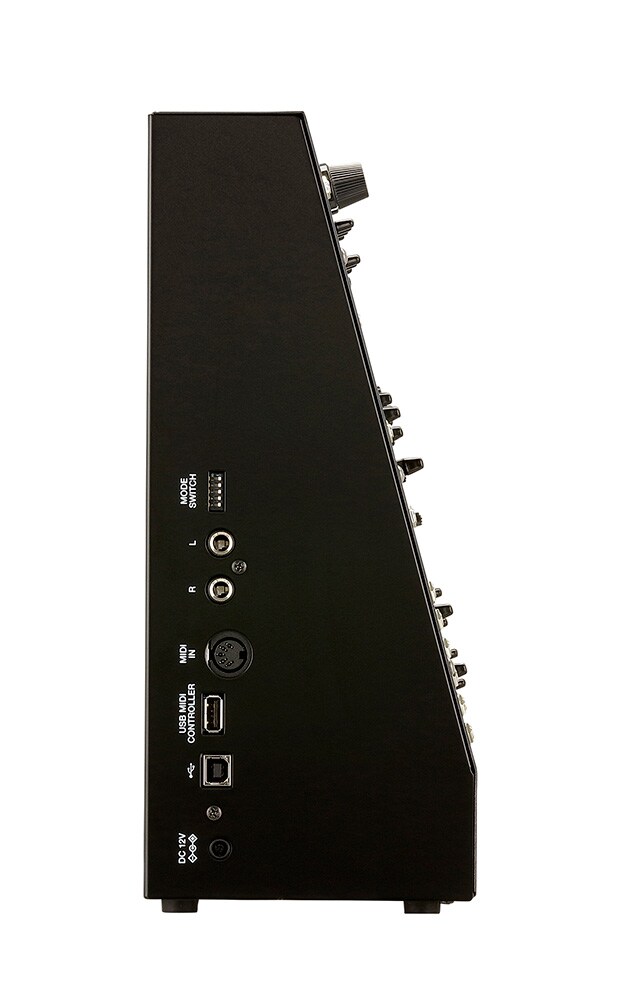

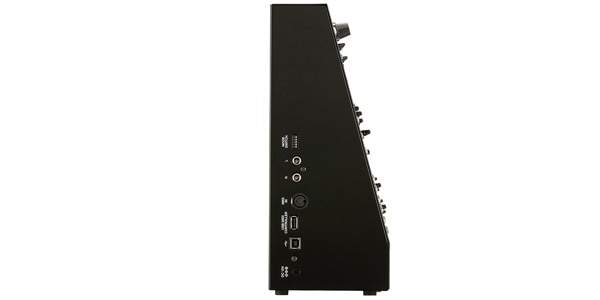

Side panel
-Connector: φ6.3mm monaural phone terminal
・ Maximum output level: + 4dBu @ 600Ω load
・ Output impedance: 1.2kΩ

Headphone jack
-Connector: φ6.3mm stereo phone terminal
・ Maximum output level: 50mW + 50mW @ 33Ω load
・ Output impedance: 20Ω

External audio input (PREAMPLIFIER INPUT) terminal
-Connector: φ3.5 mm monaural phone terminal
・ Maximum input level: + 2dBu (RANGE x 10, GAIN knob maximum)
・ Input impedance: 100kΩ

MIDI terminal: IN
USB terminal: A type, B type
Power supply: AC adapter (KA320)
Power consumption: 13W
External dimensions (W x D x H) / mass: 520 x 129 x 311 mm / 5.9 kg

accessories
・ Hard case
・ AC power cord (KA320)
・ Patch cable (10)
・ Software license bundle card
·operating instructions
・ ARP sticker

Bundled software included
Reason Lite for songwriting, Izotope's Ozone Elements for AI-based mastering, Skoove for improving keyboard playing skills, software synths such as KORG, and more to take your music to the next level. Comes with music software.

* Sales quantity is limited due to limited production. Please note that it may take some time to order.
