CLASSIC PRO / CXA047

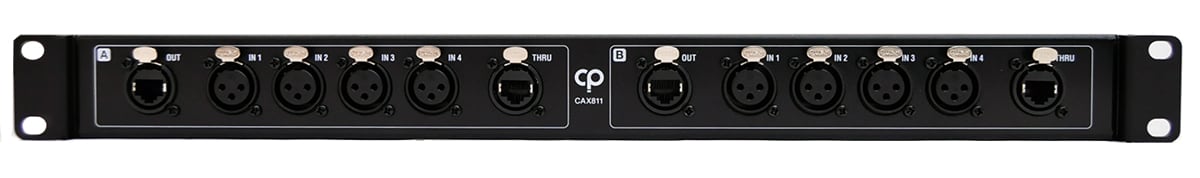

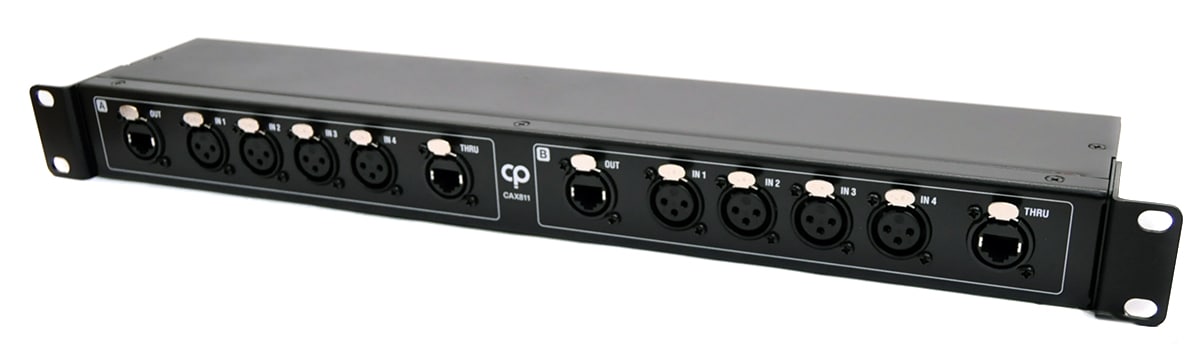

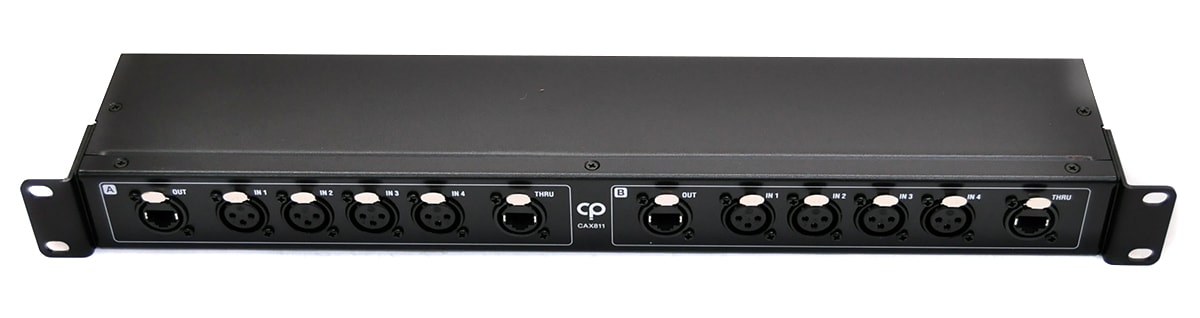

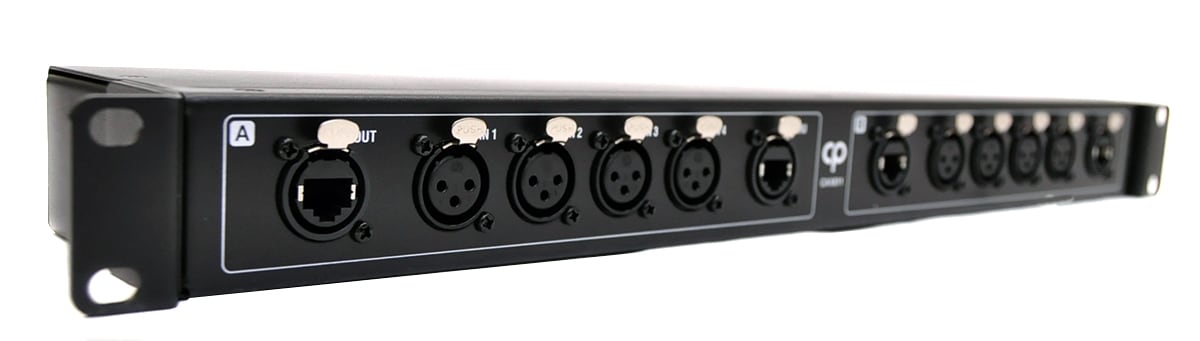

This is an AUDIO/DMX extender equipped with two sets of four XLR input terminals. By connecting it to another CAX series with a LAN cable, two sets of four channels (8 channels in total) can be transmitted.

■Audio/DMX multi-cable box ■2 sets of 4 female XLR (input), total of 8 channels ■2 LAN OUT connectors (A/B) ■2 LAN THRU connectors (A/B) The signal input to the XLR is output from both the LAN OUTPUT and THRU. ■How to use Connect to other CAX series devices using a LAN cable. *Please use a shielded CAT5e or CAT6 EtherCon cable. *Not compatible with BDM104 and BDF104 as the pin arrangement is different. *Pin arrangement 1: 3+ 2: 3- 3: 2+ 4: 1+ 5: 1- 6: 2- 7: 4+ 8: 4-
