SENNHEISER / EW 100 G4-CI1-JB Instrument Set

Instrument set made by SENNHEISER. It is a general-purpose model that is almighty for vocals, musical instruments, and recording.

■ Features
・ A general-purpose model that is almighty for vocals, musical instruments, and recording
・ Half rack size receiver that can select B type 30ch
・ Up to 8 units can be used at the same time
・ Easy setup with infrared sink between transmitter and receiver ・ Equipped with scan function to avoid radio wave interference
・ The receiver display shows the remaining battery level of the transmitter.
・ Quick frequency setting by receiver link function
・ Includes 6.3mm jack conversion CI 1-N cable for connecting musical instruments
・ Up to 8 hours drive with 2 AA alkaline batteries

■ Specifications

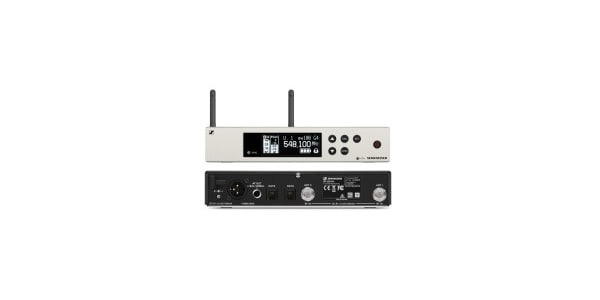

[Receiver EM? 100? G4]
Model: EM 100 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Reception frequency: 30 frequencies, switched at 125kHz intervals
Reception method: True diversity
Intermodulation attenuation: 65 dB or higher
Blocking: 70 dB or more
Compander: Sennheiser HDX
Squelch: Low: 5 dBV, Middle: 15 dBμV, High: 25 dBμV
Pilot tone squelch: switchable on / off
Antenna input: 2 x BNC connector
AF output level (peak deviation, 1kHz): 6.3 mm Jack: +12 dBu / XLR -3M: +18 dBu
AF output adjustment range: 48 dB (adjustable in 3 dB steps)
Signal noise ratio (1 mV, peak deviation): 110 dBA or more
Power supply: 12 V DC
Current consumption: 300 mA
Dimensions: Approximately 190 x 212 x 43 mm
Weight: Approximately 980 g

[Transmitter SK100G4]
Model: SK 100 G4
Frequency range: 806.125-809.750 MHz
Transmission frequency: 30 frequencies, switched at 125kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF / RF mute, disabled, switchable
Remote switch (RMS1) connection:-
Pilot tone squelch: switchable on / off
Input connector: 3.5 mm jack
Input sensitivity adjustment range: 60 dB (adjustable in 3 dB steps)
Signal noise ratio (1 mV, peak deviation): 110 dBA or more
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: Usually 8 hours
Dimensions: approx. 82 x 64 x 24 mm
Mass (including batteries): Approximately 160 g

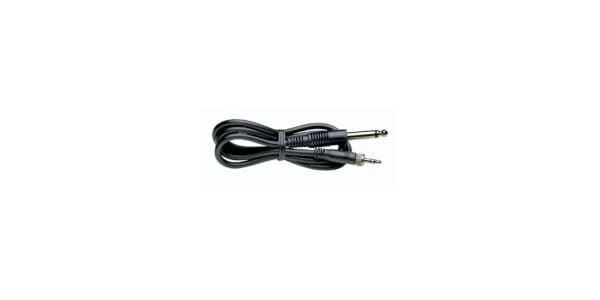

[Cable CI1-N]
Model number: CI1-N
Cable to connect the output from the instrument to the body pack transmitter
6.3 mm standard jack plug ⇒ 3.5 mm jack plug (screw lock type)

■ Packing items:
1 EM 100 receiver
1 SK 100 transmitter
CI 1-N 1 instrument cable
1 AC adapter (NT 2-3)
2 rod antennas
1 GA 3 rack mount kit
1 data connection cable
2 batteries
