ELATION / KLF060

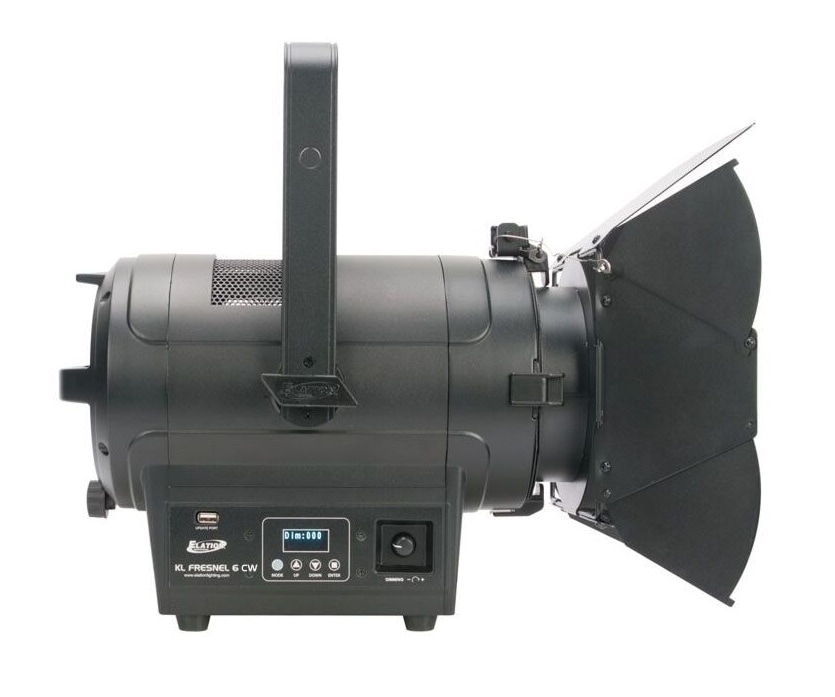

A spotlight equipped with a 150W, 5600K cool white LED. Equipped with a Fresnel lens. Brightness and other settings can be adjusted using the buttons and knobs on the side of the unit.

■Light Source - 350W Cool White LED Engine, 5600K, 97CRI - Average LED Life 50,000 hours (Note 1) ■Photometric Data - Maximum 14,000 lumen output - 16,762 LUX 1,557 FC @ 9.8 ft (3m) (min zoom) - 1,462 LUX 136 FC @ 9.8 ft (3m) (max zoom) - Zoom Range: 11°-56° - Beam Angle: 11°-56.2° - Field Angle: 17.9°-77° ■Effects - Motorized Zoom - Electronic Dimming and Strobe - Variable 16-bit dimming modes and curves ■Color - 5,600K Cool White LED ■Control/Connection - Manual and DMX controlled dimming, shutter and zoom - Rotary dial for dimming and zoom - 5 DMX channel modes (2/3/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/23/24/25/26/27/28/30/31/32/33/34/35/36/37/48/49/50/51/52/53/54/55/56/57/58/59/60/61/62/63/64/65/66/67/68/69/70/71/72/73/74/75/76/77/78/79/78/79/80/81/82/83/84/85/86/87/88/89/90/91/92/93/94/95/96/97/98/99/ 6/7) - 4-button control panel LCD menu display - RDM (Remote Device Management) - 3/5 pin DMX and IP65 locking power input/output connections - Wired digital communication network ■Size/Weight - Length: 445mm - Width: 327.5mm - Height: 456mm - Weight: 12.7kg ■Power - AC 100V 50/60Hz - Maximum power consumption: 430W - Temperature range: 5°F to 113°F (-15°C to 45°C) - Power links: 3 at 110V, 6 at 240V ■Included accessories - Gel frame and rotating barn door - IP65 locking power cable ■Approvals/Ratings - CE | cETLus | IP20 Note 1: Under test lab conditions. Actual results may vary based on factors including but not limited to environmental conditions, power/voltage, usage patterns (repeated on/off), control and dimming.
