M-AUDIO / Uber Mic

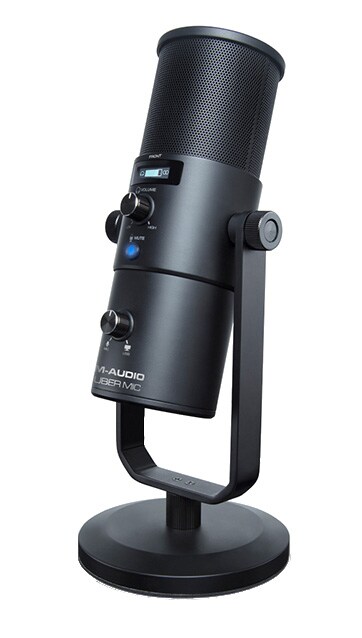

Uber Mic, a USB microphone that can be easily used for recording musical instruments and vocals, and for live distribution.

USB microphone

Make recording simpler. Uber Mic is the perfect solution for any recording need. It is a condenser microphone that integrates technology that supports various styles of recording, from recording live musical instruments and vocals to recording podcasts and live distribution.

Uber Mic is equipped with a large diaphragm 3-capsule condenser microphone that is ideal for capturing high-quality audio such as distribution, vocals, live instruments, and percussion.

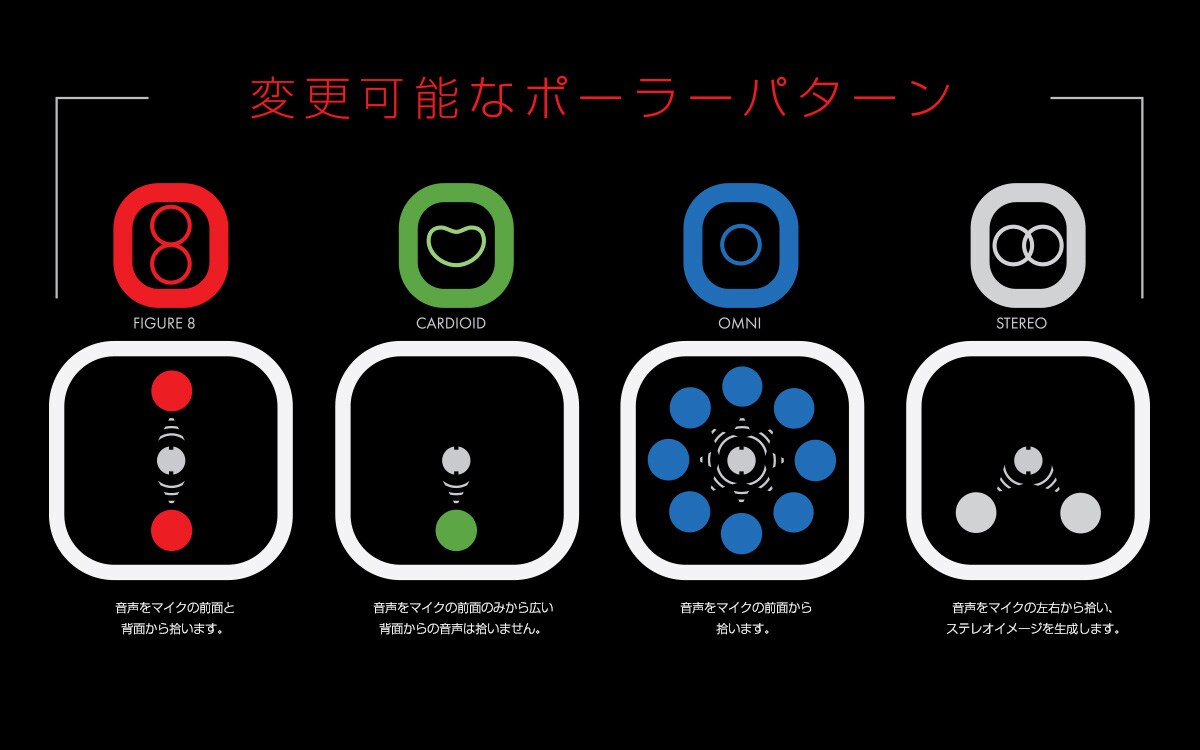

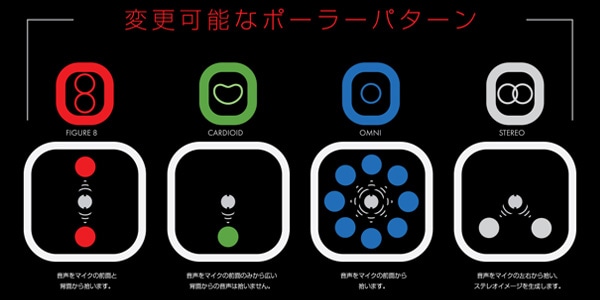

With four selectable pickup range patterns: unidirectional, omnidirectional, bidirectional, and stereo, the Uber Mic can be used for virtually any recording application. Use the LCD display to select your desired recording pattern and you're ready to record.

Studio quality sound
For any recording, Uber Mic promises excellent studio quality recordings. By adopting the original A / D converter, a dynamic range that captures subtle expressions is realized. By combining a wide frequency response of 30 to 20,000 Hz with a sample rate of up to 48 kHz, you can record a completely clear sound that is close to the original sound.

Intuitive control

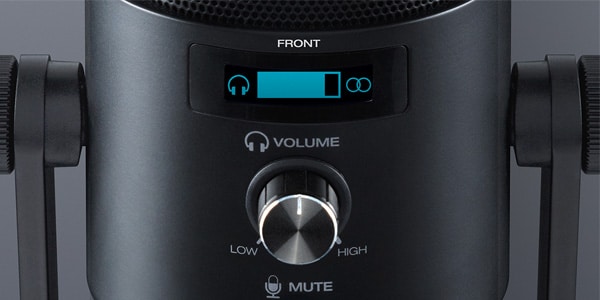

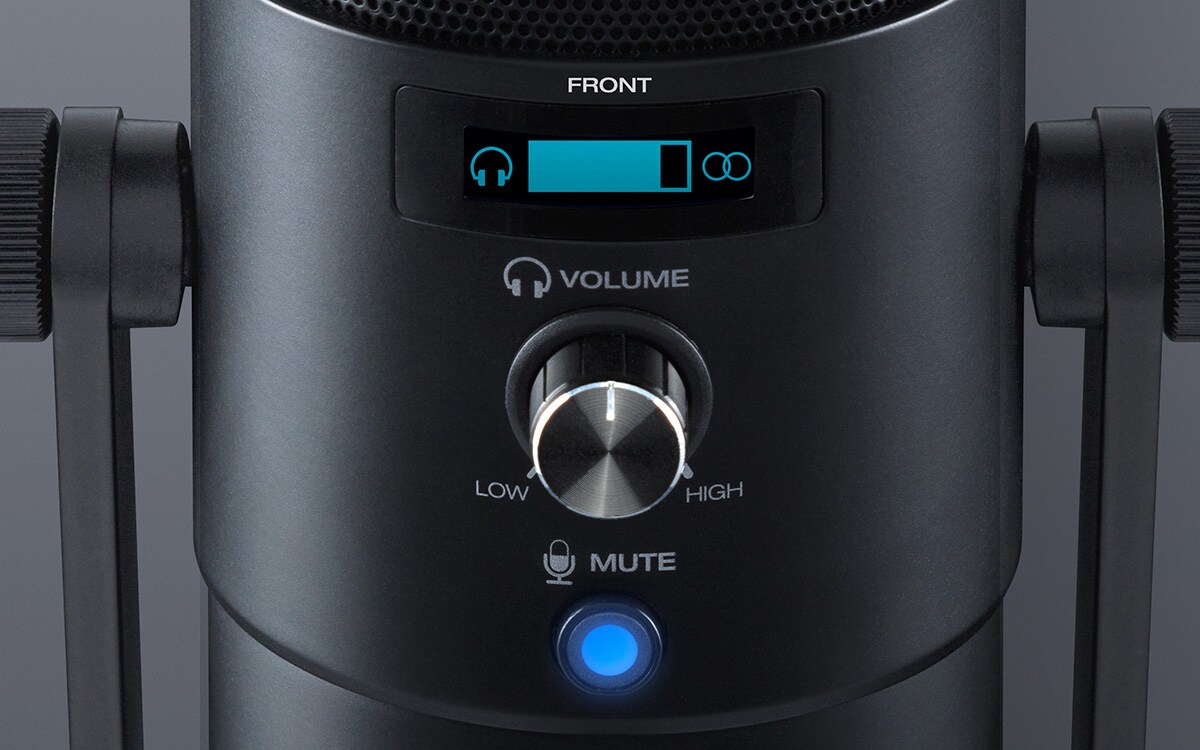

A USB / direct mixing control with volume control control located on the front enables recording and monitoring with zero latency. Furthermore, the mute control of the microphone and the headphone terminal are carried.

■ Main features of Uber Mic
Intuitive operation regardless of situation
Achieves clear and natural sound with wide frequency characteristics of 30 to 20,000Hz
3-capsule condenser microphone with single point stereo
4 customizable polar patterns
Polar pattern: unidirectional, bidirectional, omnidirectional, stereo
1/8 inch headphone jack with built-in headphone amplifier for monitoring
Zero-latency recording and monitoring is possible with USB / direct mixing control equipped with volume control.
Microphone mute function
Vibrant LCD display shows polar pattern and currently selected control level
Studio-quality vivid recording / playback
Desktop stand and microphone stand installation adapter
Also available for IOS devices via Apple Camera Connection Kit (sold separately)

■ Technical specifications of Uber Mic
Type 3 Capsule Capacitor / USB Microphone
Capsule size 16 mm
Directional figure 8, cardioid, omni, stereo
Frequency characteristics 30 Hz --20 kHz
Sensitivity -45 dB (0 dB = 1 V / Pa @ 1 k Hz)
SNR 110 dB
Maximum SPL 120 dB (THD <1%, 1 kH z)
Headphone output impedance 10 Ω
Headphone output power 30 mW (@ 48 Ω)
Headphone output THD 0.03%
Headphone output frequency characteristics 20 Hz to 20 kHz
Headphone output SNR 110 dB
Connector 3.5 mm TRS / Stereo Headphone Output x 1
Via mini USB x 1
-27 Mounting point x 1
Power via mini USB
Size 11.4 x 27.4 cm (diameter x height: with stand)
Weight 1.8 kg (microphone & stand), 0.7 kg (microphone), 1.0 kg (stand)

Operating environment of Uber Mic
Windows: 7 (32 / 64bit) or above
macOS: 10.10.5 and above
Driver for Windows
https://m-audio.com/support/download/drivers/install-m-audio-uber-mic-1.0.2
