Libec / NX-100C

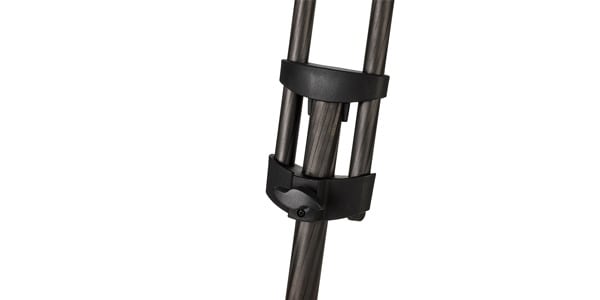

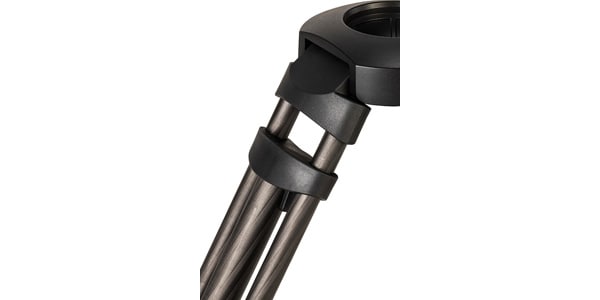

グランドスプレッダータイプの超軽量三脚。ヘッドはワンタッチ着脱プレートを配したNH10を採用。上段のパイプの幅を広く取ることでねじれ剛性を高めてあり、耐荷重性能も高い構造になっています。

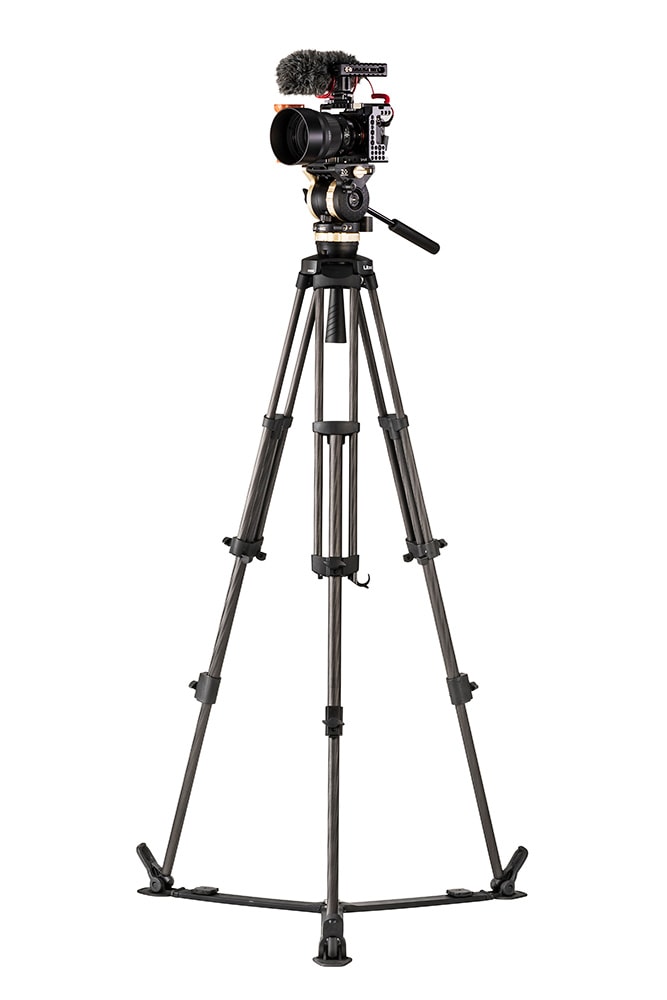

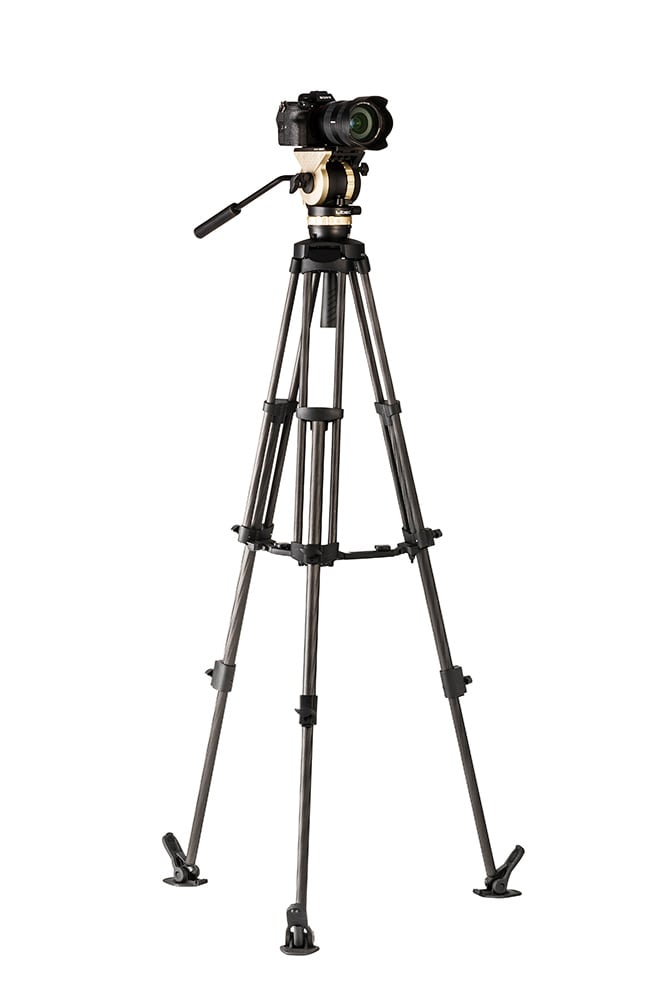

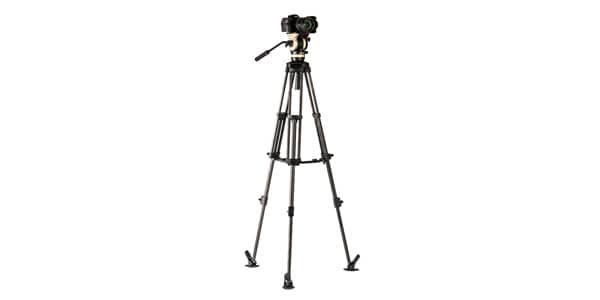

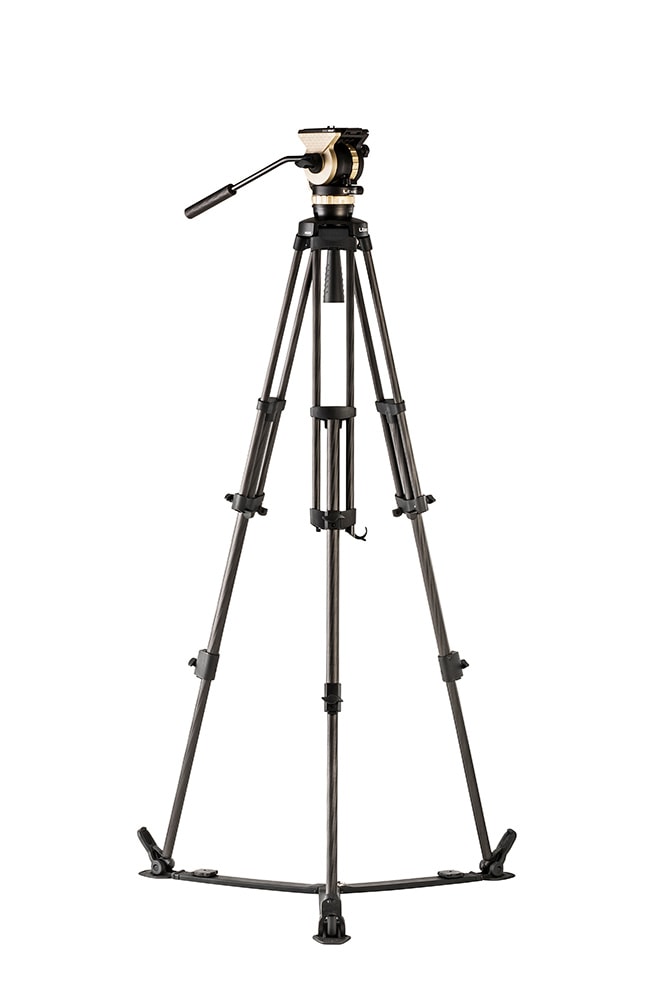

■ Tripod for video camera, ground spreader type
■ System configuration

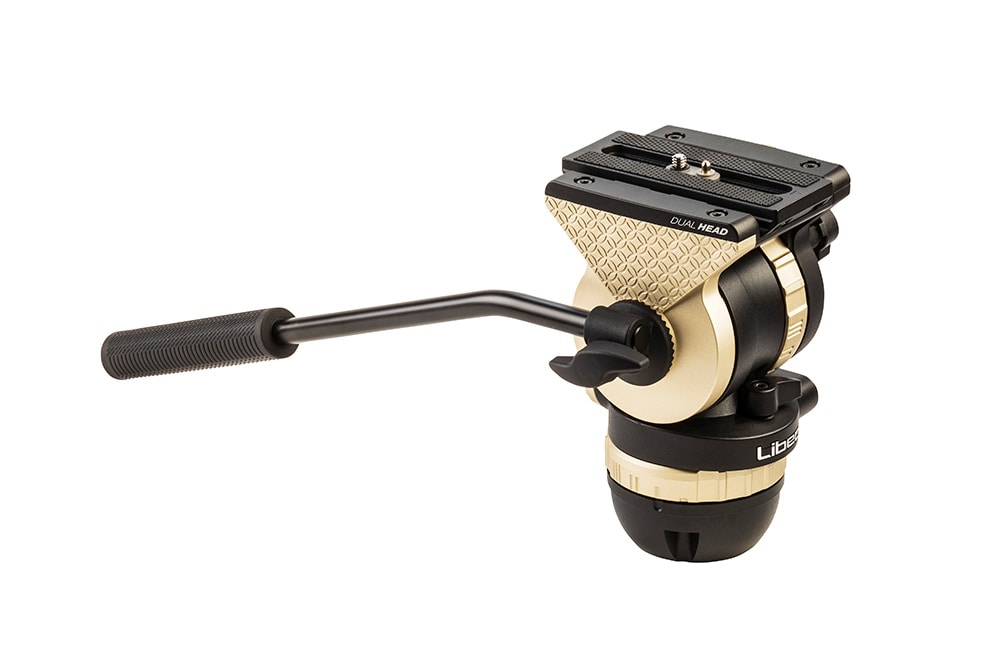

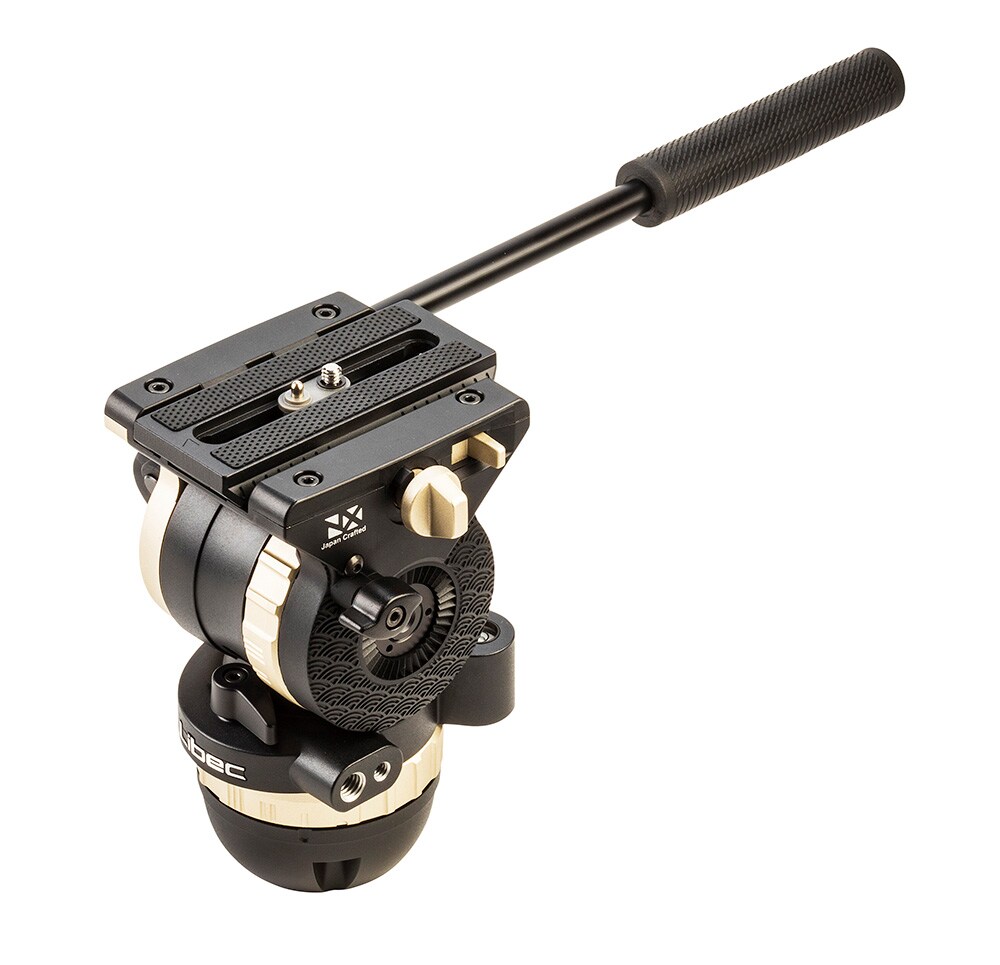

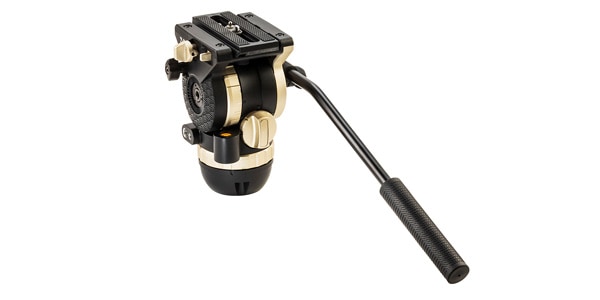

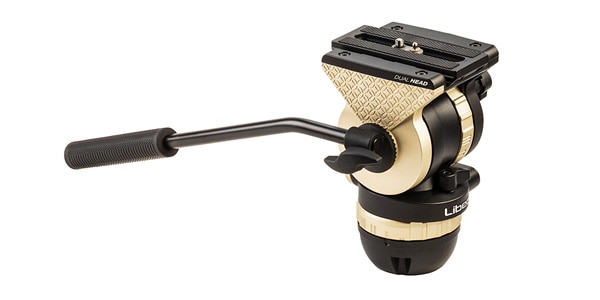

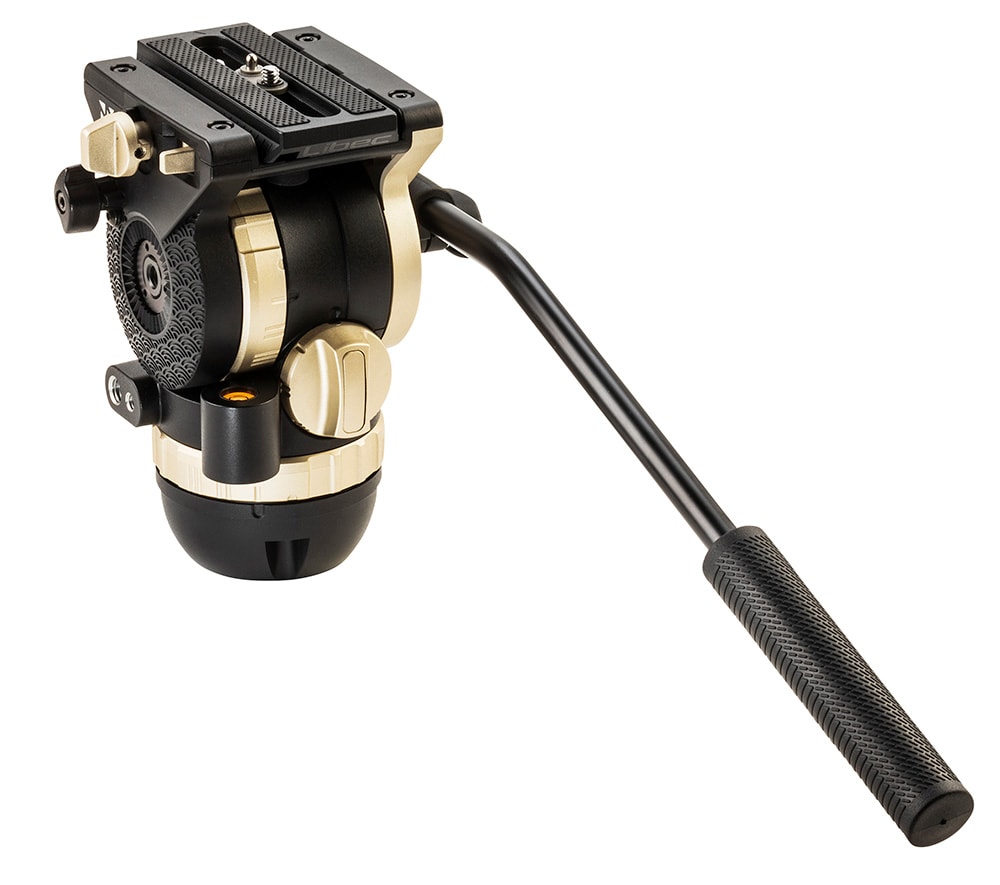

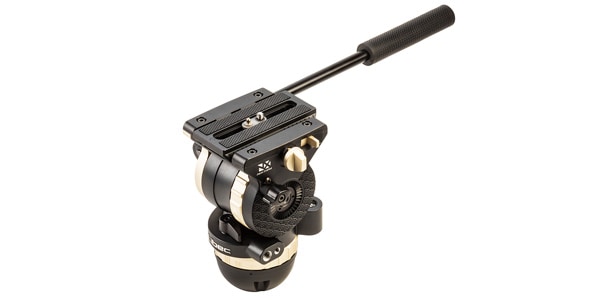

Head: NH10
Spreader: SP-1B
Tripod: RT20C

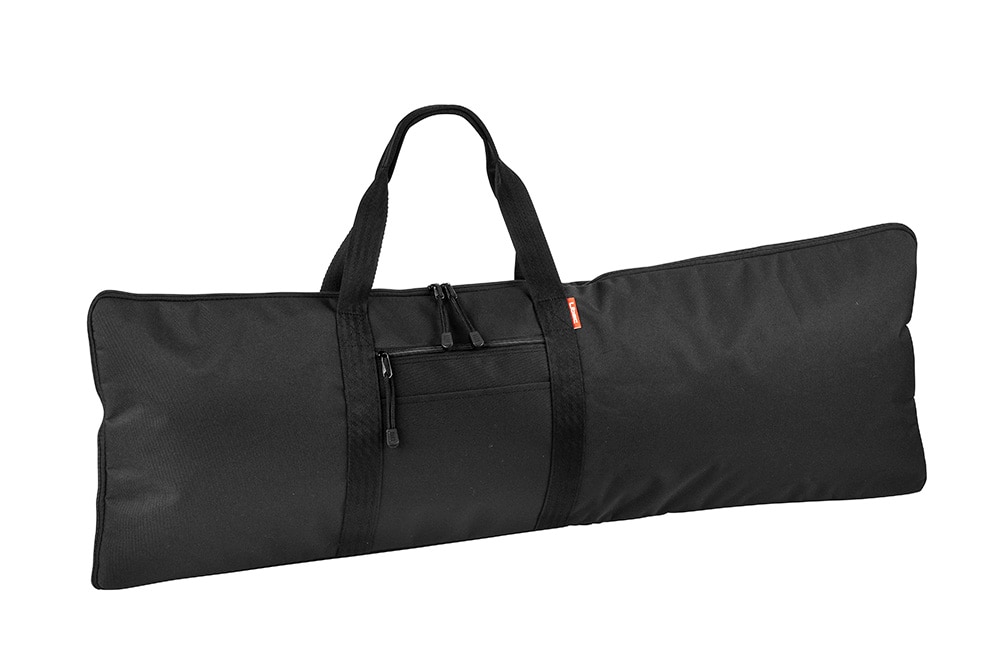

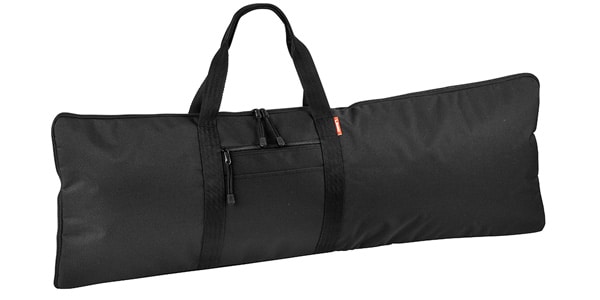

Case: RC-20
■ Load capacity range: 0-2.5 kg (C.G.55 mm)
■ Maximum loading weight: 4kg
■ Counterbalance method:
Staged counter balance
■ Counter balance switching: 0 + 5 steps
■ Pandrag switching: 0 + 3 stages
■ Tilt drag switching: 0 + 3 steps
■ Drag mechanism: Metal laminating unit
■ Tilt angle: +90°/-70°
■ Usable temperature; -40°C to +60°C
■ Usable temperature: -40°C to +60°C
■ Level: With LED lighting
■ Camera plate: Slide plate
Compatible with Manfrotto/Sachtler
■ Camera plate movement width: +/- 30mm
■ Camera mounting: 1/4" screw + video boss
■ Accessory port:
1/4" screw hole and 1 3/8" screw hole each
■ Spare screws: 1/4" screw and 3/8" screw each

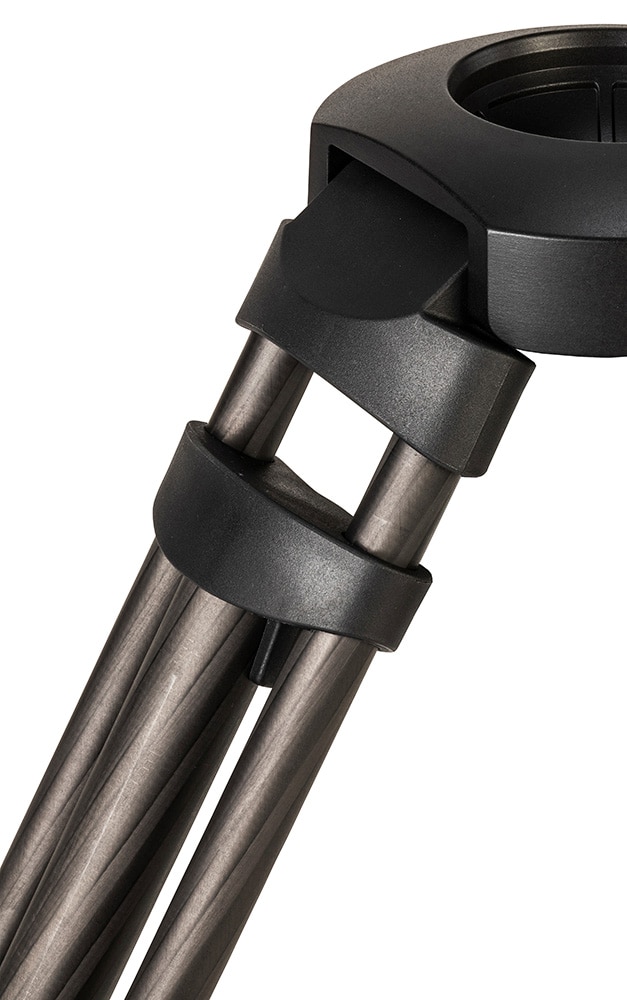

■ Pipe material: Carbon
■ Number of tripod steps: 3 steps
■ SIZE:
Height: 53-168 cm

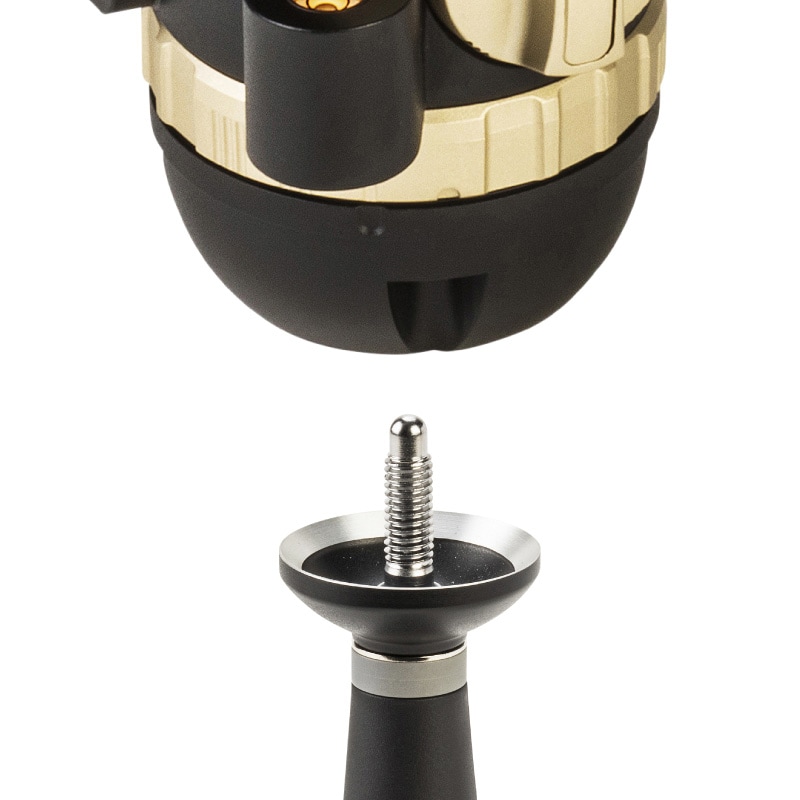

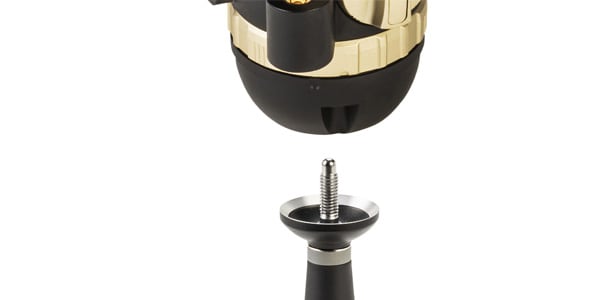

Ball diameter 75 mm
Weight: 4.1 kg
